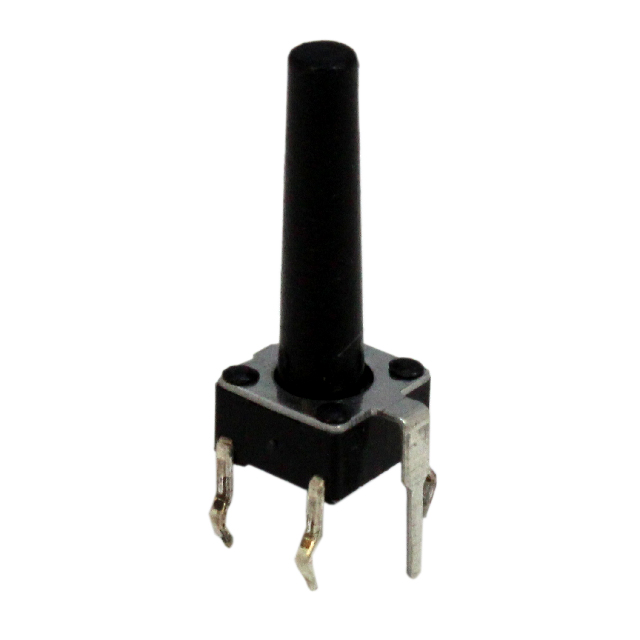

CT1102P17 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Actuator Material | Switch Travel | Operating Force | Mounting Type | Actuator Type | Termination Style | Contact Rating @ Voltage | Actuator Orientation | Switch Function | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Outline [x] | Outline [y] | Illumination | Actuator Height off PCB, Vertical [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Nylon 6/6 Polyamide (PA66) | 0.25 mm | 160 gf | Through Hole | Plunger for Cap | PC Pin | 0.05 A 50 VDC | Top Actuated | Off-Mom | SPST-NO | 85 °C | -40 C | 6 mm | 6 mm | Non-Illuminated | 17 mm |
CIT Relay and Switch | Nylon 6/6 Polyamide (PA66) | 0.25 mm | 100 gf | Through Hole | Plunger for Cap | PC Pin | 0.05 A 50 VDC | Top Actuated | Off-Mom | SPST-NO | 85 °C | -40 C | 6 mm | 6 mm | Non-Illuminated | 17 mm |
