504189 Series

Manufacturer: Molex

Catalog

CONN HEADER SMD R/A 18POS 1.25MM

Part	Insulation Material	Connector Type	Mounting Type	Style	Shrouding	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Contact Shape	Termination	Insulation Height	Insulation Height	Fastening Type	Material Flammability Rating	Contact Type	Number of Positions	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Post	Contact Material	Number of Positions Loaded	Insulation Color
Molex 5041891870	Glass Filled Nylon Polyamide (PA)	Header	Right Angle Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	0.049 in	1.25 mm	2	Rectangular	Solder	0.241 in	6.13 mm	Latch Lock	UL94 V-0	Male Blade	18	39.4 µin	1 µm	Tin	Brass	All	Natural

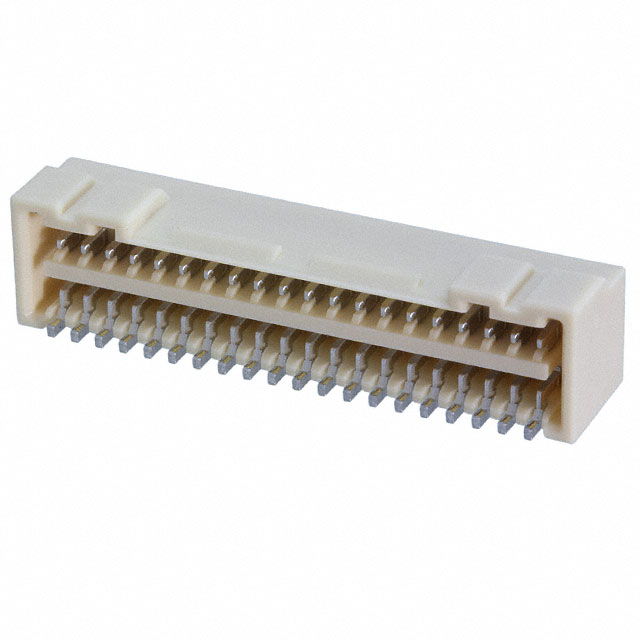

Molex 5041894070	Glass Filled Nylon Polyamide (PA)	Header	Right Angle Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	0.049 in	1.25 mm	2	Rectangular	Solder	0.241 in	6.13 mm	Latch Lock	UL94 V-0	Male Blade	40	39.4 µin	1 µm	Tin	Brass	All	Natural
Molex 5041892870	Glass Filled Nylon Polyamide (PA)	Header	Right Angle Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	0.049 in	1.25 mm	2	Rectangular	Solder	0.241 in	6.13 mm	Latch Lock	UL94 V-0	Male Blade	28	39.4 µin	1 µm	Tin	Brass	All	Natural
Molex 5041893270	Glass Filled Nylon Polyamide (PA)	Header	Right Angle Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	0.049 in	1.25 mm	2	Rectangular	Solder	0.241 in	6.13 mm	Latch Lock	UL94 V-0	Male Blade		39.4 µin	1 µm	Tin	Brass	All	Natural
Molex 5041892670	Glass Filled Nylon Polyamide (PA)	Header	Right Angle Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	0.049 in	1.25 mm	2	Rectangular	Solder	0.241 in	6.13 mm	Latch Lock	UL94 V-0	Male Blade	26	39.4 µin	1 µm	Tin	Brass	All	Natural
Molex 5041891670	Glass Filled Nylon Polyamide (PA)	Header	Right Angle Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	0.049 in	1.25 mm	2	Rectangular	Solder	0.241 in	6.13 mm	Latch Lock	UL94 V-0	Male Blade	16	39.4 µin	1 µm	Tin	Brass	All	Natural
Molex 5041893870	Glass Filled Nylon Polyamide (PA)	Header	Right Angle Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	0.049 in	1.25 mm	2	Rectangular	Solder	0.241 in	6.13 mm	Latch Lock	UL94 V-0	Male Blade	38	39.4 µin	1 µm	Tin	Brass	All	Natural

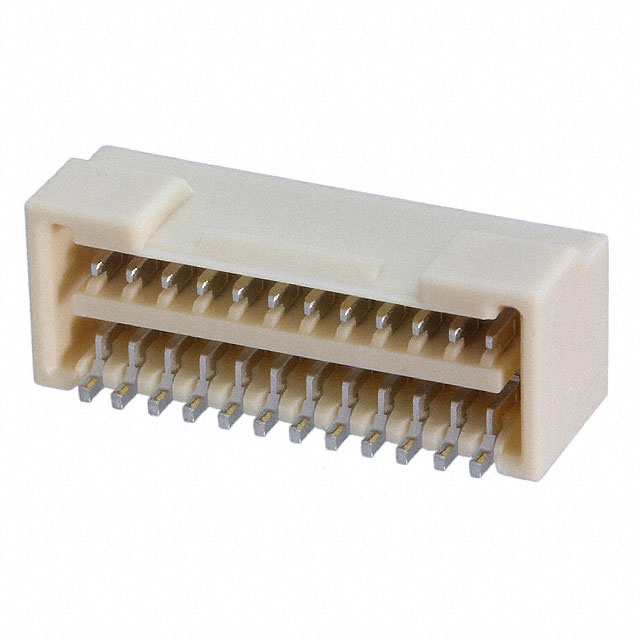

Molex 5041892470	Glass Filled Nylon Polyamide (PA)	Header	Right Angle Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	0.049 in	1.25 mm	2	Rectangular	Solder	0.241 in	6.13 mm	Latch Lock	UL94 V-0	Male Blade	24	39.4 µin	1 µm	Tin	Brass	All	Natural
Molex 5041892270	Glass Filled Nylon Polyamide (PA)	Header	Right Angle Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	0.049 in	1.25 mm	2	Rectangular	Solder	0.241 in	6.13 mm	Latch Lock	UL94 V-0	Male Blade	22	39.4 µin	1 µm	Tin	Brass	All	Natural
