2.50mm Pitch, Mini-Lock PCB Header, Single Row, Right-Angle, Surface Mount, Tin Plating, 3 Circuits, Black, Tape and Reel
2.50mm Pitch, Mini-Lock PCB Header, Single Row, Right-Angle, Surface Mount, Tin Plating, 3 Circuits, Black, Tape and Reel
2.50mm Pitch, Mini-Lock PCB Header, Single Row, Right-Angle, Surface Mount, Tin Plating, 3 Circuits, Black, Tape and Reel
| Part | Shrouding | Connector Type | Number of Positions | Features | Insulation Color | Contact Material | Termination | Number of Positions Loaded | Contact Type | Current Rating (Amps) | Insulation Height [z] | Insulation Height [z] | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Contact Finish - Post | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Voltage Rating | Mounting Type | Style | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | |||||||||||||||||||||||||||||||
 Molex | Shrouded - 4 Wall | Header | 6 | Solder Retention | Natural | Brass | Solder | All | Male Pin | Varies by Wire Gauge | 7 mm | 0.276 in | Glass Filled Nylon Polyamide (PA) | 1 µm | 39.4 µin | 1 | Tin | Locking Ramp | -40 °C | 105 ░C | 2.5 mm | 0.098 in | 250 VAC | Surface Mount Right Angle | Board to Cable/Wire | UL94 V-0 | 1 çm | 39.4 çin | Square | ||

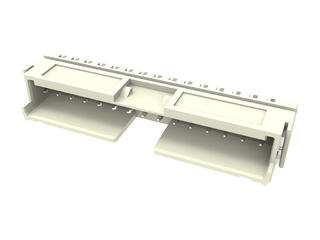

 Molex | Shrouded - 4 Wall | Header | 15 | Solder Retention | Natural | Brass | Solder | All | Male Pin | Varies by Wire Gauge | Glass Filled Nylon Polyamide (PA) | 1 µm | 39.4 µin | 1 | Tin | Locking Ramp | -55 °C | 105 ░C | 2.5 mm | 0.098 in | 250 VDC | Surface Mount Right Angle | Board to Cable/Wire | UL94 V-0 | 1 çm | 39.4 çin | Square | 7.3 mm | 0.287 in | ||
Molex | Shrouded - 4 Wall | Header | 12 | Solder Retention | Natural | Brass | Solder | All | Male Pin | Varies by Wire Gauge | Glass Filled Nylon Polyamide (PA) | 1 µm | 39.4 µin | 1 | Tin | Locking Ramp | -55 °C | 105 ░C | 2.5 mm | 0.098 in | 250 VDC | Surface Mount Right Angle | Board to Cable/Wire | UL94 V-0 | 1 çm | 39.4 çin | Square | 7.3 mm | 0.287 in | ||

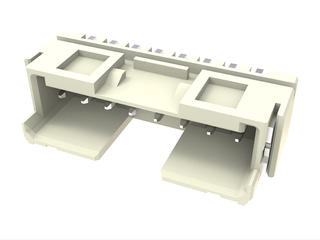

 Molex | Shrouded - 4 Wall | Header | 8 | Solder Retention | Natural | Brass | Solder | All | Male Pin | Varies by Wire Gauge | Glass Filled Nylon Polyamide (PA) | 1 µm | 39.4 µin | 1 | Tin | Locking Ramp | -55 °C | 105 ░C | 2.5 mm | 0.098 in | 250 VDC | Surface Mount Right Angle | Board to Cable/Wire | UL94 V-0 | 1 çm | 39.4 çin | Square | 7.3 mm | 0.287 in | ||
Molex | |||||||||||||||||||||||||||||||
Molex | Shrouded - 4 Wall | Header | Solder Retention | Natural | Brass | Solder | All | Male Pin | Varies by Wire Gauge | 7 mm | 0.276 in | Glass Filled Nylon Polyamide (PA) | 1 µm | 39.4 µin | 1 | Tin | Locking Ramp | -40 °C | 105 ░C | 2.5 mm | 0.098 in | 250 VAC | Surface Mount Right Angle | Board to Cable/Wire | UL94 V-0 | 1 çm | 39.4 çin | Square | |||
 Molex | |||||||||||||||||||||||||||||||
Molex | |||||||||||||||||||||||||||||||
Molex |
