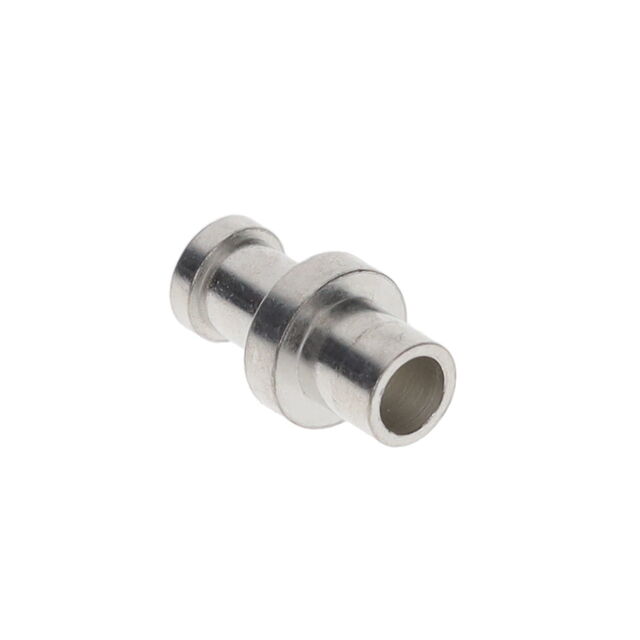

2816-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
TERM TURRET SNG
| Part | Staking Side ID | Staking Side ID | Terminal Type | Insulation | Contact Finish | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Length - Above Board [x] | Length - Above Board [x] | Staking Side OD [diameter] | Staking Side OD [diameter] | Board Thickness | Board Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Number of Turrets | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Length - Overall [x] | Length - Overall [x] | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 2.11 mm | 0.083 in | Single End | Non-Insulated | Tin | 0.073 in | 1.85 mm | 0.116 in | 2.95 mm | Brass Alloy | 0.187 in | 4.75 mm | 2.84 mm | 0.112 " | 1.57 mm | 0.062 " | 0.171 " | 4.34 mm | Single | 200 Áin | 5.08 Ám | 0.109 " | 2.77 mm | 7.52 mm | 0.296 in | Through Hole | Swage |
