794492 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

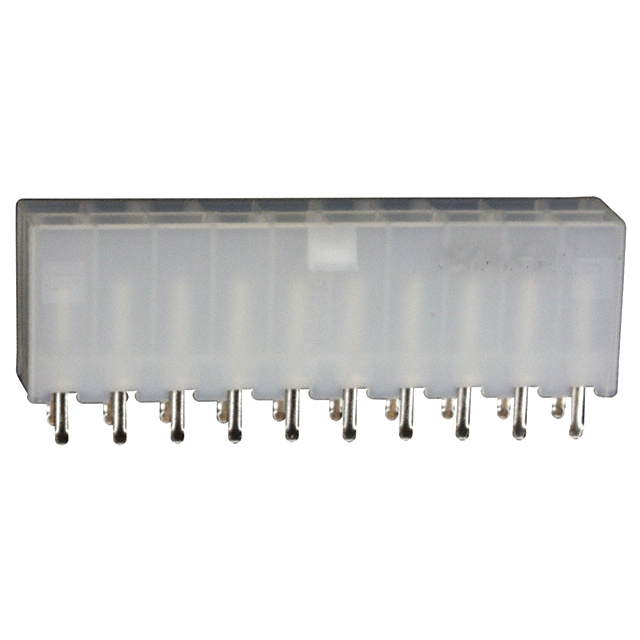

CONN HEADER VERT 20POS 4.2MM
| Part | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Number of Positions | Material Flammability Rating | Insulation Color | Insulation Material | Number of Rows [custom] | Row Spacing - Mating | Row Spacing - Mating | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Shape | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Voltage Rating | Fastening Type | Style | Contact Type | Contact Material | Connector Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | All | 20 | UL94 V-0 | Natural | Nylon Polyamide (PA) | 2 | 0.165 in | 4.2 mm | 12.8 mm | 0.504 " | -55 C | 105 ░C | Through Hole | 0.165 in | 4.2 mm | Tin-Lead | Square | Tin-Lead | 118.1 µin | 3 µm | Shrouded - 4 Wall | 600 VAC | Locking Ramp | Board to Board Cable | Male Pin | Copper Alloy | Header | Solder |
