MS3122E14 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT FMALE 5POS GOLD CRIMP

Part	Connector Type	Fastening Type	Primary Material	Applications	Shell Size - Insert Width	Shell Size - Insert Length	Orientation	Ingress Protection	Number of Positions	Qualification	Contact Material	Termination	Shell Finish	Mounting Type	Mounting Feature	Color	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Shell Material	Contact Finish - Mating	Grade	Insert Material	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Contact Size	Note	Contact Type	Type	Contact Shape	Housing Color	Voltage Rating	Current Rating Options
Amphenol Aerospace Operations MS3122E14-5S	Female Sockets Receptacle	Bayonet Lock	Metal	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	5 mm	14 mm	N (Normal)	Environment Resistant	5	MIL-DTL-26482 Series I	Copper Alloy	Crimp	Cadmium Olive Drab Chromate	Panel Mount	Flange	Olive Drab	125 °C	-55 °C	Unshielded	Aluminum	Gold	Military	Neoprene
Amphenol Aerospace Operations MS3122E14-15PY	Male Pins Receptacle	Bayonet Lock	Metal	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military			Y	Environment Resistant	15	MIL-DTL-26482 Series I	Copper Alloy	Crimp	Cadmium Olive Drab Chromate	Panel Mount	Flange	Olive Drab	125 °C	-55 °C	Unshielded	Aluminum	Gold	Military	Neoprene	14 S	15
Amphenol Aerospace Operations MS3122E14-5PX

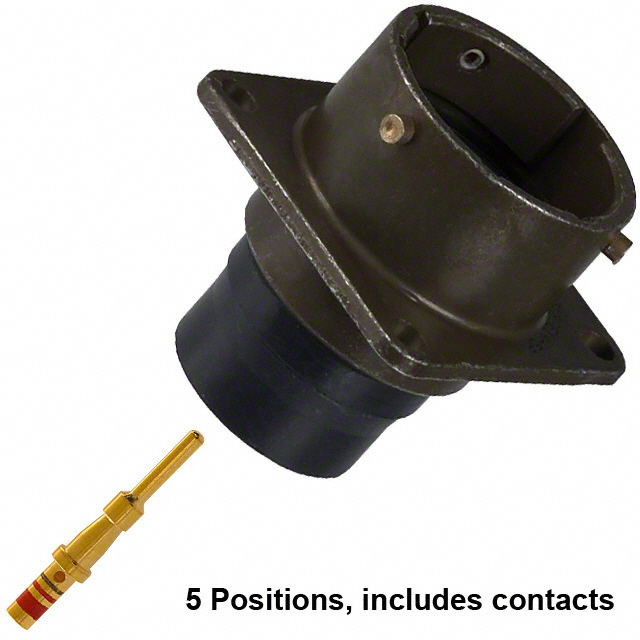

Amphenol Aerospace Operations MS3122E14-5P	Male Pins Receptacle	Bayonet Lock	Metal		5 mm	14 mm	N (Normal)	Environment Resistant	5	MIL-DTL-26482 Series I		Crimp	Cadmium Olive Drab Chromate	Panel Mount	Flange	Olive Drab	125 °C	-55 °C	Unshielded	Aluminum	Gold	Military
Amphenol Aerospace Operations MS3122E14-5PW
Amphenol Aerospace Operations MS3122E14-18PY	Male Pins Receptacle	Bayonet Lock	Metal	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military			Y	Environment Resistant	18	MIL-DTL-26482 Series I	Copper Alloy	Crimp	Cadmium Olive Drab Chromate	Panel Mount	Flange	Olive Drab	125 °C	-55 °C	Unshielded	Aluminum	Gold	Military	Neoprene	14 S	18
Amphenol Aerospace Operations MS3122E14-5S(LC)

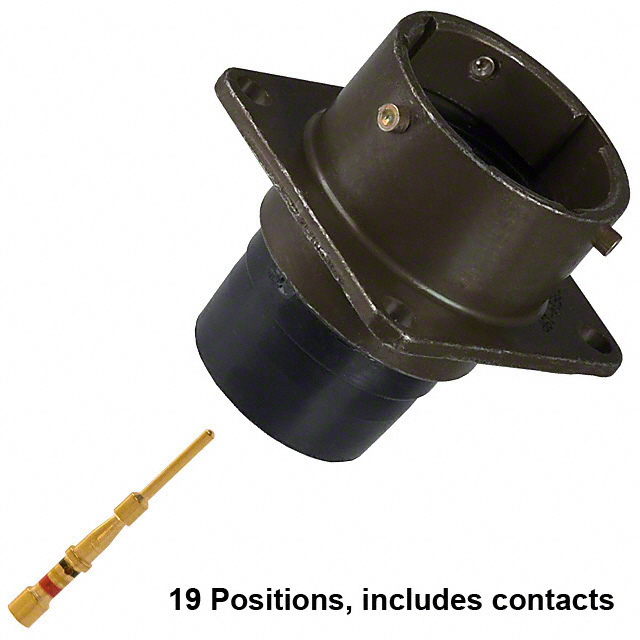

Amphenol Aerospace Operations MS3122E14-19PLC	Receptacle Housing	Bayonet Lock					N (Normal)	Environment Resistant	19	MIL-DTL-26482 Series I			Cadmium Chromate	Panel Mount	Flange		125 °C	-55 °C	Unshielded	Aluminum		Military	Neoprene	14 S	19	20	Contacts Not Included	Crimp	For Male Pins	Circular	Olive Drab
Amphenol Aerospace Operations MS3122E14-12PW
Amphenol Aerospace Operations MS3122E14-12S	Female Sockets Receptacle	Bayonet Lock	Metal	Aerospace Industrial Instrumentation Mass Transit Military	12 mm	14 mm	N (Normal)	Environment Resistant	12	MIL-DTL-26482 Series I	Copper Alloy	Crimp	Cadmium Olive Drab Chromate	Panel Mount	Flange	Olive Drab	125 °C	-55 °C	Unshielded	Aluminum	Gold	Military	Neoprene									600 V	13A 7.5A
