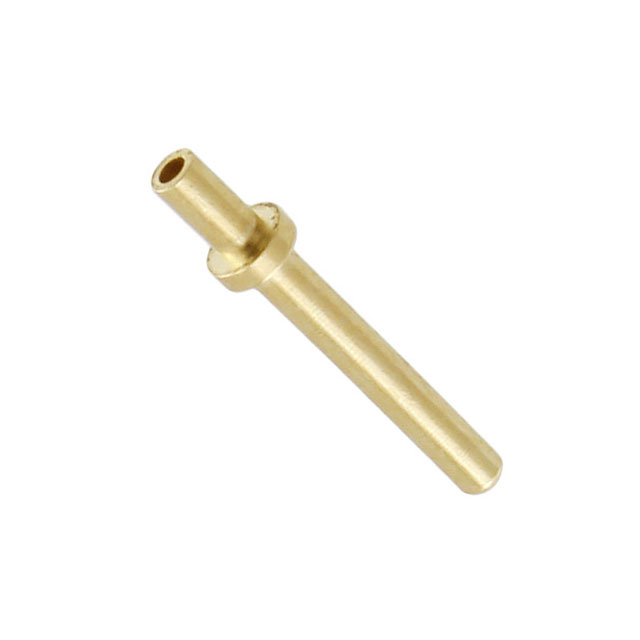

3122-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall | Length - Overall | Terminal Type | Contact Material | Board Thickness | Board Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Style | Length - Above Flange [x] | Length - Above Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Termination | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | 0.043 in | 1.09 mm | 9.7 mm | 0.382 " | PC Pin | Brass | 1.57 mm | 0.062 " | 2.08 mm | 0.082 " | Single End | 7.11 mm | 0.28 in | 1.78 mm | 0.07 in | Non-Insulated | Through Hole | 0.04 in | 1.02 mm | Swage | Tin |
 Mill-Max Manufacturing Corp. | 10 Áin | 0.25 Ám | 0.043 in | 1.09 mm | 9.7 mm | 0.382 " | PC Pin | Brass Alloy | 1.57 mm | 0.062 " | 2.08 mm | 0.082 " | Single End | 7.11 mm | 0.28 in | 1.77 mm | 0.07 in | Non-Insulated | Through Hole | 0.04 in | 1.02 mm | Swage | Gold |
