SM03F Series

Catalog

BOARD EDGE 2.92 MM (DC TO 40 GHZ

Part	Body Finish	Body Material	Center Contact Plating	Connector Style [x]	Number of Ports	Housing Color	Mounting Type	Contact Termination	Impedance	Shield Termination	Frequency - Max [Max]	Center Contact Material	Connector Type	Fastening Type

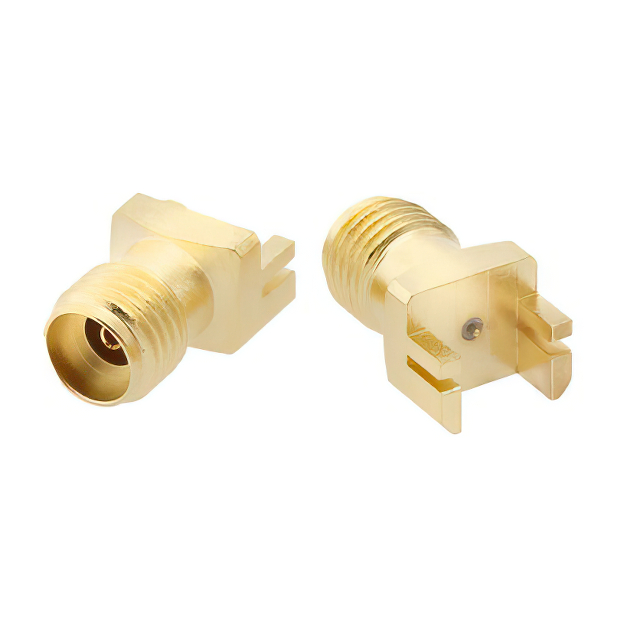

WITHWAVE CO LTD SM03FS008	Gold	Brass	Gold	2.92 mm	1	Gold	Board Edge End Launch	Solder	50 Ohms	Solder	40 GHz	Beryllium Copper	Female Socket Jack	Threaded
WITHWAVE CO LTD SM03FS009	Gold	Brass	Gold	2.92 mm	1	Gold	Board Edge End Launch	Solder	50 Ohms	Solder	40 GHz	Beryllium Copper	Female Socket Jack	Threaded
WITHWAVE CO LTD SM03FS013	Gold	Brass	Gold	2.92 mm	1	Gold	Board Edge End Launch	Solder	50 Ohms	Solder	40 GHz	Beryllium Copper	Female Socket Jack	Threaded
WITHWAVE CO LTD SM03FS012	Gold	Brass	Gold	2.92 mm	1	Gold	Board Edge End Launch	Solder	50 Ohms	Solder	40 GHz	Beryllium Copper	Female Socket Jack	Threaded
WITHWAVE CO LTD SM03FS011	Gold	Brass	Gold	2.92 mm	1	Gold	Board Edge End Launch	Solder	50 Ohms	Solder	40 GHz	Beryllium Copper	Female Socket Jack	Threaded
WITHWAVE CO LTD SM03FS015	Gold	Brass	Gold	2.92 mm	1	Gold	Board Edge End Launch	Solder	50 Ohms	Solder	40 GHz	Beryllium Copper	Female Socket Jack	Threaded

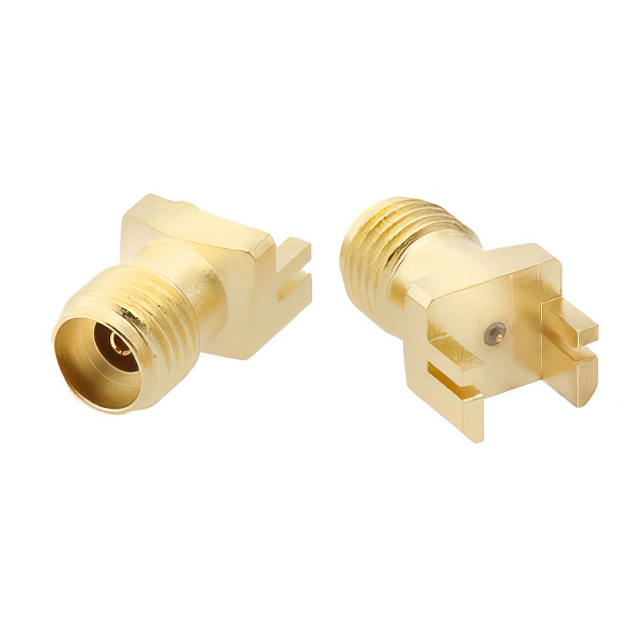

WITHWAVE CO LTD SM03FS007	Gold	Brass	Gold	2.92 mm	1	Gold	Board Edge End Launch	Solder	50 Ohms	Solder	40 GHz	Beryllium Copper	Female Socket Jack	Threaded
WITHWAVE CO LTD SM03FS014	Gold	Brass	Gold	2.92 mm	1	Gold	Board Edge End Launch	Solder	50 Ohms	Solder	40 GHz	Beryllium Copper	Female Socket Jack	Threaded
