G9EJ Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

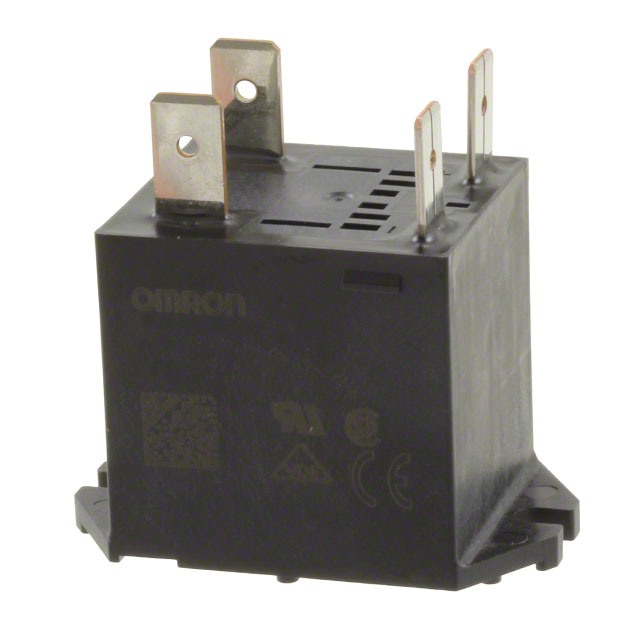

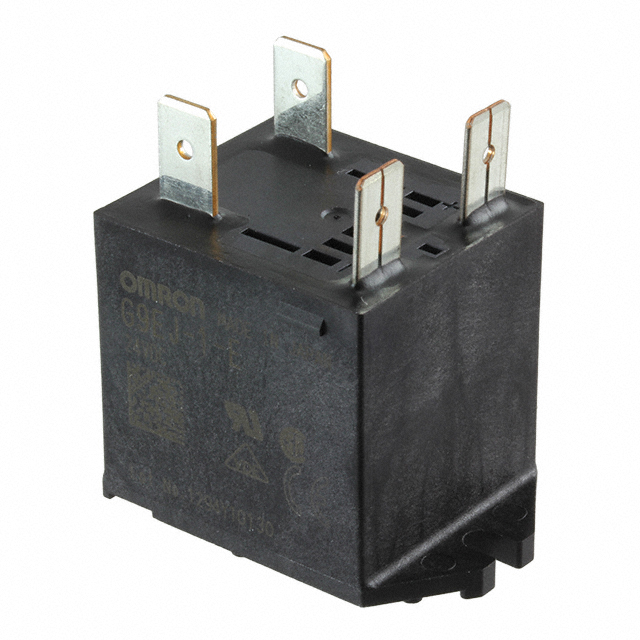

RELAY AUTOMOTIVE SPST 15A 12V
| Part | Operate Time | Coil Resistance | Coil Current | Release Time | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Must Release Voltage | Termination Style | Coil Voltage | Contact Form | Mounting Type | Coil Power | Must Operate Voltage | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 50 ms | 120 Ohms | 100 mA | 30 ms | 400 VDC | -40 °C | 70 °C | Non Latching | 0.6 VDC | Plug In Quick Connect - 0.250" (6.3mm) | 12 VDC | SPST-NO (1 Form A) | Chassis Mount | 1.2 W | 7.2 VDC | 15 A |
 Omron Electronics Inc-EMC Div | 50 ms | 480 Ohms | 50 mA | 30 ms | 400 VDC | -40 °C | 70 °C | Non Latching | 1.2 VDC | Plug In Quick Connect - 0.250" (6.3mm) | 24 VDC | SPST-NO (1 Form A) | Chassis Mount | 1.2 W | 14.4 VDC | 15 A |
