Chip LED with reflector, Yellow Chip LED
Description
AI

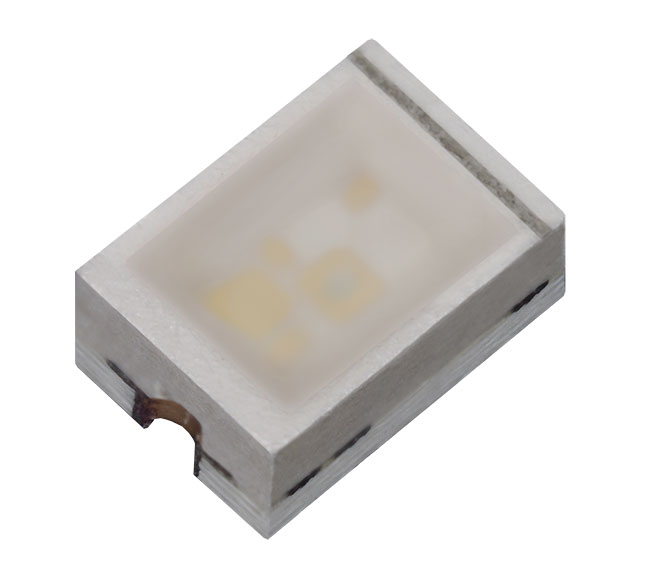

SML-01 series is a reflector type surface mount LED.
Beta
⌘K
Chip LED with reflector, Yellow Chip LED
Chip LED with reflector, Yellow Chip LED
| Part | Height (Max) [z] | Lens Size [y] | Lens Size [x] | Wavelength - Dominant | Voltage - Forward (Vf) (Typ) | Lens Style | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Configuration | Millicandela Rating | Current - Test | Lens Transparency | Color | Package / Case | Lens Color | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 1.5 mm | 1.6 mm | 2.3 mm | 624 nm | 2 V | Rectangle with Flat Top | Surface Mount | 3 mm | 2 mm | Standard | 220 mcd | 20 mA | Clear | Red | 1208 (3020 Metric) | Colorless | 3020(1208) |
 Rohm Semiconductor | 1.5 mm | 1.6 mm | 2.3 mm | 590 nm | 2.1 V | Rectangle with Flat Top | Surface Mount | 3 mm | 2 mm | 250 mcd | 20 mA | Yellow | 1208 (3020 Metric) | 1208 |
