PEH169S Series
Manufacturer: KEMET
Beta
⌘K

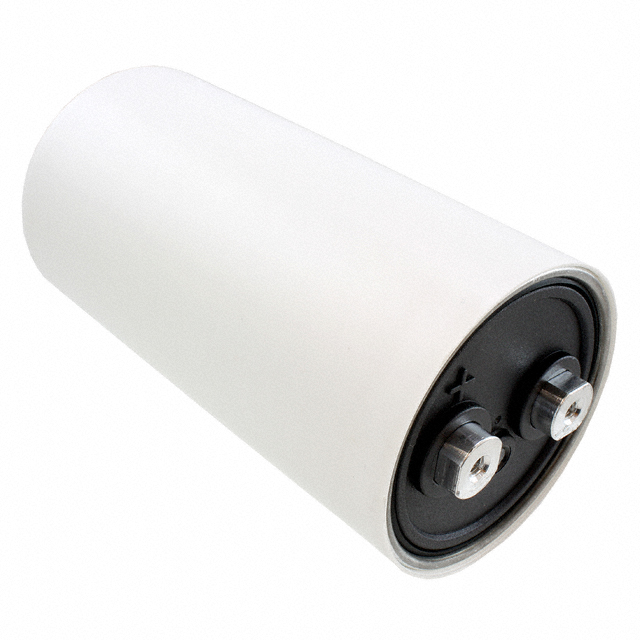

CAP ALUM 8800UF 20% 250V SCREW
| Part | Size / Dimension [diameter] | Size / Dimension [diameter] | Lifetime @ Temp. | Ripple Current @ Low Frequency | Capacitance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Polarization | Lead Spacing | Lead Spacing | Mounting Type | Tolerance | Impedance | ESR (Equivalent Series Resistance) | Applications | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 76.6 mm | 3.016 " | 24000 Hrs | 17.3 A | 8800 µF | 5.875 " | 149.23 mm | 85 °C | -40 C | Radial Can - Screw Terminals | Polar | 1.26 in | 32 mm | Chassis Mount | 20 % | 9 mOhms | 15 mOhm | General Purpose | 250 V |
