FLKMS Series

Catalog

TERMINAL BLOCK INTERFACE MODULES FLKMS 14/ 8IM/LA/PLC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Control Side Cable Retainer	Width	Width [x]	Wire Gauge [Max]	Wire Gauge [Min]	Positions / Poles	Current Rating (Per Contact)	Process Side Connection	Control Side Connection	Features	Length	Length	Width [x]	Voltage - Rated	Length [x]	Positions / Poles [custom]

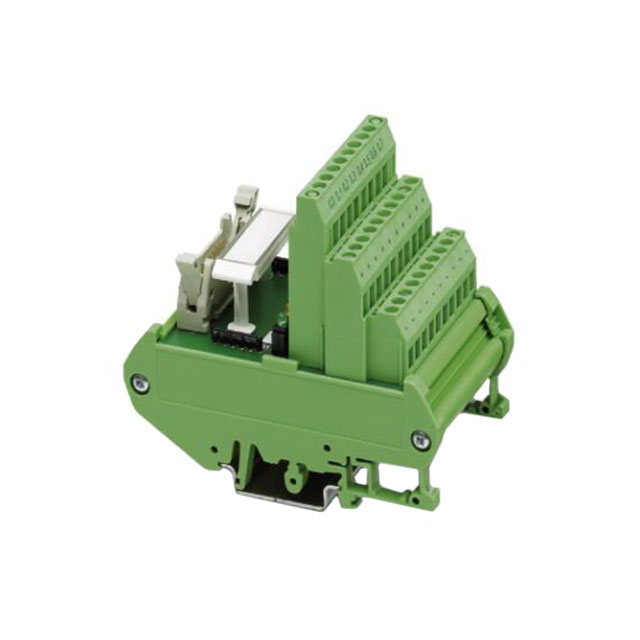

Phoenix Contact 2284536	-20 ░C	50 °C	Latches	90 mm	3.543 "	24 AWG	12 AWG	14	1 A	Terminal Blocks - Screw Connection	Rectangular Male	Label Holder LED	2.244 in	57 mm

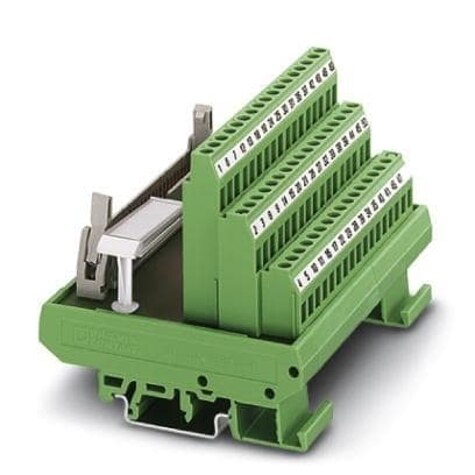

Phoenix Contact 2281584	-20 ░C	50 °C	Latches		3.031 "	24 AWG	12 AWG	40	1 A	Terminal Blocks - Screw Connection	Rectangular Male	Label Holder		79 mm	76.99 mm	60 VDC	3.11 in
Phoenix Contact 2295936	-20 ░C	50 °C	Jackscrew Socket	90 mm	3.543 "	24 AWG	14 AWG		2.5 A	Terminal Blocks - Spring Connection	D-Sub Female	Label Holder	2.638 in	67 mm		24 VAC		25

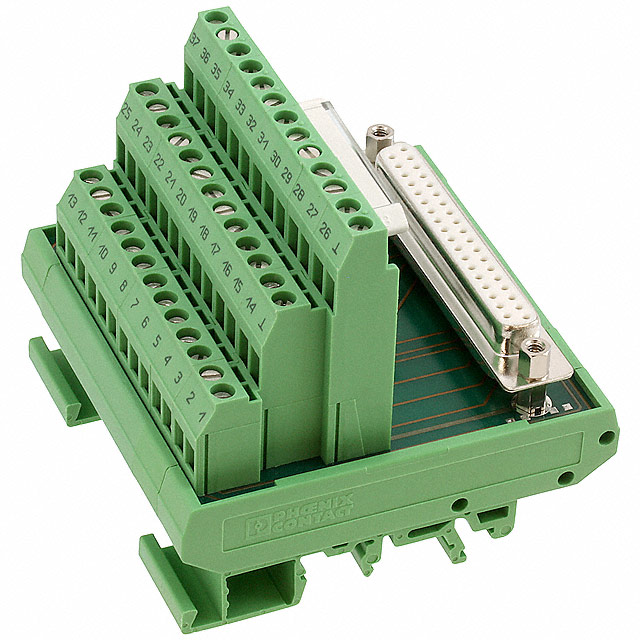

Phoenix Contact 2294364	-20 ░C	50 °C	Jackscrew Socket		3.031 "	24 AWG	12 AWG	37	2.5 A	Terminal Blocks - Screw Connection	D-Sub Female			79 mm	76.99 mm	125 V	3.11 in
