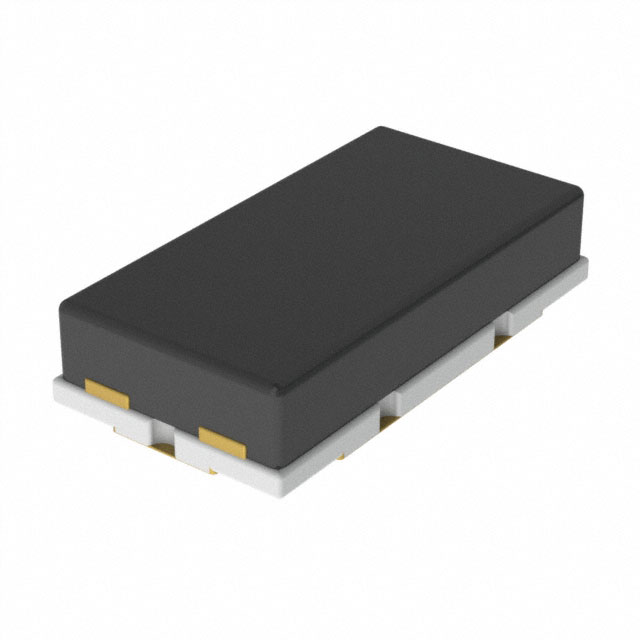

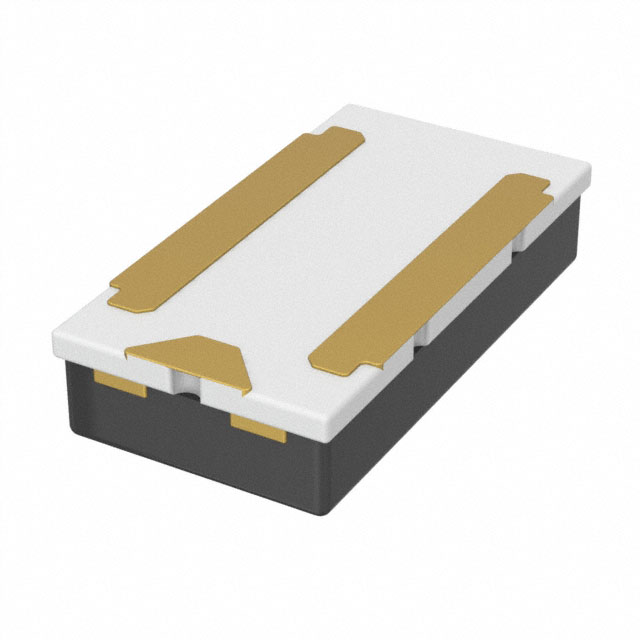

FR-9550 Series

Catalog

SMD FUSE RATED CURRENT 30A/62VDC

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Response Time	Fuse Type	Applications	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Approval Agency	Features [Max]	Features [Min]	Features	Voltage Rating - DC
Delta Electronics/Cyntec FR-9550-30A-C14-B	0.374 in	2.3 mm	0.197 "	0.091 in	5 mm	9.5 mm	Fast Blow	Board Mount	Battery Protection	80 A	30 A	Nonstandard SMD	65 °C	-10 °C	Surface Mount	TUV UL	62 V	39.6 V	Triggerable	62 VDC
Delta Electronics/Cyntec FR-9550-30A-C01-B	0.374 in	2.3 mm	0.197 "	0.091 in	5 mm	9.5 mm	Fast Blow	Board Mount	Battery Protection	80 A	30 A	Nonstandard SMD	65 °C	-10 °C	Surface Mount	TUV UL			4 ~ 6.6V Triggerable	62 VDC
Delta Electronics/Cyntec FR-9550-30A-C10-B	0.374 in	2.3 mm	0.197 "	0.091 in	5 mm	9.5 mm	Fast Blow	Board Mount	Battery Protection	80 A	30 A	Nonstandard SMD	65 °C	-10 °C	Surface Mount	TUV UL	46.9 V	28 V	Triggerable	62 VDC
Delta Electronics/Cyntec FR-9550-30A-C04-B	0.374 in	2.3 mm	0.197 "	0.091 in	5 mm	9.5 mm	Fast Blow	Board Mount	Battery Protection	80 A	30 A	Nonstandard SMD	65 °C	-10 °C	Surface Mount	TUV UL				62 VDC
Delta Electronics/Cyntec FR-9550-30A-C07-B	0.374 in	2.3 mm	0.197 "	0.091 in	5 mm	9.5 mm	Fast Blow	Board Mount	Battery Protection	80 A	30 A	Nonstandard SMD	65 °C	-10 °C	Surface Mount	TUV UL	31.5 V	20.2 V	Triggerable	62 VDC
