IRQ-12 Series

Catalog

DC-DC REGULATED POWER SUPPLY MODULE,

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Features	Voltage - Input (Max) [Max]	Supplier Device Package	Mounting Type	Number of Outputs	Control Features	Voltage - Output 1	Voltage - Input (Min) [Min]	Efficiency	Size / Dimension	Size / Dimension	Current - Output (Max) [Max]	Applications	Power (Watts)	Approval Agency	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. IRQ-12/12.5-W80PB-C	Isolated Module	85 °C	-40 °C	Quarter Brick	Adjustable Output Baseplate Remote On/Off Remote Sense	160 V	Quarter Brick	Through Hole	1	Active High Enable	12 V	16 V	89 %	0.53 in 1.56 in 2.41 in	13.5 mm 39.6 mm 61.2 mm	12.5 A	ITE (Commercial) Railway	150 W	CE CSA cURus UL	4.242 kV

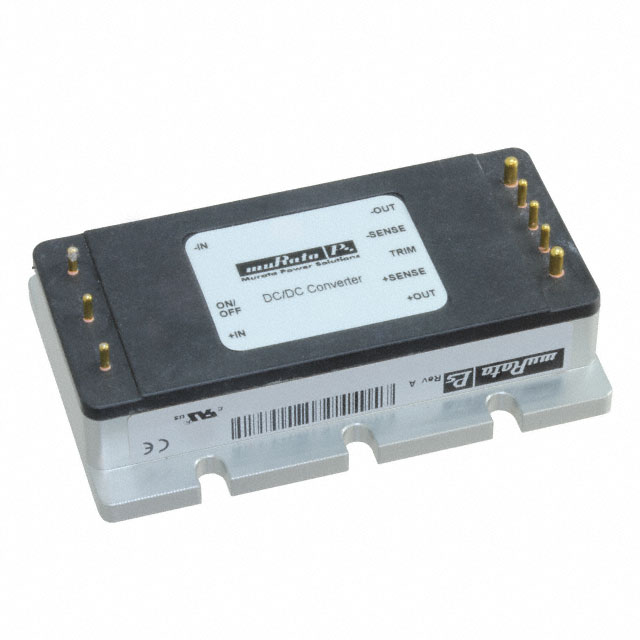

Murata Power Solutions Inc. IRQ-12/8.3-T110NVF-C	Isolated Module	85 °C	-40 °C	1/4 Brick 8-DIP Module	OCP OTP OVP Remote On/Off SCP UVLO	160 V		Through Hole	1	Active Low Enable	12 V	57.6 V				8.3 A	ITE (Commercial) Railway	100 W		3000 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in
Murata Power Solutions Inc. IRQ-12/8.3-T110NF-C	Isolated Module	85 °C	-40 °C	Quarter Brick	OCP OTP OVP Remote On/Off SCP UVLO	160 V		Through Hole	1	Active Low Enable	12 V	57.6 V				8.3 A	ITE (Commercial) Railway	100 W		3000 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in
