302-R14 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

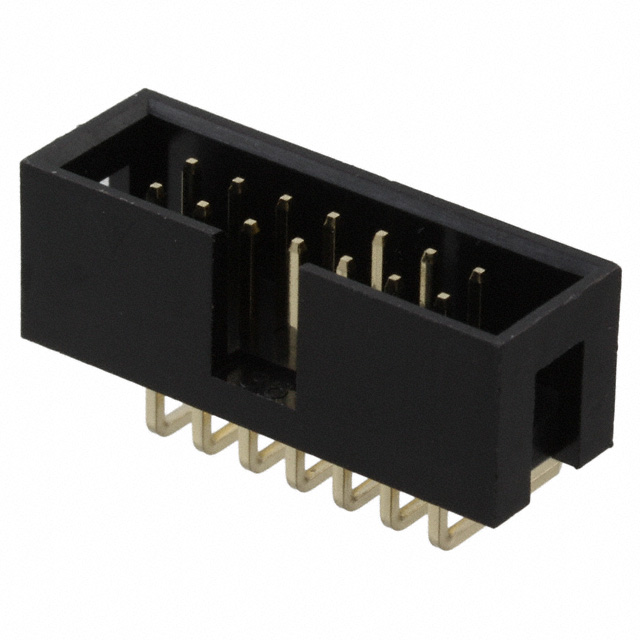

CONN HEADER R/A 14POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Post [x] | Contact Length - Post [x] | Contact Type | Pitch - Mating | Pitch - Mating | Mounting Type | Number of Positions Loaded | Voltage Rating | Contact Finish - Post | Material Flammability Rating | Insulation Color | Contact Finish - Mating | Insulation Material | Termination | Shrouding | Number of Positions | Style | Fastening Type | Contact Material | Current Rating (Amps) | Features | Contact Shape | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.25 µin | 0.032 µm | Header | -40 C | 105 ░C | 0.1 in | 2.54 mm | 0.122 in | 3.1 mm | Male Pin | 0.1 " | 2.54 mm | Right Angle Through Hole | All | 250 V | Gold | UL94 V-0 | Black | Gold | Polyester Glass Filled | Solder | Shrouded - 4 Wall | 14 | Board to Cable/Wire | Push-Pull | Brass | 3 A | Keying Slot | Square | Flash | 0.358 " | 9.1 mm | 2 |
