044432 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 6POS 3MM

Part	Style	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Type	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Termination	Material Flammability Rating	Applications	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Number of Positions	Features	Number of Positions Loaded	Fastening Type	Insulation Height	Insulation Height	Insulation Color	Number of Rows	Shrouding	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape
Molex 0444320652	Board to Board Cable	Glass Filled Nylon Polyamide (PA)	15 µin	0.38 µm	Through Hole	Male Pin	Brass	3 mm	0.118 in	Header	Press-Fit Solder	UL94 V-0	General Purpose Medical Military Telecommunications	0.13 in	3.3 mm	Gold	6	Blind Mating Board Guide	All	Push-Pull	11.6 mm	0.457 in	Black	2	Shrouded - 4 Wall	Tin	0.118 in	3 mm	2.54 µm	100 µin	Square

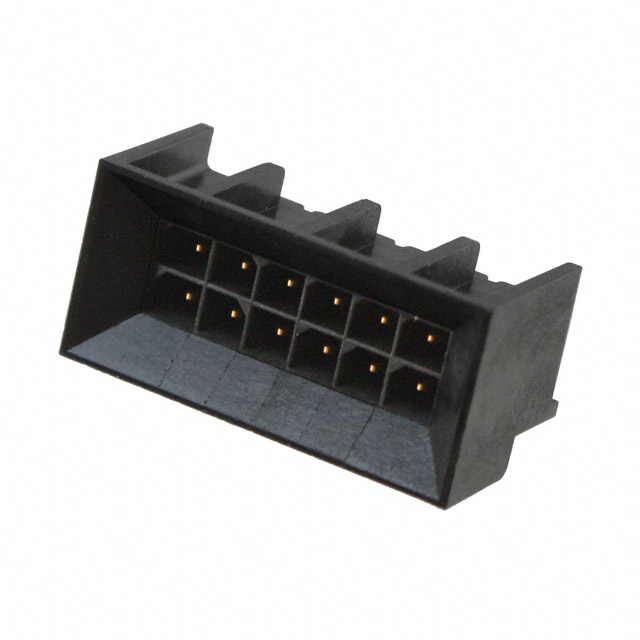

Molex 0444321202	Board to Board Cable	Glass Filled Nylon Polyamide (PA)	15 µin	0.38 µm	Through Hole	Male Pin	Brass	3 mm	0.118 in	Header	Press-Fit Solder	UL94 V-0	General Purpose Medical Military Telecommunications	0.13 in	3.3 mm	Gold	12	Blind Mating Board Guide	All	Push-Pull	11.6 mm	0.457 in	Black	2	Shrouded - 4 Wall	Tin	0.118 in	3 mm	2.54 µm	100 µin	Square

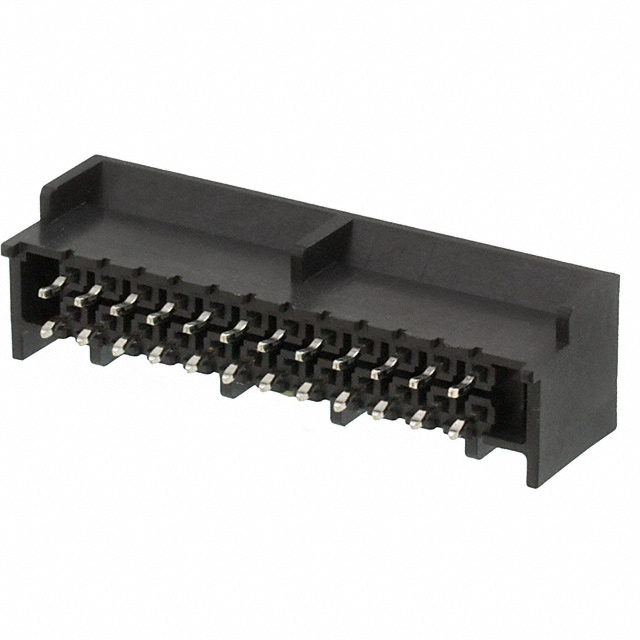

Molex 0444322401	Board to Board Cable	Glass Filled Nylon Polyamide (PA)	200 µin	5.08 µm	Through Hole	Male Pin	Brass	3 mm	0.118 in	Header	Press-Fit Solder	UL94 V-0	General Purpose Medical Military Telecommunications	0.13 in	3.3 mm		24	Blind Mating Board Guide	All	Push-Pull	11.6 mm	0.457 in	Black	2	Shrouded - 4 Wall	Tin	0.118 in	3 mm	5.08 µm	200 µin	Square
Molex 0444321401	Board to Board Cable	Glass Filled Nylon Polyamide (PA)	200 µin	5.08 µm	Through Hole	Male Pin	Brass	3 mm	0.118 in	Header	Press-Fit Solder	UL94 V-0	General Purpose Medical Military Telecommunications	0.13 in	3.3 mm		14	Blind Mating Board Guide	All	Push-Pull	11.6 mm	0.457 in	Black	2	Shrouded - 4 Wall	Tin	0.118 in	3 mm	5.08 µm	200 µin	Square
Molex 0444322410
Molex 0444320412

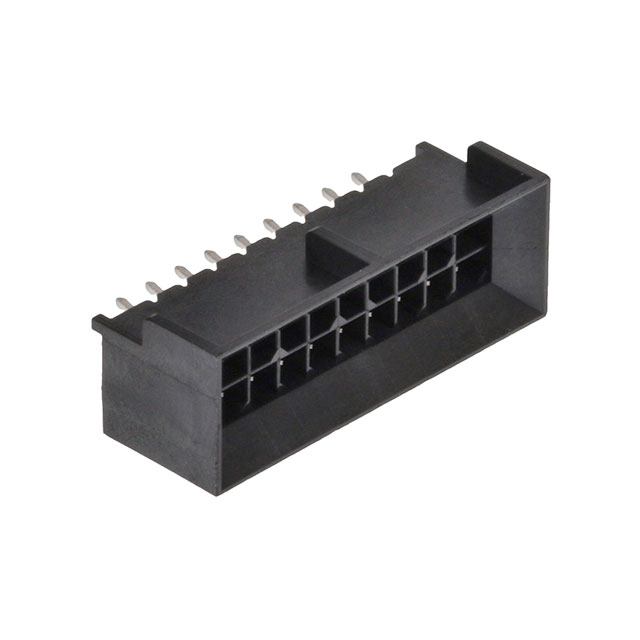

Molex 0444321801	Board to Board Cable	Glass Filled Nylon Polyamide (PA)	200 µin	5.08 µm	Through Hole	Male Pin	Brass	3 mm	0.118 in	Header	Press-Fit Solder	UL94 V-0	General Purpose Medical Military Telecommunications	0.13 in	3.3 mm		18	Blind Mating Board Guide	All	Push-Pull	11.6 mm	0.457 in	Black	2	Shrouded - 4 Wall	Tin	0.118 in	3 mm	5.08 µm	200 µin	Square

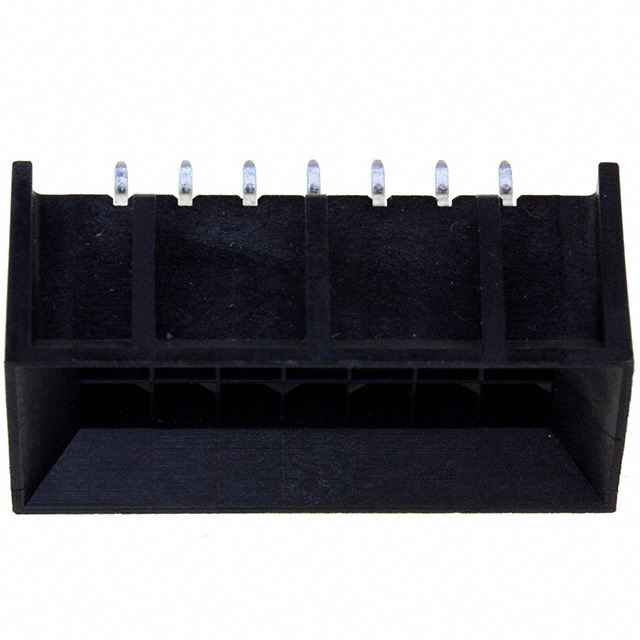

Molex 0444321402	Board to Board Cable	Glass Filled Nylon Polyamide (PA)	15 µin	0.38 µm	Through Hole	Male Pin	Brass	3 mm	0.118 in	Header	Press-Fit Solder	UL94 V-0	General Purpose Medical Military Telecommunications	0.13 in	3.3 mm	Gold	14	Blind Mating Board Guide	All	Push-Pull	11.6 mm	0.457 in	Black	2	Shrouded - 4 Wall	Tin	0.118 in	3 mm	2.54 µm	100 µin	Square
Molex 0444320601	Board to Board Cable	Glass Filled Nylon Polyamide (PA)	200 µin	5.08 µm	Through Hole	Male Pin	Brass	3 mm	0.118 in	Header	Press-Fit Solder	UL94 V-0	General Purpose Medical Military Telecommunications	0.13 in	3.3 mm		6	Blind Mating Board Guide	All	Push-Pull	11.6 mm	0.457 in	Black	2	Shrouded - 4 Wall	Tin	0.118 in	3 mm	5.08 µm	200 µin	Square
Molex 0444321210
