90206 Series
Manufacturer: Preci-Dip
Beta
⌘K

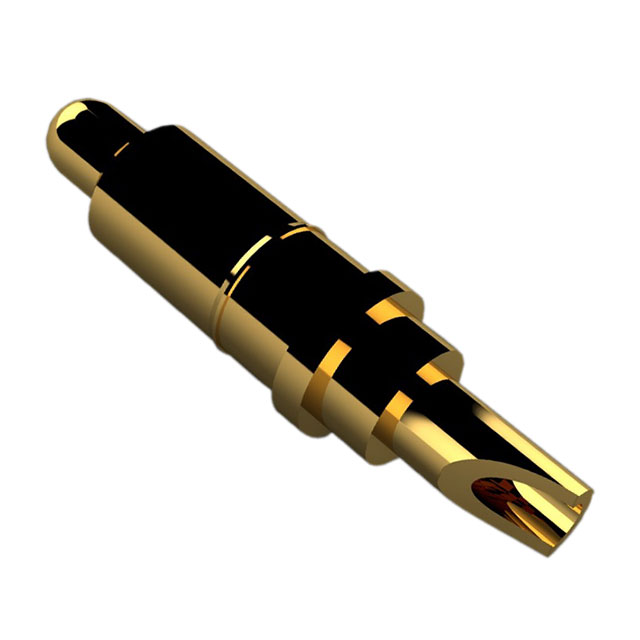

CONTACT SPRING LOADED SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height [Max] | Maximum Working Height | Contact Type | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Operating Force - Initial | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Plunger Size [diameter] | Plunger Size [diameter] | Operating Force - Mid Compression | Contact Finish | Current Rating (Amps) | Mating Cycles | Mounting Type | Minimum Working Height [z] | Minimum Working Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 0.236 in | 6 mm | Sleeve & Plunger (Pogo Pins) | 0.061 " | 1.55 mm | 25.49 gf | Brass Alloy | 20 µin | 0.51 µm | 0.042 in | 1.07 mm | 86.68 gf | Gold | 3 A | 40000 | Solder Cup Through Hole | 0.181 in | 4.6 mm |
