M2022TY Series

Catalog

SWITCH ROCKER DPDT 6A 125V

Part	Mechanical Life	Electrical Life	Mounting Type	Voltage Rating - DC	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Features	Approval Agency	Color - Actuator/Cap	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Actuator Type	Switch Function	Voltage Rating - AC	Current Rating (Amps)
NKK Switches M2022TYW01-JB	50000 Cycles	25000 Steps	Flange Panel Mount	30 V	No Marking	85 °C	-30 ░C	Epoxy Sealed Terminals	CSA UL	White	DPDT	16 mm	28.5 mm	Solder Lug	Concave	On-On	125 V	4 A 6 A

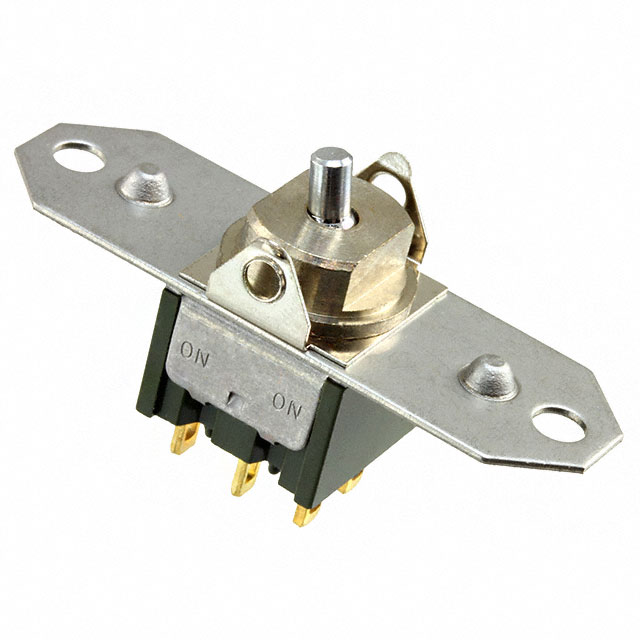

NKK Switches M2022TYG01	50000 Cycles	50000 Cycles	Flange Panel Mount	28 V	Varies by Cap	85 °C	-30 ░C	Epoxy Sealed Terminals	CSA UL		DPDT	16 mm	28.5 mm	Solder Lug	Actuator Arm Cap Required	On-On	28 V	0.4 VA
NKK Switches M2022TYW01-JC	50000 Cycles	25000 Steps	Flange Panel Mount	30 V	No Marking	85 °C	-30 ░C	Epoxy Sealed Terminals	CSA UL	Red	DPDT	16 mm	28.5 mm	Solder Lug	Concave	On-On	125 V	4 A 6 A
NKK Switches M2022TYW03	50000 Cycles	25000 Steps	Flange Panel Mount	30 V	Varies by Cap	85 °C	-30 ░C	Epoxy Sealed Terminals	CSA UL		DPDT	16 mm	28.5 mm	PC Pin	Actuator Arm Cap Required	On-On	125 V	4 A 6 A

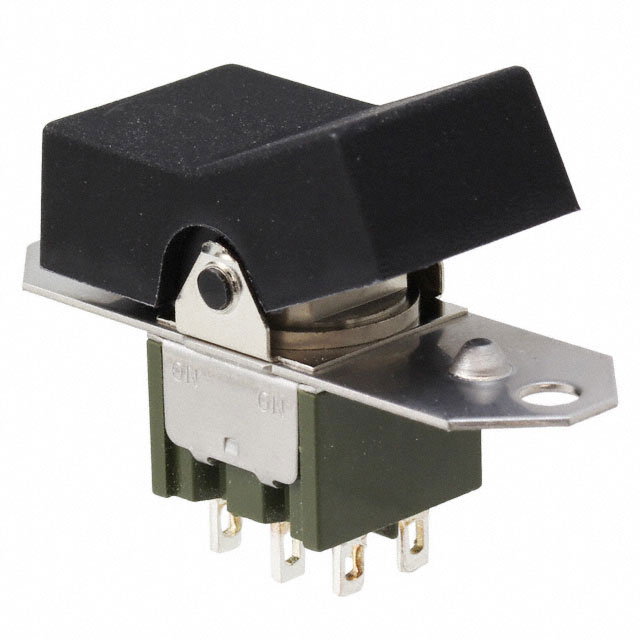

NKK Switches M2022TYW01-JA	50000 Cycles	25000 Steps	Flange Panel Mount	30 V	No Marking	85 °C	-30 ░C	Epoxy Sealed Terminals	CSA UL	Black	DPDT	16 mm	28.5 mm	Solder Lug	Concave	On-On	125 V	4 A 6 A
