3313 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

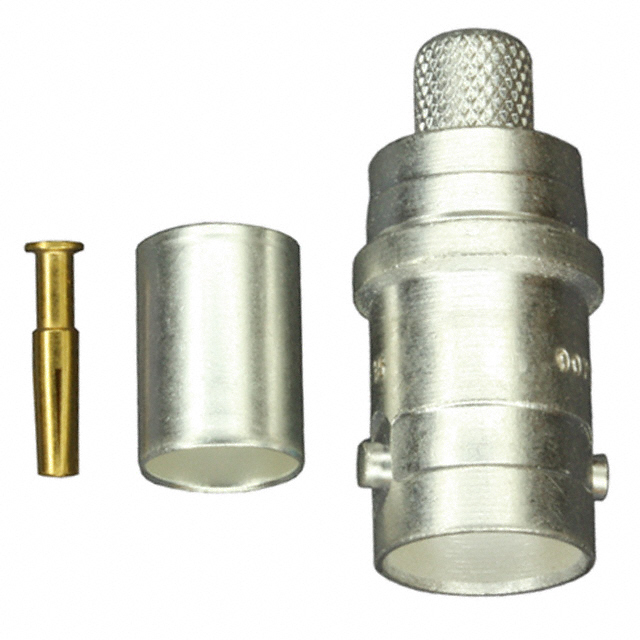

CONN BNC JACK STR 50 OHM CRIMP
| Part | Connector Type | Connector Style | Contact Termination | Body Material | Housing Color | Frequency - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Loss | Center Contact Plating | Impedance | Dielectric Material | Mounting Type | Voltage Rating | Center Contact Material | Cable Group | Number of Ports | Includes | Body Finish | Fastening Type | Mating Cycles | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Female Socket Jack | BNC | Crimp | Brass | Silver | 4 GHz | 85 °C | -55 °C | 0.2 dB | Gold | 50 Ohms | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | 500 V | Beryllium Copper | 59A 59B 62 62A 62B RG-59 | 1 | 1 Connector 1 Contact 1 Ferrule | Silver | Bayonet Lock | 500 | Crimp |
