962982 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

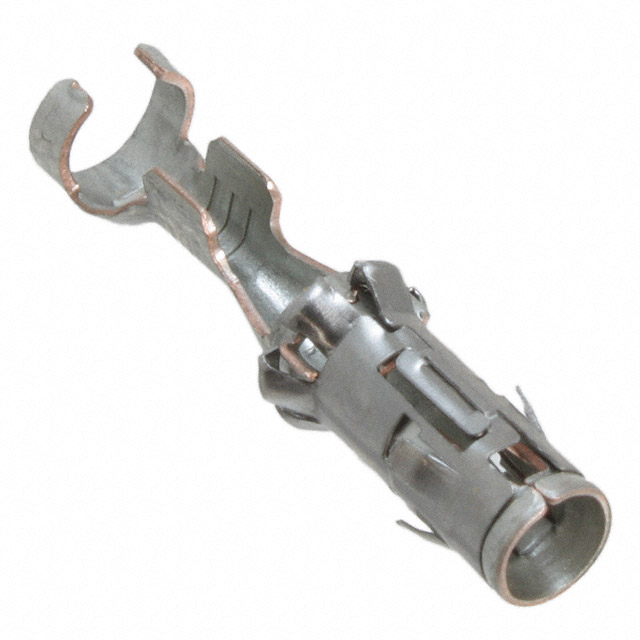

CONTACT SOCKET 14-16AWG CRIMP
| Part | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Contact Finish Thickness | Contact Finish Thickness | Type | Contact Finish | Contact Material | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Termination Finish | Contact Termination | Contact Type | Contact Size | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.5 mm˛ | 1 mm˛ | 14 AWG | 16 AWG | 1 Ám | 39.4 Áin | Power Stamped | Tin | Copper Alloy | 2.5 mm² | 1 mm² | Tin | Crimp | Socket | 2.5 mm | Insulation Support |
TE Connectivity AMP Connectors | 14 AWG | 16 AWG | 1 Ám | 39.4 Áin | Power Stamped | Tin | Copper Alloy | 2.5 mm² | 1 mm² | Tin | Crimp | Socket | 2.5 mm | Insulation Support |
