ECA-2EM Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP ALUM 220UF 20% 250V RADIAL

Part	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Tolerance	Ripple Current @ Low Frequency	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Mounting Type	Applications	Voltage - Rated	Polarization	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)

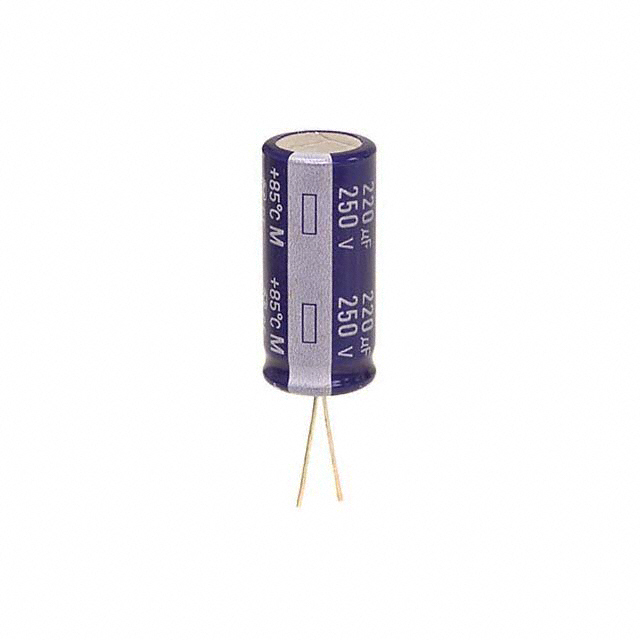

Panasonic Electronic Components ECA-2EM221	1.581 A	42 mm	1.654 in	Can Radial	20 %	930 mA	220 µF	85 °C	-25 °C	0.709 in	18 mm	2000 Hrs	0.295 in	7.5 mm	Through Hole	General Purpose	250 V	Polar

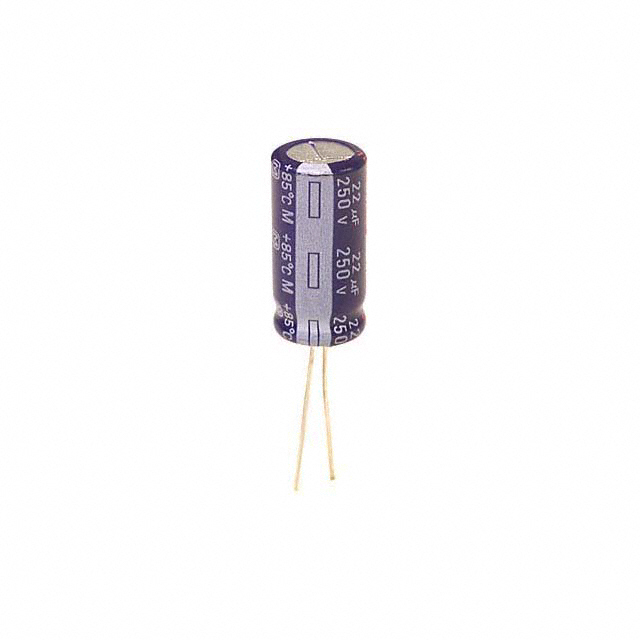

Panasonic Electronic Components ECA-2EM220	306 mA			Can Radial	20 %	180 mA	22 µF	85 °C	-25 °C	0.394 in	10 mm	2000 Hrs	0.197 "	5 mm	Through Hole	General Purpose	250 V	Polar	0.866 in	22 mm
Panasonic Electronic Components ECA-2EM470B	561 mA			Can Radial	20 %	330 mA	47 µF	85 °C	-25 °C	0.492 in	12.5 mm	2000 Hrs	0.197 "	5 mm	Through Hole	General Purpose	250 V	Polar			1.063 in	27 mm

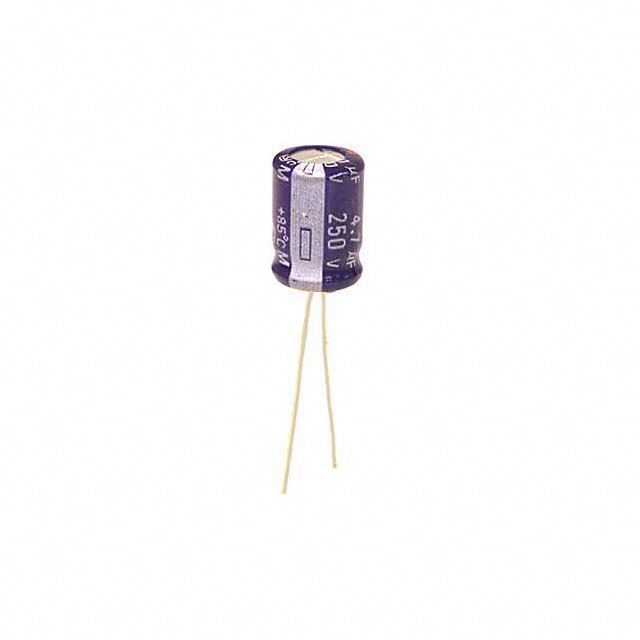

Panasonic Electronic Components ECA-2EM4R7	146.2 mA			Can Radial	20 %	86 mA	4.7 µF	85 °C	-25 °C	0.315 in	8 mm	2000 Hrs	0.138 in	3.5 mm	Through Hole	General Purpose	250 V	Polar				0.492 in	12.5 mm

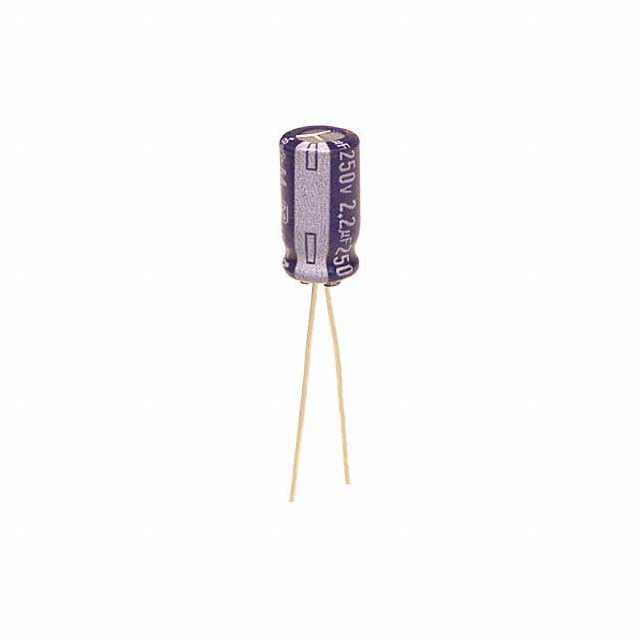

Panasonic Electronic Components ECA-2EM2R2	85 mA			Can Radial	20 %	50 mA	2.2 µF	85 °C	-25 °C	0.248 "	6.3 mm	2000 Hrs	0.098 in	2.5 mm	Through Hole	General Purpose	250 V	Polar			0.48 in			12.2 mm

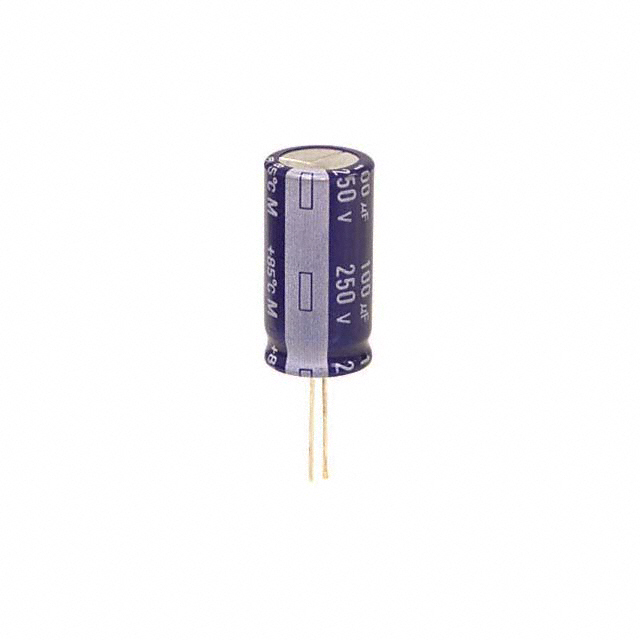

Panasonic Electronic Components ECA-2EM101	901 mA		1.319 in	Can Radial	20 %	530 mA	100 µF	85 °C	-25 °C	0.63 in	16 mm	2000 Hrs	0.295 in	7.5 mm	Through Hole	General Purpose	250 V	Polar						33.5 mm
Panasonic Electronic Components ECA-2EM220B	306 mA			Can Radial	20 %	180 mA	22 µF	85 °C	-25 °C	0.394 in	10 mm	2000 Hrs	0.197 "	5 mm	Through Hole	General Purpose	250 V	Polar	0.866 in	22 mm
Panasonic Electronic Components ECA-2EM4R7BJ	146.2 mA			Can Radial	20 %	86 mA	4.7 µF	85 °C	-25 °C	0.315 in	8 mm	2000 Hrs	0.138 in	3.5 mm	Through Hole	General Purpose	250 V	Polar				0.492 in	12.5 mm
Panasonic Electronic Components ECA-2EM100	187 mA		0.669 "	Can Radial	20 %	110 mA	10 µF	85 °C	-25 °C	0.394 in	10 mm	2000 Hrs	0.197 "	5 mm	Through Hole	General Purpose	250 V	Polar				17 mm
Panasonic Electronic Components ECA-2EM470	561 mA			Can Radial	20 %	330 mA	47 µF	85 °C	-25 °C	0.492 in	12.5 mm	2000 Hrs	0.197 "	5 mm	Through Hole	General Purpose	250 V	Polar			1.063 in	27 mm
