SMJ100 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

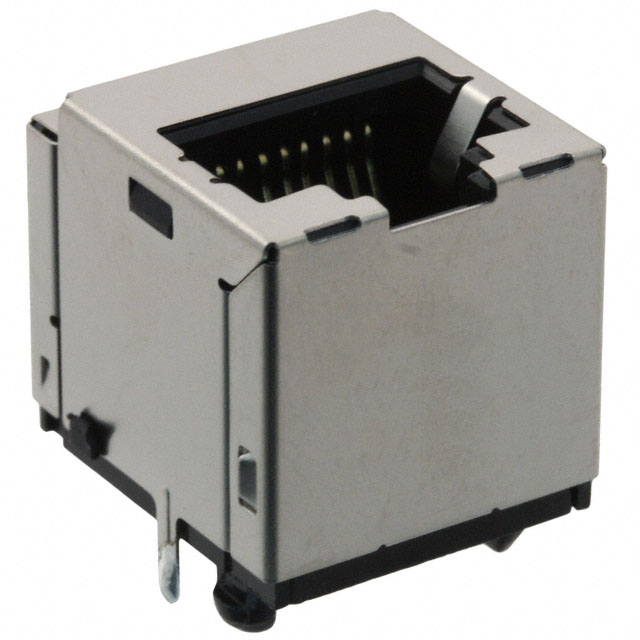

CONN JACK 1PORT 100 BASE-T PCB
| Part | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Shield Material | Orientation | Connector Type | Applications | Number of Ports | Termination | Tab Direction | Contact Finish | LED Color | Shielding | Mounting Type | Number of Rows | Height Above Board [z] | Height Above Board [z] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 0.152 Ám | 6 Áin | Polybutylene Terephthalate (PBT) | Brass | Vertical | RJ45 | 10/100 Base-T AutoMDIX | 1 | Solder | User Selectable | Gold | Does Not Contain LED | Shielded | Through Hole | 1 | 0.63 in | 16 mm | 70 °C | 0 °C | Phosphor Bronze | Board Lock |
