SFW15R Series

Catalog

CONN CIC BOTTOM 15POS 1MM R/A

Part	Mounting Type	Number of Positions	Locking Feature	Height Above Board [z]	Height Above Board [z]	FFC, FCB Thickness	Pitch	Pitch	Flat Flex Type	Connector/Contact Type	Housing Material	Cable End Type	Termination	Mating Cycles	Actuator Color	Housing Color	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Voltage Rating	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Contact Finish	Material Flammability Rating	Features
Amphenol ICC (FCI) SFW15R-5STE1	Right Angle Surface Mount	15	Slide Lock	0.106 in	2.7 mm	0.3 mm	1 mm	0.039 in	CIC	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	Tapered	Solder
Amphenol ICC (FCI) SFW15R-1STE9LF	Right Angle Surface Mount	15	Slide Lock	0.106 in	2.7 mm		1 mm	0.039 in	FFC FPC	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered	Solder	20	Black	Brown	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Phosphor Bronze	100 V	0.3 mm	0.33 mm	Tin	UL94 V-0
Amphenol ICC (FCI) SFW15R-4STAE1LF	Right Angle Surface Mount	15	Slide Lock	0.106 in	2.7 mm	0.33 mm	1 mm	0.039 in	FPC	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	Notched	Solder	20	Brown	Black	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Phosphor Bronze	100 V			Gold	UL94 V-0
Amphenol ICC (FCI) SFW15R-3STE1LF	Right Angle Surface Mount	15	Slide Lock	0.106 in	2.7 mm	0.3 mm	1 mm	0.039 in	FFC FPC	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	Straight	Solder	20	Black	Black	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Phosphor Bronze	100 V			Tin	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW15R-4STE1	Right Angle Surface Mount	15	Slide Lock	0.106 in	2.7 mm		1 mm	0.039 in	FFC FPC	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	Notched	Solder		Brown	Black	Polyphenylene Sulfide (PPS) Glass Filled			Phosphor Bronze		0.3 mm	0.33 mm	Tin Alloy	UL94 V-0
Amphenol ICC (FCI) SFW15R-5STE1LF	Right Angle Surface Mount	15		0.106 in	2.7 mm	0.3 mm	1 mm	0.039 in	CIC	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	Straight	Solder	10		Brown	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Phosphor Bronze	100 V			Tin	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW15R-2STE1	Right Angle Surface Mount	15	Slide Lock	0.106 in	2.7 mm		1 mm	0.039 in	FFC FPC	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered	Solder		Black	Brown	Polyphenylene Sulfide (PPS) Glass Filled			Phosphor Bronze		0.3 mm	0.33 mm	Tin Alloy	UL94 V-0
Amphenol ICC (FCI) SFW15R-2STGE1LF

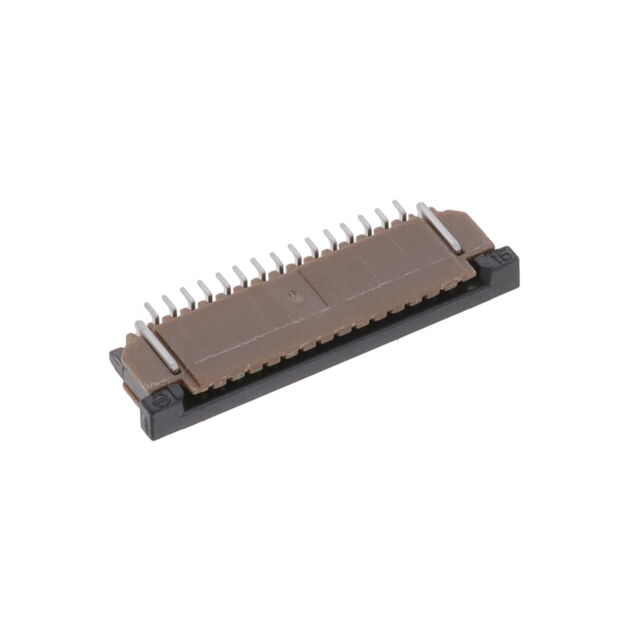

Amphenol ICC (FCI) SFW15R-1STE1LF	Right Angle Surface Mount	15	Slide Lock	0.106 in	2.7 mm	0.3 mm	1 mm	0.039 in	FFC FPC	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	Straight	Solder	20		Brown	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Phosphor Bronze	100 V			Tin	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW15R-4STE1LF	Right Angle Surface Mount	15	Slide Lock	0.106 in	2.7 mm		1 mm	0.039 in	FFC FPC	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	Notched Tapered	Solder	20	Brown	Black	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Phosphor Bronze	100 V	0.3 mm	0.33 mm	Tin	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)
