W2E143 Series

Catalog

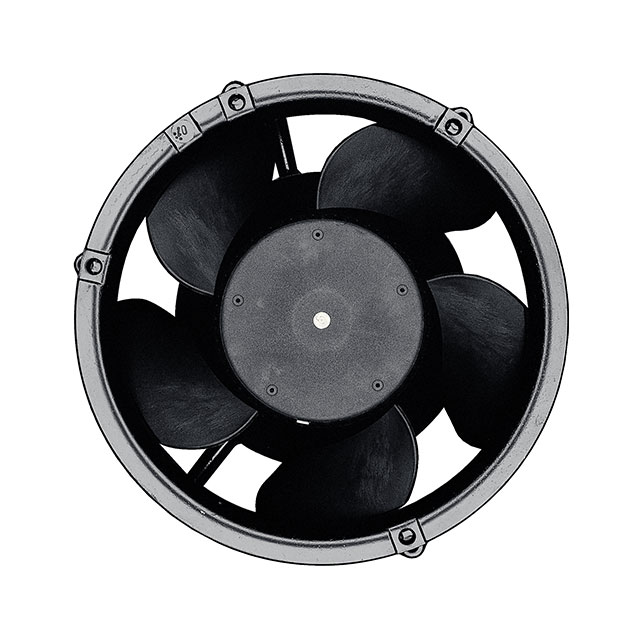

FAN AXIAL 115VAC 172X51MM

Part	Material - Blade	Material - Frame	Current Rating (Amps)	Power (Watts)	RPM	Ingress Protection	Voltage - Rated	Approval Agency	Bearing Type	Termination	Width [x]	Fan Type	Weight	Weight	Size / Dimension [diameter]	Size / Dimension	Operating Temperature [Max]	Operating Temperature [Min]	Noise	Air Flow	Air Flow	Weight [custom]	Weight [custom]
ebm-papst Inc. W2E143-AB15-06	Steel	Aluminum	0.26 A	29 W	3300 RPM	IP20	115 VAC	CE CSA UL VDE	Ball	2	51 mm	Tubeaxial	907.2 g	2 lbs	171.5 mm	Round
ebm-papst Inc. W2E143-AA15-01	Steel	Aluminum	0.23 A	26 W	3300 RPM		115 VAC	CCC CE CSA GOST UL VDE	Ball	2	51 mm	Tubeaxial	952.5 g	2.1 lb	171.5 mm	Round	80 °C	-40 C	60 dB(A)	7.25 mł/min	258.9 CFM
ebm-papst Inc. W2E143-AA09-88	Steel	Aluminum		29 W			230 VAC		Ball	2	51 mm	Tubeaxial	997.9 g	2.2 lbs	171.5 mm	Round	80 °C	-40 C	60 dB(A)	7.28 mł/min	260 CFM
ebm-papst Inc. W2E143-AB09-06	Steel	Aluminum		29 W	3300 RPM	IP20	230 VAC	CCC CE CSA UL VDE	Ball		51 mm	Tubeaxial	907.2 g	2 lbs	171.5 mm	Round	75 ░C	-25 °C

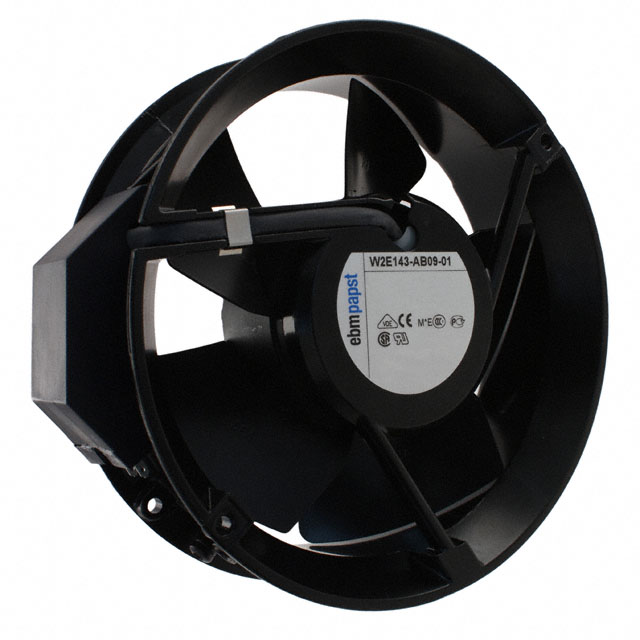

ebm-papst Inc. W2E143-AB09-01	Steel	Aluminum	120 mA	30 Watts	3300 RPM		230 VAC	CCC CE CSA GOST UL VDE	Ball	2	51 mm	Tubeaxial	907.2 g	2 lbs	171.5 mm	Round	80 °C	-40 C	58 dB(A)	8.24 m³/min	294.2 CFM
ebm-papst Inc. W2E143-AA09-25	Steel	Aluminum	110 mA	26 W	3300 RPM	IP20	230 VAC	CE VDE	Ball	2	51 mm	Tubeaxial			171.5 mm	Round	70 °C	-25 °C				2.3 lbs	1 kg

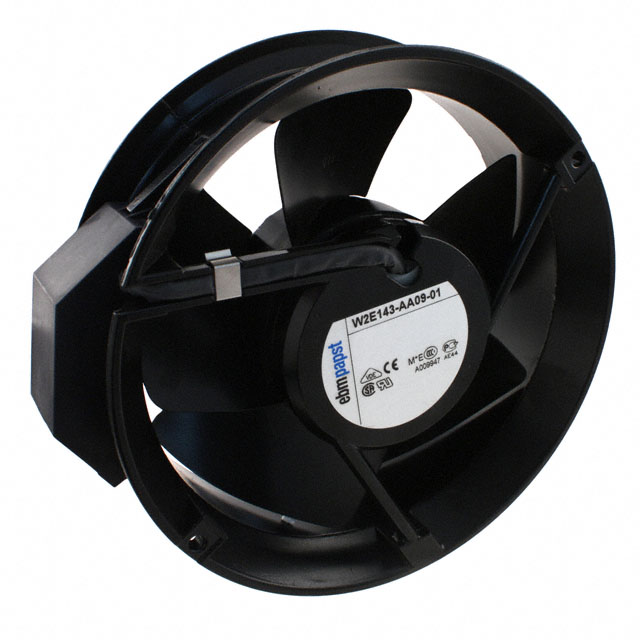

ebm-papst Inc. W2E143-AA09-01	Steel	Aluminum		26 W	3300 RPM		230 VAC	CCC CE CSA GOST UL VDE	Ball	2	51 mm	Tubeaxial	997.9 g	2.2 lbs	171.5 mm	Round	80 °C	-40 C	60 dB(A)	7.25 mł/min	258.9 CFM

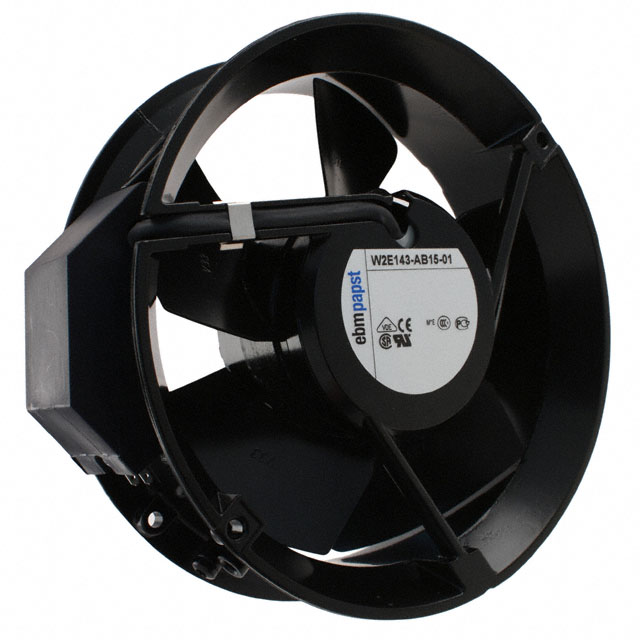

ebm-papst Inc. W2E143-AB15-01	Steel	Aluminum	0.26 A	29 W	3300 RPM		115 VAC	CCC CE CSA GOST UL VDE	Ball	2	51 mm	Tubeaxial	952.5 g	2.1 lb	171.5 mm	Round	80 °C	-40 C	58 dB(A)	8.24 m³/min	294.2 CFM
