SFM315 Series

Manufacturer: Sullins Connector Solutions

Catalog

Catalog

CONN HDR 12POS 0.039 GOLD SMD

...

Part	Insulation Material	Contact Finish Thickness - Post	Contact Material	Contact Shape	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Number of Rows [custom]	Features	Termination	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Number of Positions	Insulation Color	Contact Finish Thickness - Mating
Sullins Connector Solutions SFM315-LPGE-D06-SP-BK	Liquid Crystal Polymer (LCP)	Flash	Phosphor Bronze	Square	Header	0.25 µm	10 µin	Push-Pull	Female Socket	Gold	1 mm	0.039 in	Surface Mount	0.039 in	1 mm	All	125 °C	-40 C	Gold	2	Board Guide	Solder	0.13 in	3.3 mm	UL94 V-0	12	Black
Sullins Connector Solutions SFM315-LPGE-D14-SM-BK	Liquid Crystal Polymer (LCP)	Flash	Phosphor Bronze	Square	Header	0.25 µm	10 µin	Push-Pull	Female Socket	Gold	1 mm	0.039 in	Surface Mount	0.039 in	1 mm	All	125 °C	-40 C	Gold	2		Solder	0.13 in	3.3 mm	UL94 V-0	28	Black
Sullins Connector Solutions SFM315-LPGE-D29-SP-BK	Liquid Crystal Polymer (LCP)	Flash	Phosphor Bronze	Square	Header	0.25 µm	10 µin	Push-Pull	Female Socket	Gold	1 mm	0.039 in	Surface Mount	0.039 in	1 mm	All	125 °C	-40 C	Gold	2	Board Guide	Solder	0.13 in	3.3 mm	UL94 V-0	58	Black
Sullins Connector Solutions SFM315-LPGE-D30-SM-BK	Liquid Crystal Polymer (LCP)	Flash	Phosphor Bronze	Square	Header	0.25 µm	10 µin	Push-Pull	Female Socket	Gold	1 mm	0.039 in	Surface Mount	0.039 in	1 mm	All	125 °C	-40 C	Gold	2		Solder	0.13 in	3.3 mm	UL94 V-0	60	Black
Sullins Connector Solutions SFM315-LPGE-D31-SP-BK	Liquid Crystal Polymer (LCP)	Flash	Phosphor Bronze	Square	Header	0.25 µm	10 µin	Push-Pull	Female Socket	Gold	1 mm	0.039 in	Surface Mount	0.039 in	1 mm	All	125 °C	-40 C	Gold	2	Board Guide	Solder	0.13 in	3.3 mm	UL94 V-0	62	Black
Sullins Connector Solutions SFM315-LPPE-D36-SM-BK	Liquid Crystal Polymer (LCP)	Flash	Phosphor Bronze	Square	Header			Push-Pull	Female Socket	Gold	1 mm	0.039 in	Surface Mount	0.039 in	1 mm	All	125 °C	-40 C	Gold	2		Solder	0.13 in	3.3 mm	UL94 V-0	72	Black	Flash

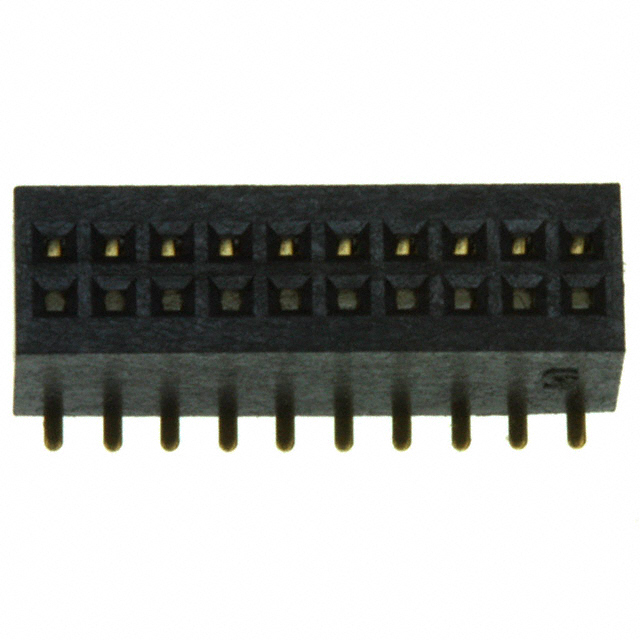

Sullins Connector Solutions SFM315-LPGE-D10-SP-BK	Liquid Crystal Polymer (LCP)	Flash	Phosphor Bronze	Square	Header	0.25 µm	10 µin	Push-Pull	Female Socket	Gold	1 mm	0.039 in	Surface Mount	0.039 in	1 mm	All	125 °C	-40 C	Gold	2	Board Guide	Solder	0.13 in	3.3 mm	UL94 V-0	20	Black
Sullins Connector Solutions SFM315-LPGE-D25-SM-BK	Liquid Crystal Polymer (LCP)	Flash	Phosphor Bronze	Square	Header	0.25 µm	10 µin	Push-Pull	Female Socket	Gold	1 mm	0.039 in	Surface Mount	0.039 in	1 mm	All	125 °C	-40 C	Gold	2		Solder	0.13 in	3.3 mm	UL94 V-0	50	Black
Sullins Connector Solutions SFM315-LPGE-D13-SP-BK	Liquid Crystal Polymer (LCP)	Flash	Phosphor Bronze	Square	Header	0.25 µm	10 µin	Push-Pull	Female Socket	Gold	1 mm	0.039 in	Surface Mount	0.039 in	1 mm	All	125 °C	-40 C	Gold	2	Board Guide	Solder	0.13 in	3.3 mm	UL94 V-0	26	Black
Sullins Connector Solutions SFM315-LPPE-D33-SM-BK	Liquid Crystal Polymer (LCP)	Flash	Phosphor Bronze	Square	Header			Push-Pull	Female Socket	Gold	1 mm	0.039 in	Surface Mount	0.039 in	1 mm	All	125 °C	-40 C	Gold	2		Solder	0.13 in	3.3 mm	UL94 V-0	66	Black	Flash
