NPTC401 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

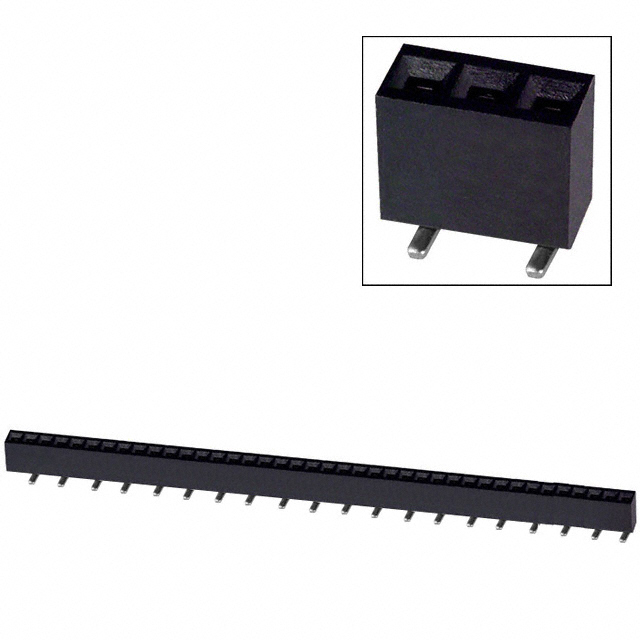

CONN HDR 40POS 0.1 TIN SMD
| Part | Contact Material | Contact Shape | Insulation Material | Material Flammability Rating | Termination | Contact Type | Voltage Rating | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Number of Positions | Number of Rows | Number of Positions Loaded | Insulation Color | Fastening Type | Insulation Height | Insulation Height | Connector Type | Pitch - Mating | Pitch - Mating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Square | Nylon 6T Polyamide (PA6T) | UL94 V-0 | Solder | Female Socket | 250 V | Surface Mount | -40 C | 105 ░C | Tin | 40 | 1 | All | Black | Push-Pull | 0.28 in | 7.1 mm | Header Top or Bottom Entry | 0.1 " | 2.54 mm | 3 A |
