M80-540 Series

Catalog

HEADER CONNECTOR,PCB MOUNT,RECEPT,34 CONTACTS,PIN,0.079 PITCH,R ANGLE PC TAIL TERMINAL,M2X0.4 ROHS COMPLIANT: NO

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mounting Type	Contact Finish - Post	Number of Rows [custom]	Number of Positions [custom]	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Type	Connector Type	Style	Insulation Material	Shrouding	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Voltage Rating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Contact Shape	Current Rating (Amps)	Contact Material	Material Flammability Rating	Insulation Color	Contact Finish - Mating	Features	Termination	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]

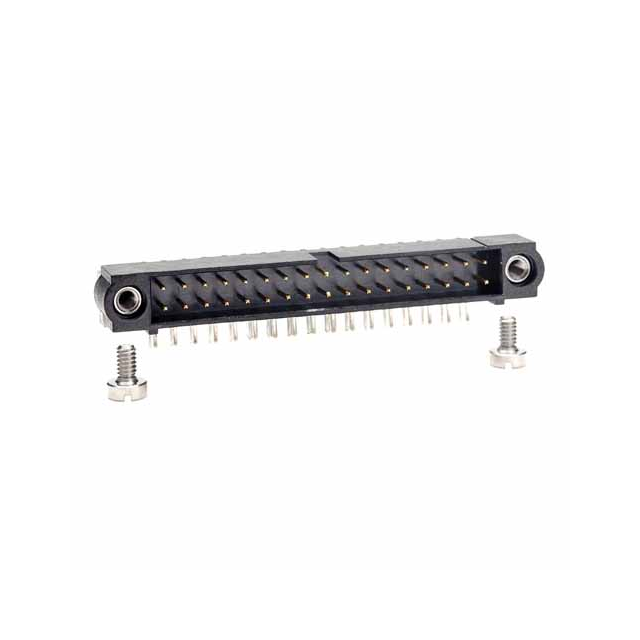

Harwin Inc. M80-5403422	118.1 µin	3 µm	Right Angle Through Hole	Tin-Lead	2	34	All	5.55 mm	0.218 in	Male Pin	Header	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	29.5 µin	0.75 µm	800 V	Threaded	-55 C	125 °C	0.118 in	3 mm	Circular	2.2 A	Phosphor Bronze	UL94 V-0	Black	Gold	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Solder	0.079 "	2 mm	2 mm	0.079 in
Harwin Inc. M80-5403842			Right Angle Through Hole	Tin	2		All	5.55 mm	0.218 in	Male Pin	Header	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	29.5 µin	0.75 µm	800 VAC	Threaded	-55 C	125 °C	0.118 in	3 mm	Circular	2.2 A	Phosphor Bronze	UL94 V-0	Black	Gold	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Solder	0.079 "	2 mm	2 mm	0.079 in	12 µin	0.3 µm	38

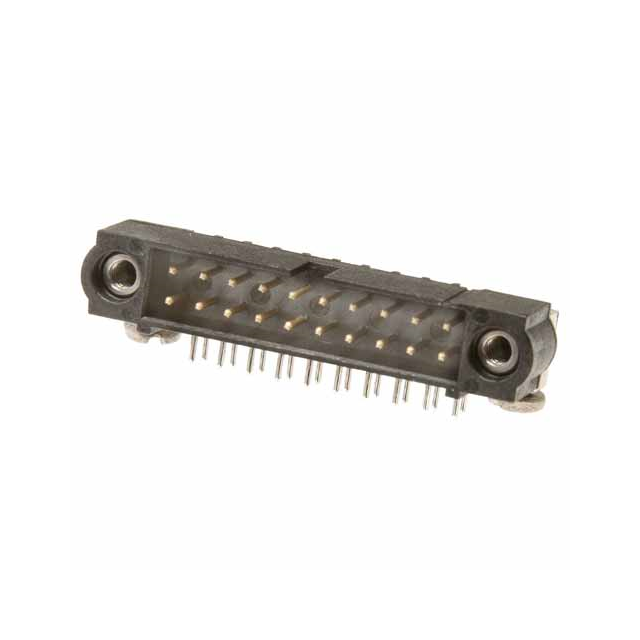

Harwin Inc. M80-5401222	118.1 µin	3 µm	Right Angle Through Hole	Tin-Lead	2		All	5.55 mm	0.218 in	Male Pin	Header	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	29.5 µin	0.75 µm	800 V	Threaded	-55 C	125 °C	0.118 in	3 mm	Circular	2.2 A	Phosphor Bronze	UL94 V-0	Black	Gold	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Solder	0.079 "	2 mm	2 mm	0.079 in			12
Harwin Inc. M80-5402022	118.1 µin	3 µm	Right Angle Through Hole	Tin-Lead	2		All	5.55 mm	0.218 in	Male Pin	Header	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	29.5 µin	0.75 µm	800 V	Threaded	-55 C	125 °C	0.118 in	3 mm	Circular	2.2 A	Phosphor Bronze	UL94 V-0	Black	Gold	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Solder	0.079 "	2 mm	2 mm	0.079 in			20

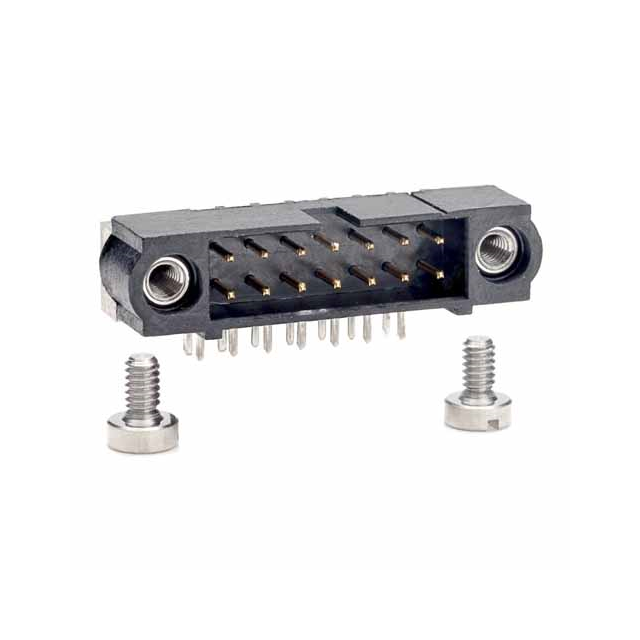

Harwin Inc. M80-5401422	118.1 µin	3 µm	Right Angle Through Hole	Tin-Lead	2		All	5.55 mm	0.218 in	Male Pin	Header	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	29.5 µin	0.75 µm	800 V	Threaded	-55 C	125 °C	0.118 in	3 mm	Circular	2.2 A	Phosphor Bronze	UL94 V-0	Black	Gold	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Solder	0.079 "	2 mm	2 mm	0.079 in			14

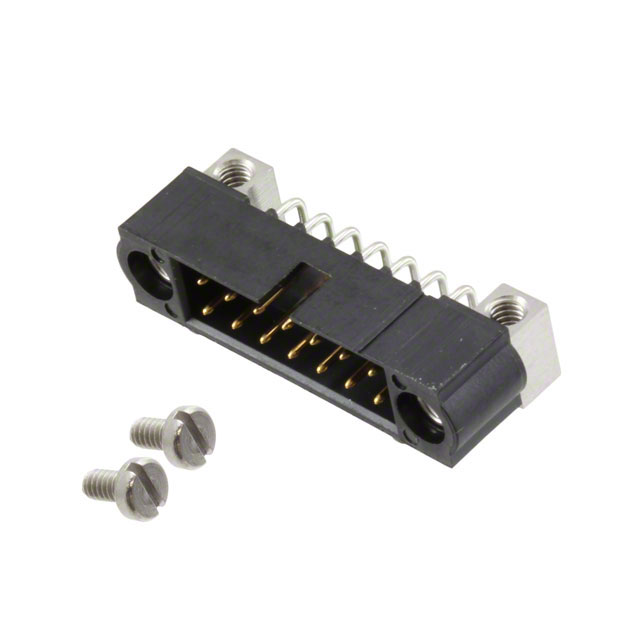

Harwin Inc. M80-5401442	118.1 µin	3 µm	Right Angle Through Hole	Tin	2		All	5.55 mm	0.218 in	Male Pin	Header	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	29.5 µin	0.75 µm	800 V	Threaded	-55 C	125 °C	0.118 in	3 mm	Circular	2.2 A	Phosphor Bronze	UL94 V-0	Black	Gold	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Solder	0.079 "	2 mm	2 mm	0.079 in			14

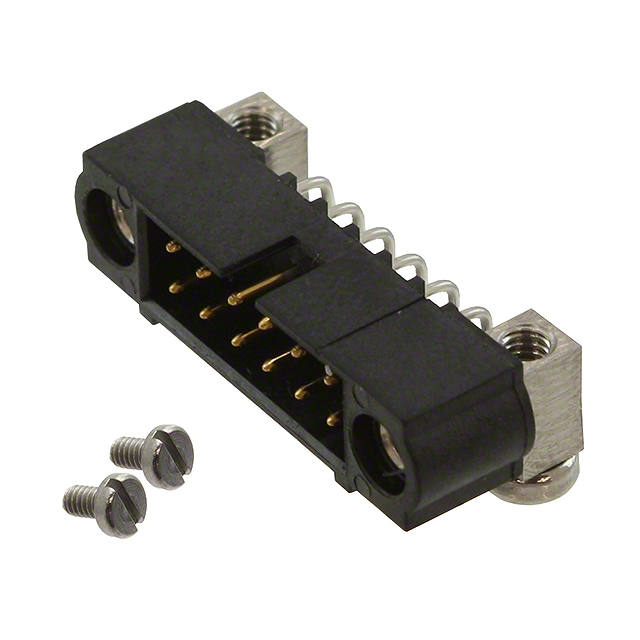

Harwin Inc. M80-5401242	118.1 µin	3 µm	Right Angle Through Hole	Tin	2		All	5.55 mm	0.218 in	Male Pin	Header	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	29.5 µin	0.75 µm	800 V	Threaded	-55 C	125 °C	0.118 in	3 mm	Circular	2.2 A	Phosphor Bronze	UL94 V-0	Black	Gold	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Solder	0.079 "	2 mm	2 mm	0.079 in			12

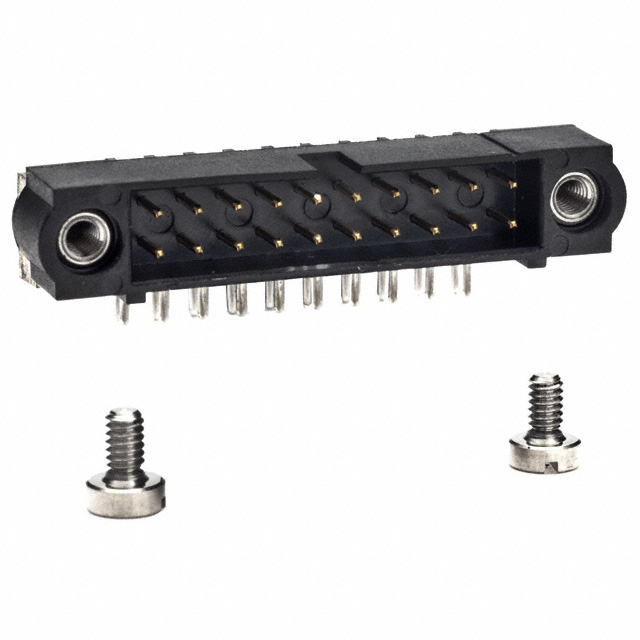

Harwin Inc. M80-5402042	118.1 µin	3 µm	Right Angle Through Hole	Tin	2		All	5.55 mm	0.218 in	Male Pin	Header	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	29.5 µin	0.75 µm	800 V	Threaded	-55 C	125 °C	0.118 in	3 mm	Circular	2.2 A	Phosphor Bronze	UL94 V-0	Black	Gold	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Solder	0.079 "	2 mm	2 mm	0.079 in			20
Harwin Inc. M80-5402005			Right Angle Through Hole	Gold	2		All	5.65 mm	0.222 in	Male Pin	Header	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	29.5 µin	0.75 µm	800 VAC	Threaded	-55 C	125 °C	0.118 in	3 mm	Circular	2.2 A	Phosphor Bronze	UL94 V-0	Black	Gold	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Solder	0.079 "	2 mm				29.5 µin	20	0.75 µm	0.1 in	2.54 mm
Harwin Inc. M80-5402222			Right Angle Through Hole	Tin-Lead	2		All	5.65 mm	0.222 in	Male Pin	Header	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	29.5 µin	0.75 µm	800 VAC	Threaded	-55 C	125 °C	0.118 in	3 mm	Circular	2.2 A	Phosphor Bronze	UL94 V-0	Black	Gold	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Solder	0.079 "	2 mm			12 µin	0.3 µm	22		0.1 in	2.54 mm
