DRV8412 Series
70V, 6A dual H-bridge motor driver with current regulation
Manufacturer: Texas Instruments
Catalog
70V, 6A dual H-bridge motor driver with current regulation
| Part | Supplied Contents | Utilized IC / Part | Function | Type | Embedded | Embedded | Fault Protection | Load Type | Current - Output / Channel | Current - Peak Output | Package / Case [custom] | Package / Case [custom] | Package / Case | Output Configuration | Supplier Device Package | Applications | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Rds On (Typ) | Mounting Type | Technology | Voltage - Load [Max] | Voltage - Load [Min] | Interface | Primary Attributes | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Accessories Board(s) Cable(s) Power Supply | DRV8412 | Motor Controller/Driver | Power Management | 32-Bit MCU | ||||||||||||||||||||||||
 Texas Instruments | Current Limiting Over Temperature Short Circuit UVLO | Inductive | 3 A | 6 A | 44-PowerTSSOP | 0.244 in | 6.2 mm | Half Bridge (4) | 44-HTSSOP | DC Motors Stepper Motors | Status Flag | 150 °C | -40 °C | 13.2 V | 10.8 VDC | 110 mOhm 110 mOhm | Surface Mount | Power MOSFET | 52.5 V | 0 V | PWM | ||||||||

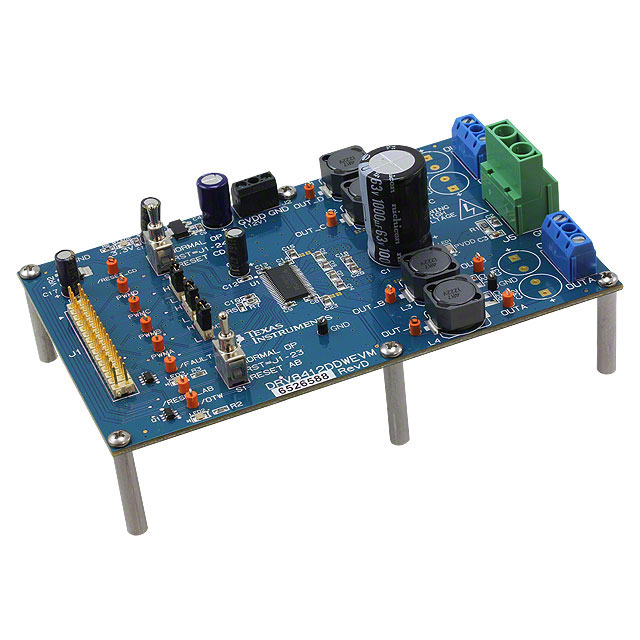

 Texas Instruments | Board(s) | DRV8412 | Motor Controller/Driver | Power Management | Dual Full-Bridge (H-Bridge) Driver with PWM Current Controller | Short-Circuit and Thermal Protection |
Key Features
• High-efficiency power stage (up to 97%) with low RDS(on) MOSFETs (110mΩ at TJ = 25°C)Operating supply voltage up to 52VDRV8412 (Power pad down): up to 2 × 3A continuous output current (2 × 6A peak) in dual full-bridge mode or 6A continuous current in parallel mode (12A peak)DRV8432 (Power pad up): up to 2 × 7A continuous output current (2 × 12A peak) in dual full-bridge mode or 14A continuous current in parallel mode (24A peak)PWM operating frequency up to 500kHzIntegrated self-protection circuits including undervoltage, overtemperature, overload, and short circuitProgrammable cycle-by-cycle current limit protectionIndependent supply and ground pins for each half bridgeIntelligent gate drive and cross conduction preventionNo external snubber or schottky diode is requiredHigh-efficiency power stage (up to 97%) with low RDS(on) MOSFETs (110mΩ at TJ = 25°C)Operating supply voltage up to 52VDRV8412 (Power pad down): up to 2 × 3A continuous output current (2 × 6A peak) in dual full-bridge mode or 6A continuous current in parallel mode (12A peak)DRV8432 (Power pad up): up to 2 × 7A continuous output current (2 × 12A peak) in dual full-bridge mode or 14A continuous current in parallel mode (24A peak)PWM operating frequency up to 500kHzIntegrated self-protection circuits including undervoltage, overtemperature, overload, and short circuitProgrammable cycle-by-cycle current limit protectionIndependent supply and ground pins for each half bridgeIntelligent gate drive and cross conduction preventionNo external snubber or schottky diode is required
Description
AI
The DRV841x2 are high-performance, integrated dual full-bridge motor driver with an advanced protection system.
Because of the low RDS(on) of the H-Bridge MOSFETs and intelligent gate drive design, the efficiency of these motor drivers can be up to 97%. This high efficiency enables the use of smaller power supplies and heatsinks, and the devices are good candidates for energy-efficient applications.
The DRV841x2 requires two power supplies, one at 12V for GVDD and VDD, and another up to 50 V for PVDD. The DRV841x2 can operate at up to 500kHz switching frequency while still maintaining precise control and high efficiency. The devices also have an innovative protection system safeguarding the device against a wide range of fault conditions that could damage the system. These safeguards are short-circuit protection, overcurrent protection, undervoltage protection, and two-stage thermal protection. The DRV841x2 has a current-limiting circuit that prevents device shutdown during load transients such as motor start-up. A programmable overcurrent detector allows adjustable current limit and protection level to meet different motor requirements.
The DRV841x2 has unique independent supply and ground pins for each half-bridge. These pins make it possible to provide current measurement through external shunt resistor and support multiple motors with different power supply voltage requirements.
The DRV841x2 are high-performance, integrated dual full-bridge motor driver with an advanced protection system.
Because of the low RDS(on) of the H-Bridge MOSFETs and intelligent gate drive design, the efficiency of these motor drivers can be up to 97%. This high efficiency enables the use of smaller power supplies and heatsinks, and the devices are good candidates for energy-efficient applications.
The DRV841x2 requires two power supplies, one at 12V for GVDD and VDD, and another up to 50 V for PVDD. The DRV841x2 can operate at up to 500kHz switching frequency while still maintaining precise control and high efficiency. The devices also have an innovative protection system safeguarding the device against a wide range of fault conditions that could damage the system. These safeguards are short-circuit protection, overcurrent protection, undervoltage protection, and two-stage thermal protection. The DRV841x2 has a current-limiting circuit that prevents device shutdown during load transients such as motor start-up. A programmable overcurrent detector allows adjustable current limit and protection level to meet different motor requirements.
The DRV841x2 has unique independent supply and ground pins for each half-bridge. These pins make it possible to provide current measurement through external shunt resistor and support multiple motors with different power supply voltage requirements.
