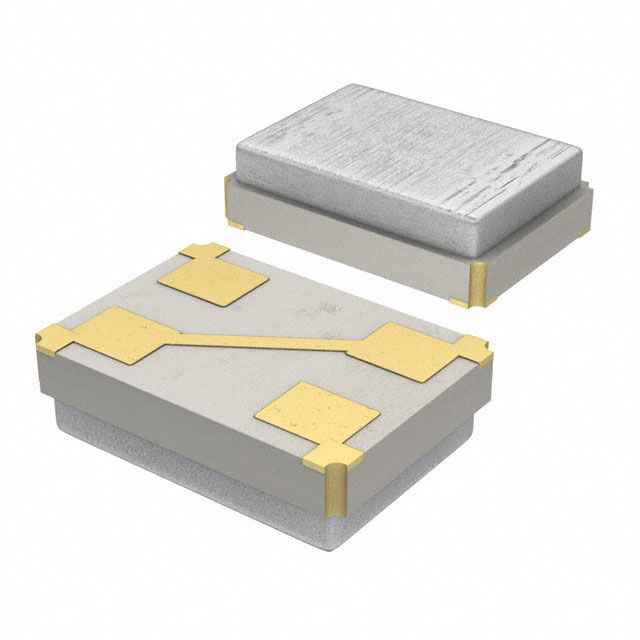

XRCPB Series

Catalog

CRYSTAL 25.0000MHZ 6PF SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Operating Mode	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max)	Frequency Stability	Type	Load Capacitance	ESR (Equivalent Series Resistance)	Frequency
Murata Electronics XRCPB25M000F3M00R0	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	Fundamental	1.6 mm	0.079 in	0.063 "	2 mm	30 ppm	0.02 in	0.5 mm	40 ppm	MHz Crystal	6 pF	150 Ohms	25 MHz
Murata Electronics XRCPB32M000F2P00R0	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	Fundamental	1.6 mm	0.079 in	0.063 "	2 mm	20 ppm	0.02 in	0.5 mm	20 ppm	MHz Crystal	6 pF	100 Ohms	32 MHz
Murata Electronics XRCPB25M000F0L00R0	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	Fundamental	1.6 mm	0.079 in	0.063 "	2 mm	100 ppm	0.02 in	0.5 mm	50 ppm	MHz Crystal	6 pF	150 Ohms	25 MHz
Murata Electronics XRCPB31M250F0L00R0	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	Fundamental	1.6 mm	0.079 in	0.063 "	2 mm	100 ppm	0.02 in	0.5 mm	50 ppm	MHz Crystal	6 pF	100 Ohms	31.25 MHz
Murata Electronics XRCPB25M000F0Z00R0	105 ░C	-40 C	4-SMD No Lead	Surface Mount	Fundamental	1.6 mm	0.079 in	0.063 "	2 mm	100 ppm	0.02 in	0.5 mm	100 ppm	MHz Crystal	6 pF	150 Ohms	25 MHz
Murata Electronics XRCPB40M000F4M00R0	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	Fundamental	1.6 mm	0.079 in	0.063 "	2 mm	45 ppm	0.02 in	0.5 mm	40 ppm	MHz Crystal	6 pF	100 Ohms	40 MHz
Murata Electronics XRCPB33M868F0L00R0	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	Fundamental	1.6 mm	0.079 in	0.063 "	2 mm	100 ppm	0.02 in	0.5 mm	50 ppm	MHz Crystal	6 pF	100 Ohms	33.8688 MHz
Murata Electronics XRCPB27M120F2P00R0	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	Fundamental	1.6 mm	0.079 in	0.063 "	2 mm	20 ppm	0.02 in	0.5 mm	20 ppm	MHz Crystal	6 pF	150 Ohms	27.12 MHz
Murata Electronics XRCPB48M000F4M00R0	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	Fundamental	1.6 mm	0.079 in	0.063 "	2 mm	45 ppm	0.02 in	0.5 mm	40 ppm	MHz Crystal	6 pF	100 Ohms	48 MHz
Murata Electronics XRCPB32M000F0L00R0	85 °C	-30 ░C	4-SMD No Lead	Surface Mount	Fundamental	1.6 mm	0.079 in	0.063 "	2 mm	100 ppm	0.02 in	0.5 mm	50 ppm	MHz Crystal	6 pF	100 Ohms	32 MHz
