749808 Series

Catalog

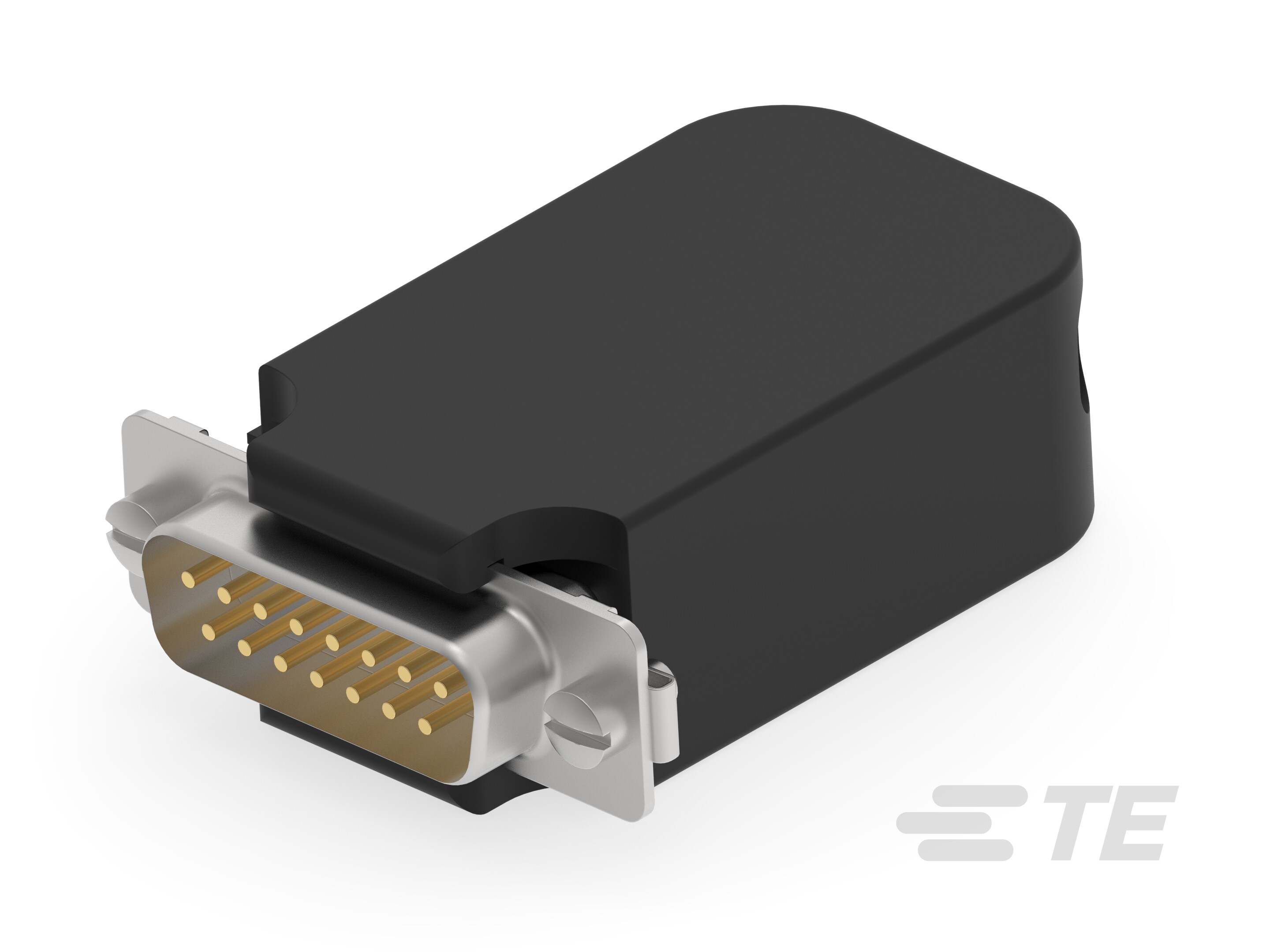

KIT,PLUG,15P,HDP-20 ROHS COMPLIANT: YES

Part	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Voltage Rating	Contact Material	Termination	Contact Finish	Connector Type	Contact Type	Mounting Type	Shell Size, Connector Layout	Number of Rows [custom]	Contact Finish Thickness	Number of Positions	Features	Flange Feature	Connector Style	Current Rating (Amps)	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [x]
TE Connectivity AMP Connectors 749808-9	Glass Filled Nylon Polyamide (PA)	-55 C	105 ░C	Black	250 V	Brass	Crimp	Gold	Plug Male Pins	Signal	Free Hanging (In-Line)	2	2	Flash	15	Grounding Indents	Housing/Shell (Unthreaded)	D-Sub	Varies by Wire Gauge	UL94 V-0
TE Connectivity AMP Connectors 749808-1	Glass Filled Nylon Polyamide (PA)	-55 C	105 ░C	Black	250 V	Brass	Crimp	Gold	Plug Male Pins	Signal	Free Hanging (In-Line)		2	Flash	9	Grounding Indents	Housing/Shell (Unthreaded)	D-Sub	Varies by Wire Gauge	UL94 V-0	1	DE E
TE Connectivity AMP Connectors 749808-3	Glass Filled Nylon Polyamide (PA)	-55 C	105 ░C	Black	250 V	Brass	Crimp	Gold	Plug Male Pins	Signal	Free Hanging (In-Line)		2	Flash	25	Grounding Indents	Housing/Shell (Unthreaded)	D-Sub	Varies by Wire Gauge	UL94 V-0			B DB	3
