A-DSF 25 Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN D-SUB PLUG 25POS IDC
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Color | Contact Material | Termination | Mounting Type | Contact Finish | Contact Finish Thickness | Flange Feature | Material Flammability Rating | Number of Rows [custom] | Features | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Current Rating (Amps) | Number of Positions | Connector Type | Contact Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

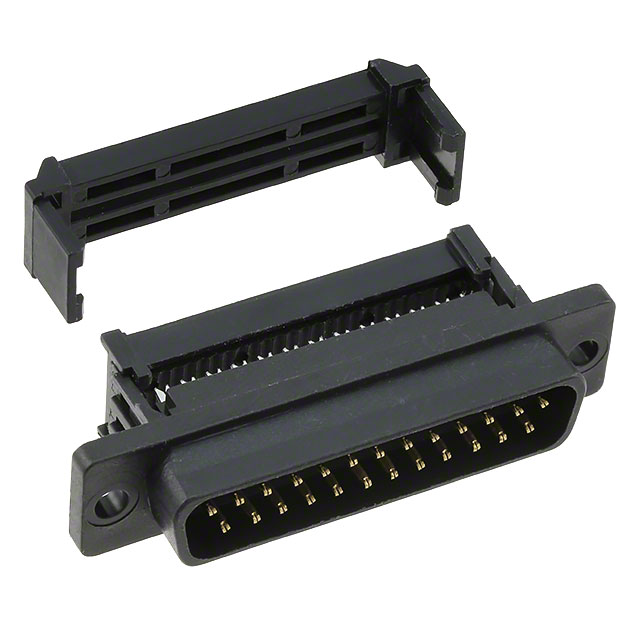

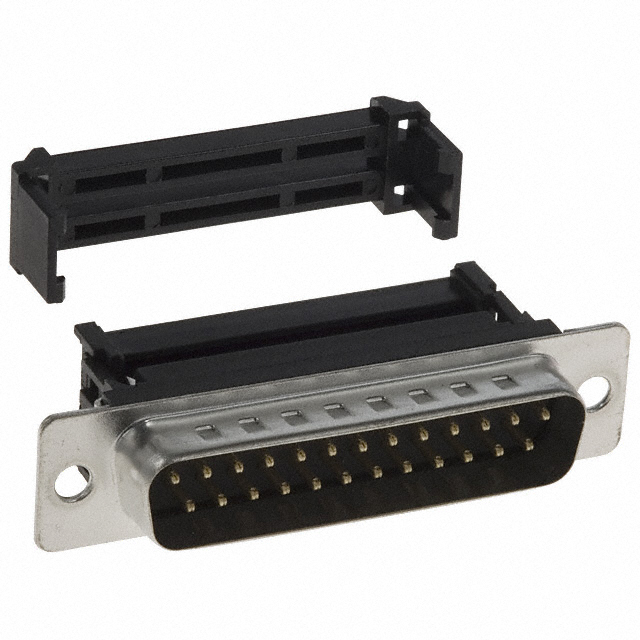

 Assmann WSW Components | -55 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | Black | Copper Alloy | IDC Ribbon Cable | Free Hanging (In-Line) | Gold | Flash | Housing/Shell (Unthreaded) | UL94 V-0 | 2 | Feed Through Grounding Indents Strain Relief | B DB | 3 | 3 A | 25 | Plug Male Pins | Signal | D-Sub |
 Assmann WSW Components | -55 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | Black | Copper Alloy | IDC Ribbon Cable | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | UL94 V-0 | 2 | Feed Through Strain Relief | B DB | 3 | 3 A | 25 | Plug Male Pins | Signal | D-Sub |
