IMCV Series

Pluggable Terminal Blocks 12 Pos 3.81mm pitch Thru Hole Invert Hdr

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 12 Pos 3.81mm pitch Thru Hole Invert Hdr

Catalog

Pluggable Terminal Blocks 12 Pos 3.81mm pitch Thru Hole Invert Hdr

Part	Insulation Height	Insulation Height [z]	Housing Material	Material Flammability Rating	Number of Positions	Current - IEC	Voltage - IEC	Features	Positions Per Level	Voltage - UL	Header Orientation	Current - UL	Mounting Type	Termination Style	Pitch	Pitch	Color	Number of Levels	Contact Mating Finish	Type	Contact Tail Length [x]	Contact Tail Length [x]

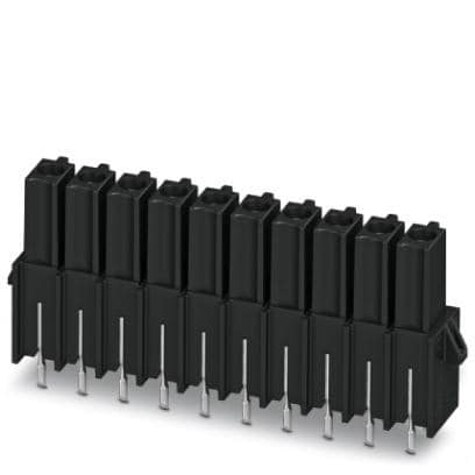

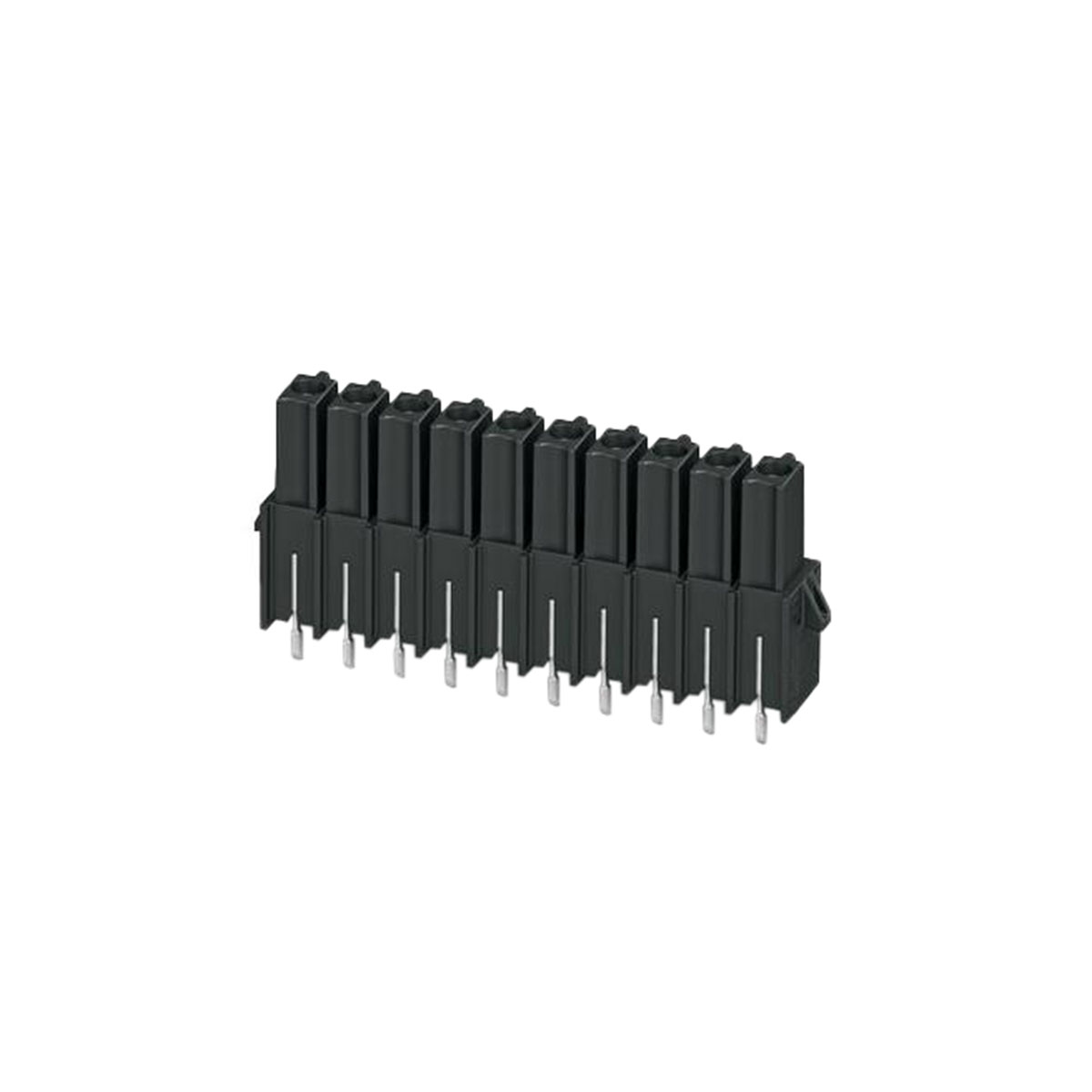

Phoenix Contact 1830867	14.45 mm	0.569 in	Liquid Crystal Polymer (LCP)	UL94 V-0	2	8 A	320 V	Locking Ramp	2	300 V	Vertical	8 A	Through Hole	Solder	3.5 mm	0.138 "	Black	1	Tin
Phoenix Contact 1710637					4	8 A	320 V		4	300 V	Vertical	8 A	Through Hole	Solder	3.81 mm	0.15 in	Red	1	Tin	Header Female Sockets
Phoenix Contact 1830964	14.45 mm	0.569 in	Liquid Crystal Polymer (LCP)	UL94 V-0	12	8 A	320 V	Locking Ramp	12	300 V	Vertical	8 A	Through Hole	Solder	3.5 mm	0.138 "	Black	1	Tin
Phoenix Contact 1875522	14.5 mm	0.571 in	Polyamide (PA) Nylon	UL94 V-0	12	8 A	320 V		12	300 V	Vertical	8 A	Through Hole	Solder	3.81 mm	0.15 in	Green	1	Tin	Header Female Sockets	3.4 mm	0.134 in

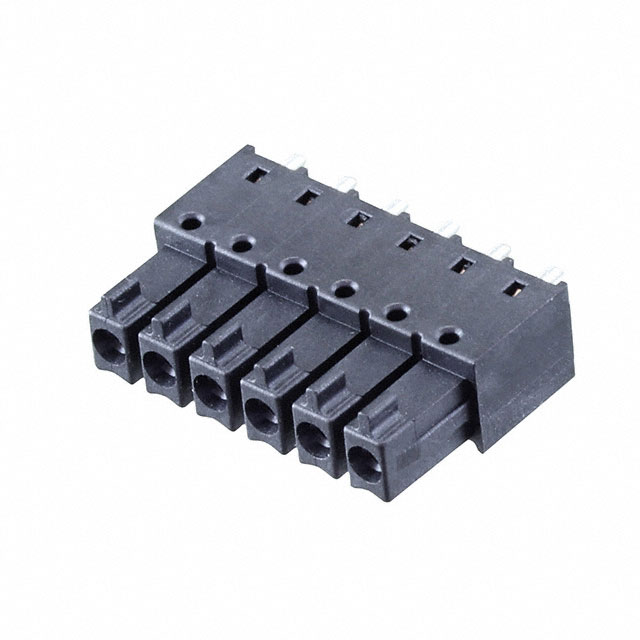

Phoenix Contact 1830757	14.45 mm	0.569 in	Liquid Crystal Polymer (LCP)	UL94 V-0	6	8 A	320 V		6	300 V	Vertical	8 A	Through Hole	Solder	3.5 mm	0.138 "	Black	1	Tin

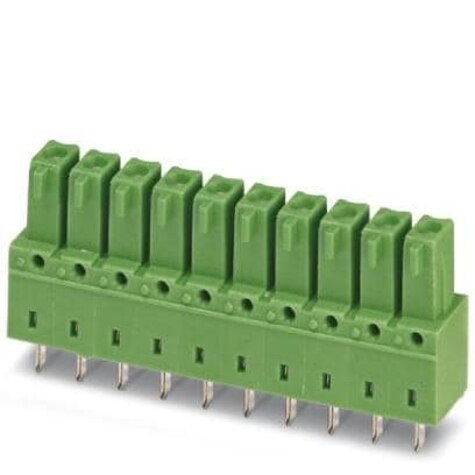

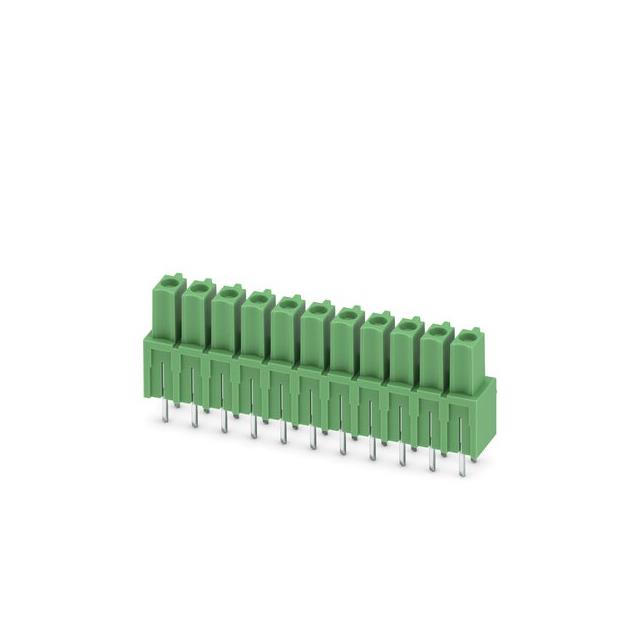

Phoenix Contact 1875519	14.5 mm	0.571 in	Polyamide (PA) Nylon	UL94 V-0	11	8 A	320 V		11	300 V	Vertical	8 A	Through Hole	Solder	3.81 mm	0.15 in	Green	1	Tin	Header Female Sockets	3.4 mm	0.134 in
Phoenix Contact 1830883	14.45 mm	0.569 in	Liquid Crystal Polymer (LCP)	UL94 V-0	4	8 A	320 V	Locking Ramp	4	300 V	Vertical	8 A	Through Hole	Solder	3.5 mm	0.138 "	Black	1	Tin
