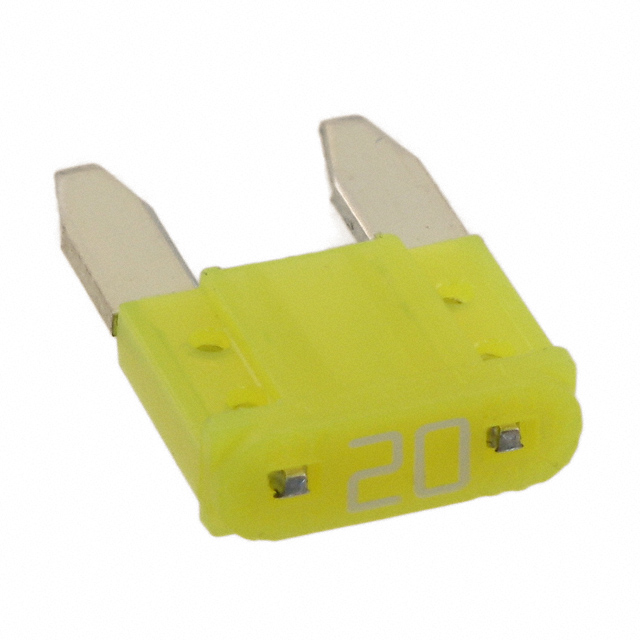

Fuse - Mini 58VDC 20A 3000 pc
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Response Time | Voltage Rating - DC | Fuse Type | Package / Case | DC Cold Resistance | Breaking Capacity @ Rated Voltage | Mounting Type | Melting I²t | Operating Temperature [Max] | Operating Temperature [Min] | Color | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 3.8 mm | 0.429 " | 8.8 mm | 0.15 " | 0.346 inches | 10.9 mm | Fast Blow | 58 VDC | Automotive | Blade Miniature | 0.00321 Ohms | 1 kA | Requires Holder | 380 | 125 °C | -40 °C | Yellow | 20 A |
Key Features
• Fast-acting
• Yellow housing indicates 20 A rating
• Silver-plated zinc alloy terminals
• Net weight 0.57 g ±5 %
• Complies with SAE J2077, SAE 2576, and ISO 8820-3
• Recognized as a UL 248 Special Purpose Fuse
Description
AI
This 20 A MINI® 58V blade fuses deliver space and weight savings while ensuring reliable circuit protection.
