NAR161 Series

Catalog

DISPLAYS MODULE 1DIGIT 8LED RED CA 10-PIN DIP MODULE TRAY

Part	Display Type	Package / Case	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Power Dissipation (Max) [Max]	Color	Current - Test	Voltage - Forward (Vf) (Typ)	Number of Characters	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Millicandela Rating

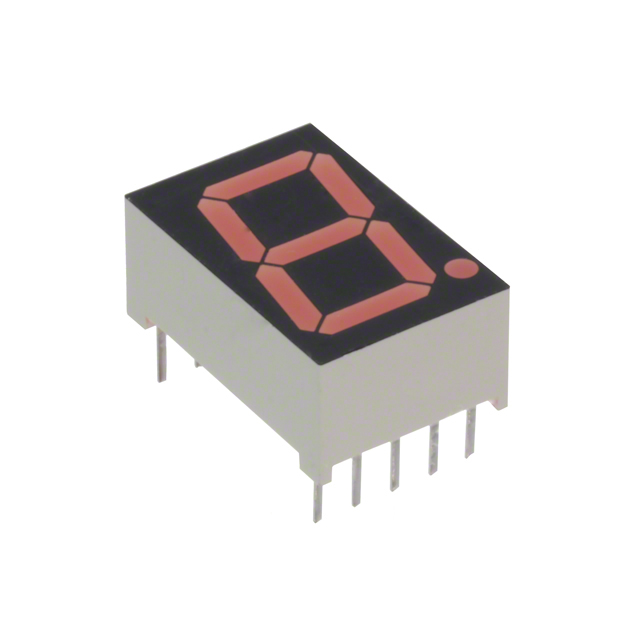

Stanley Electric Co NAR161H-F	7-Segment	0.6 in 15.24 mm	10-DIP	0.315 in	19 mm	12.5 mm	8 mm	0.748 in	0.492 "	37 mW	Red	10 mA	2 V	1	Common Anode	0.6 in	15.24 mm
Stanley Electric Co NAR161-B-AL

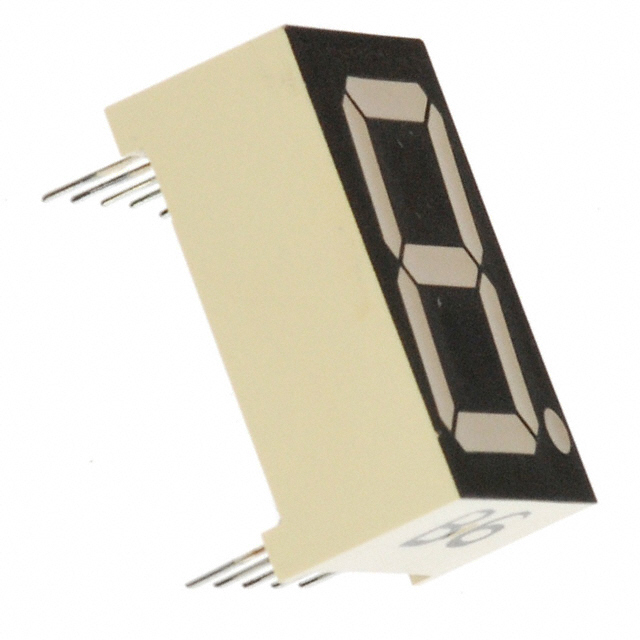

Stanley Electric Co NAR161B	7-Segment	0.6 in 15.24 mm	10-DIP	0.315 in	19 mm	12.5 mm	8 mm	0.748 in	0.492 "		Red	20 mA	1.7 V	1	Common Anode	0.6 in	15.24 mm	660 nm	12 mcd
