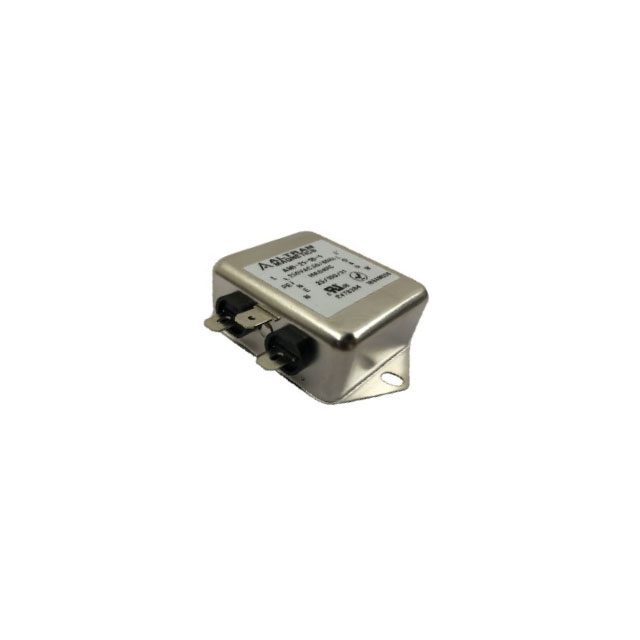

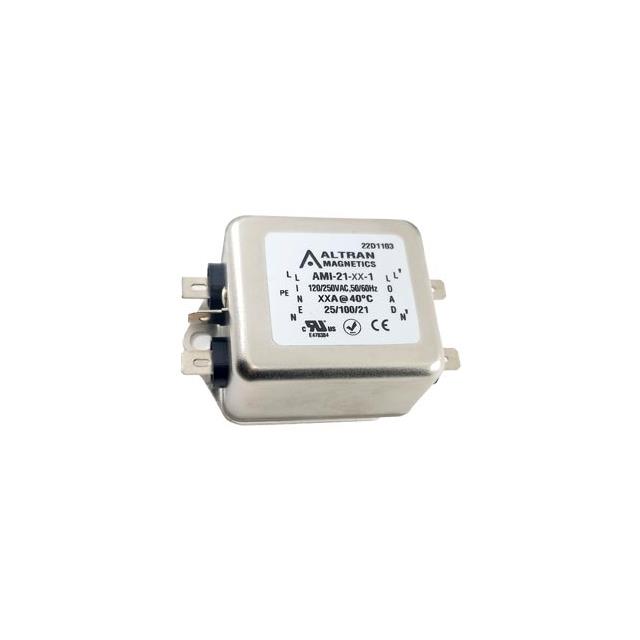

AMI-21A Series

Catalog

LINE FILTER 250VAC 12A CHASSIS

Part	Inductance	Termination Style	Voltage - Rated AC	Mounting Type	Filter Type	Approval Agency	Current	Applications	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Operating
Altran Magnetics, LLC AMI-21A-12-1	700 µH	Quick Connect	250 V	Chassis Mount	Single Phase	CE cURus	12 A	Safety	Single Stage	100 °C	-25 °C	DC ~ 400Hz
Altran Magnetics, LLC AMI-21A-60-6A	1 mH	Threaded Post (M4)	250 V	Chassis Mount	Single Phase	CE cURus	60 A	Safety	Single Stage	100 °C	-25 °C	DC ~ 400Hz
Altran Magnetics, LLC AMI-21A-20-6	700 µH	Quick Connect	250 V	Chassis Mount	Single Phase	CE cURus	20 A	Safety	Single Stage	100 °C	-25 °C	DC ~ 400Hz
Altran Magnetics, LLC AMI-21A-3-3	2.5 mH	Quick Connect	250 V	Chassis Mount	Single Phase	CE cURus	3 A	Safety	Single Stage	100 °C	-25 °C	DC ~ 400Hz
Altran Magnetics, LLC AMI-21A-10-3	800 µH	Quick Connect	250 V	Chassis Mount	Single Phase	CE cURus	10 A	Safety	Single Stage	100 °C	-25 °C	DC ~ 400Hz
Altran Magnetics, LLC AMI-21A-10-1	800 µH	Quick Connect	250 V	Chassis Mount	Single Phase	CE cURus	10 A	Safety	Single Stage	100 °C	-25 °C	DC ~ 400Hz
Altran Magnetics, LLC AMI-21A-3-1	2.5 mH	Quick Connect	250 V	Chassis Mount	Single Phase	CE cURus	3 A	Safety	Single Stage	100 °C	-25 °C	DC ~ 400Hz
Altran Magnetics, LLC AMI-21A-20-1	700 µH	Quick Connect	250 V	Chassis Mount	Single Phase	CE cURus	20 A	Safety	Single Stage	100 °C	-25 °C	DC ~ 400Hz
Altran Magnetics, LLC AMI-21A-20-3	700 µH	Quick Connect	250 V	Chassis Mount	Single Phase	CE cURus	20 A	Safety	Single Stage	100 °C	-25 °C	DC ~ 400Hz
Altran Magnetics, LLC AMI-21A-1-3	12 mH	Quick Connect	250 V	Chassis Mount	Single Phase	CE cURus	1 A	Safety	Single Stage	100 °C	-25 °C	DC ~ 400Hz
