USB Connectors Upright-USB A Orang G-30u Plt-Cont HiRet
USB Connectors Upright-USB A Orang G-30u Plt-Cont HiRet
| Part | Contact Finish | Insulation Color | Shell/Shielding Material | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shielding | Termination | Voltage - Rated | Number of Ports | Mounting Type | Gender | Number of Contacts | Mounting Feature | Mating Cycles | Features | Current Rating (Amps) | Number of Contacts [custom] | Specifications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

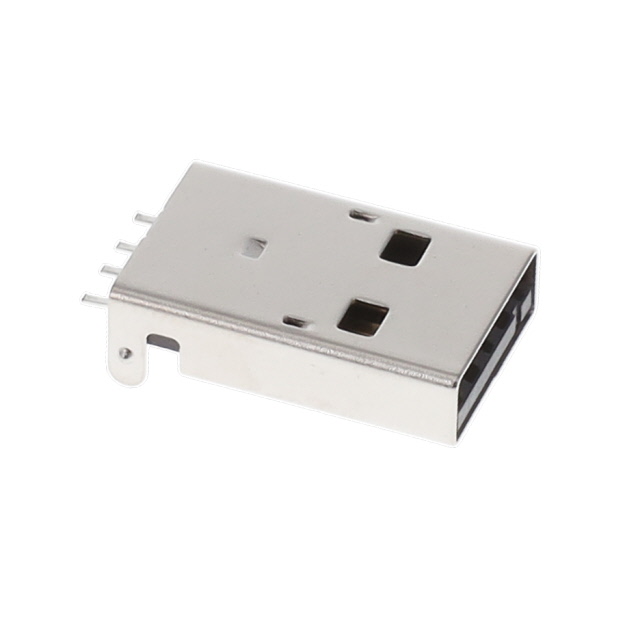

 Kycon, Inc. | Gold | Black | Copper Alloy | UL94 V-0 | -55 C | 85 °C | USB-A (USB TYPE-A) | Shielded | Solder | 30 VAC | 1 | Surface Mount Right Angle Through Hole | Plug | 4 | Horizontal | |||||

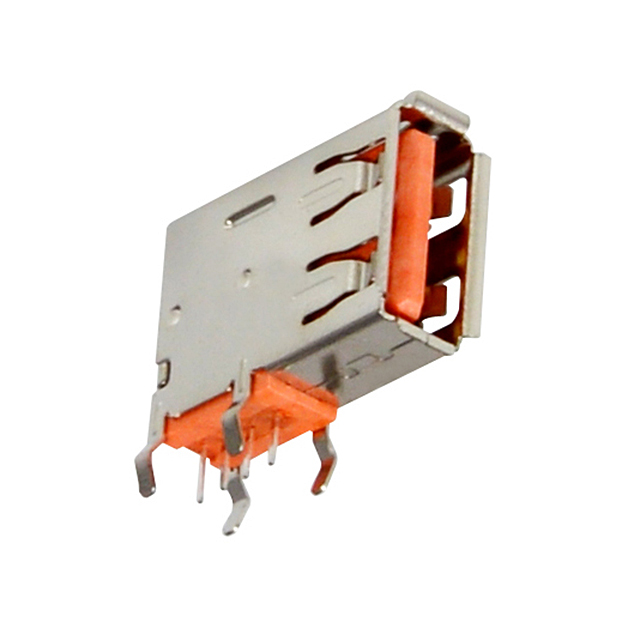

 Kycon, Inc. | Gold | Orange | Stainless Steel | UL94 V-0 | -55 C | 85 °C | USB-A (USB TYPE-A) | Unshielded | Solder | 30 VAC | 1 | Right Angle Through Hole | Receptacle | 4 | Flag Vertical | 1500 | Board Lock | 1.5 A | ||

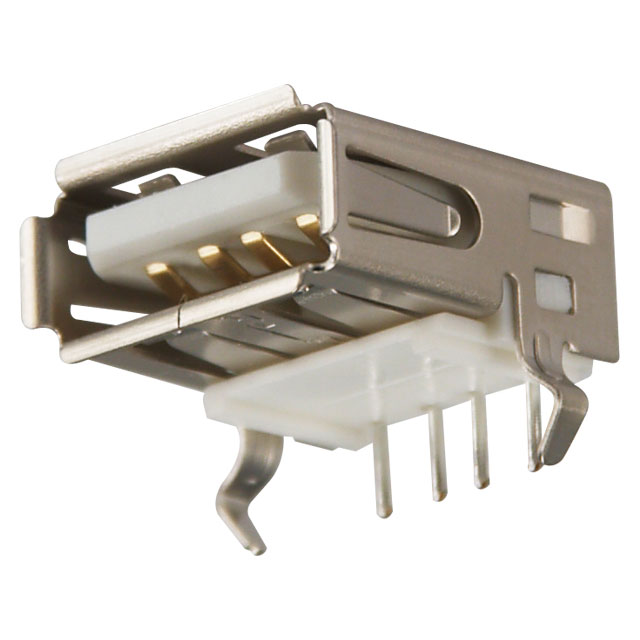

 Kycon, Inc. | Gold | White | Copper Alloy | UL94 V-0 | -40 C | 85 °C | USB-A (USB TYPE-A) | Shielded | Solder | 30 VAC | 1 | Right Angle Through Hole | Receptacle | 4 | Horizontal | 1500 | Board Lock | 1.5 A | ||

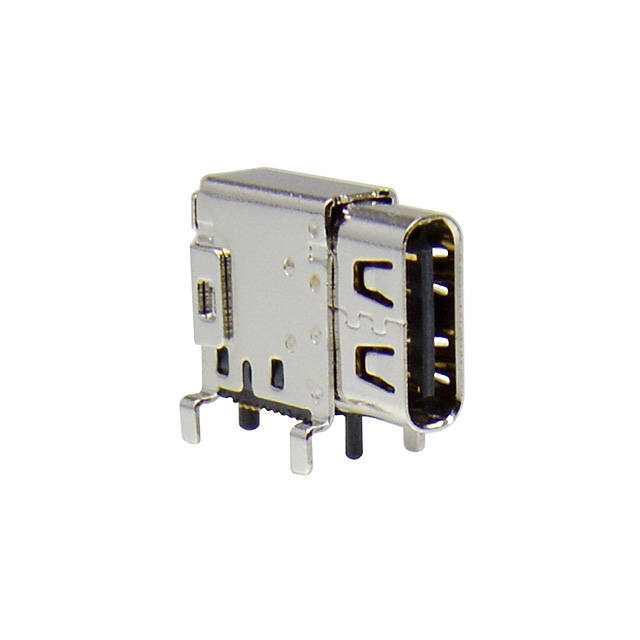

 Kycon, Inc. | Gold | Black | Stainless Steel | UL94 V-0 | -30 ░C | 85 °C | USB-C (USB TYPE-C) | Shielded | Solder | 1 | Right Angle Through Hole | Receptacle | Horizontal | 10000 | 0.25 A 1.25 A 5 A 6.25 A | 24 | USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1)) | |||
 Kycon, Inc. | -40 C | 85 °C | USB-B (USB TYPE-B) | Shielded | Solder | 30 VAC | 1 | Right Angle Through Hole | Receptacle | 4 | Horizontal | Board Lock | ||||||||

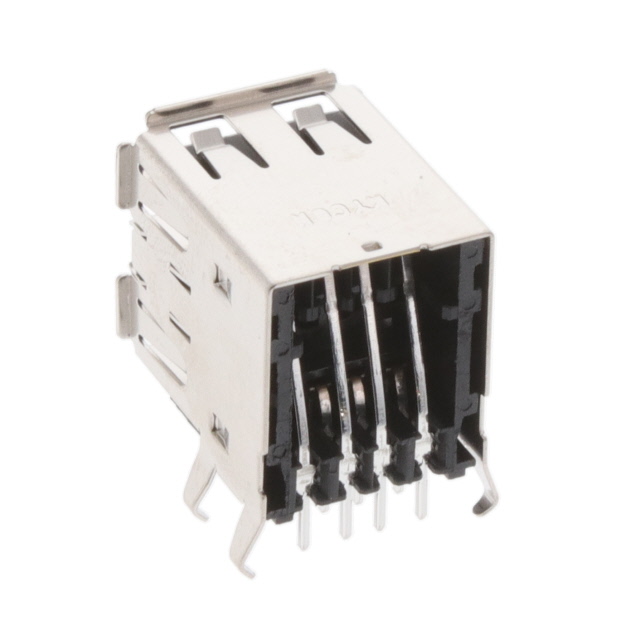

 Kycon, Inc. | Gold | Black | Brass | UL94 V-0 | -40 C | 85 °C | USB-A (USB TYPE-A) Stacked | Shielded | Solder | 30 VAC | 2 | Right Angle Through Hole | Receptacle | 8 | Horizontal | 1500 | Board Lock | |||

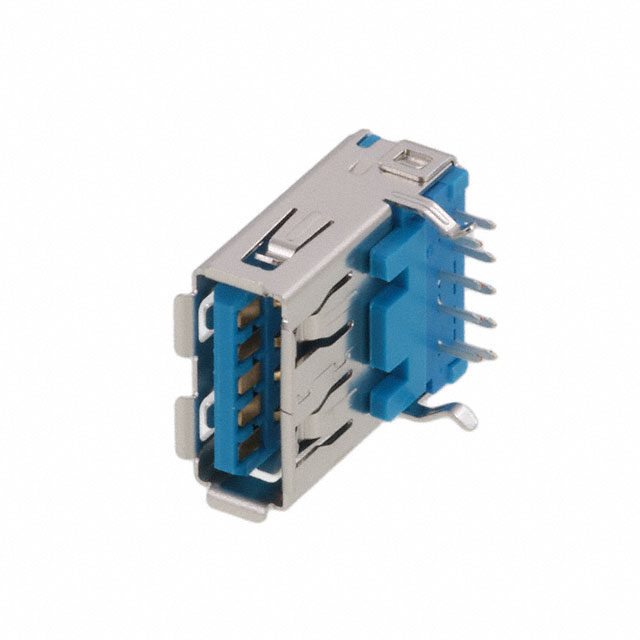

 Kycon, Inc. | Gold | Blue | Brass | UL94 V-0 | -55 C | 85 °C | USB-A (USB TYPE-A) | Shielded | Solder | 1 | Right Angle Through Hole | Receptacle | 9 | Horizontal | 1500 | 0.25 A 1.8 A | USB 3.2 Gen 1 (USB 3.1 Gen 1 Superspeed (USB 3.0)) | |||
 Kycon, Inc. | -40 C | 85 °C | USB-A (USB TYPE-A) | Shielded | Solder | 30 VAC | 1 | Surface Mount Right Angle Through Hole | Receptacle | 4 | Horizontal | Board Lock | ||||||||
Kycon, Inc. | Gold | Black | Brass | UL94 V-0 | -40 C | 85 °C | USB-B (USB TYPE-B) | Shielded | Solder | 30 VAC | 1 | Right Angle Surface Mount | Receptacle | 4 | Horizontal | 1500 | Board Guide Solder Retention | |||
 Kycon, Inc. | Gold | Black | Copper Alloy | UL94 V-0 | -55 C | 85 °C | USB-A (USB TYPE-A) | Shielded | Solder | 30 VAC | 1 | Surface Mount Right Angle Through Hole | Plug | 4 | Horizontal |
