BZM27/Z Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Material Flammability Rating	Voltage Rating - Appliance Inlet	Connector Style	Switch Features	Filter Type	Connector Type	Approval Agency	Current Rating - Appliance Inlet	Panel Thickness	Panel Thickness	Termination	Termination	Termination
BULGIN LIMITED BZM27/Z0000/63A	21.3 mm	54.9 mm	Panel Mount Snap-In	UL94 V-0	250 VAC	IEC 320-C14	Illuminated Switch On-Off	Unfiltered - Commercial	Receptacle Male Blades - Module	CSA ENEC UL VDE	10 A	1 mm	0.039 in	6.3 mm	Quick Connect	0.25 "

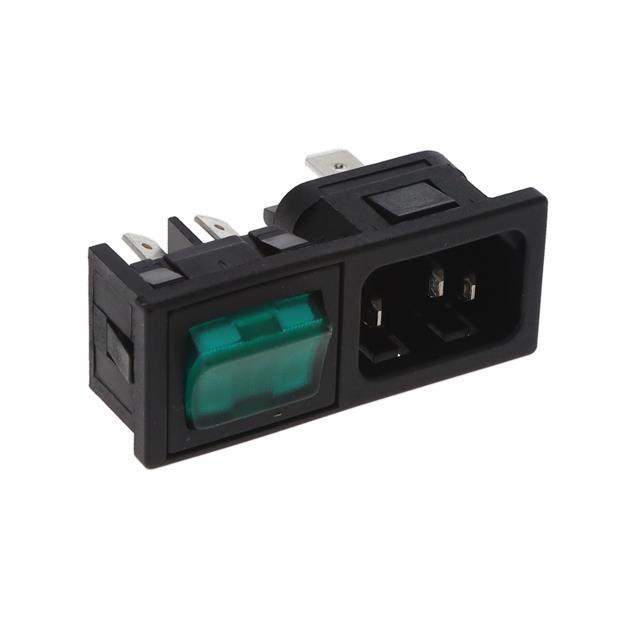

BULGIN LIMITED BZM27/Z0000/63B	21.3 mm	54.9 mm	Panel Mount Snap-In	UL94 V-0	250 VAC	IEC 320-C14	Illuminated Switch On-Off	Unfiltered - Commercial	Receptacle Male Blades - Module	CSA ENEC UL VDE	10 A	1.5 mm	0.059 in	6.3 mm	Quick Connect	0.25 "
BULGIN LIMITED BZM27/Z0000/57A	21.3 mm	54.9 mm	Panel Mount Snap-In	UL94 V-0	250 VAC	IEC 320-C14	Switch On-Off	Unfiltered - Commercial	Receptacle Male Blades - Module	CSA ENEC UL VDE	10 A	1 mm	0.039 in	6.3 mm	Quick Connect	0.25 "

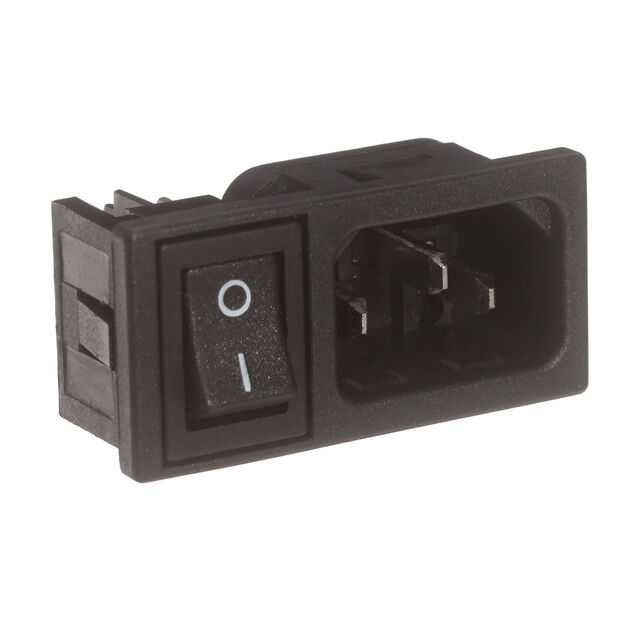

BULGIN LIMITED BZM27/Z0000/53A	21.3 mm	45.9 mm	Panel Mount Snap-In	UL94 V-0	250 VAC	IEC 320-C14	Switch On-Off	Unfiltered - Commercial	Receptacle Male Blades - Module	CSA ENEC UL VDE	10 A	1 mm	0.039 in	6.3 mm	Quick Connect	0.25 "
BULGIN LIMITED BZM27/Z0000/57D	21.3 mm	54.9 mm	Panel Mount Snap-In	UL94 V-0	250 VAC	IEC 320-C14	Switch On-Off	Unfiltered - Commercial	Receptacle Male Blades - Module	CSA ENEC UL VDE	10 A	3 mm	0.118 "	6.3 mm	Quick Connect	0.25 "
