25103 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

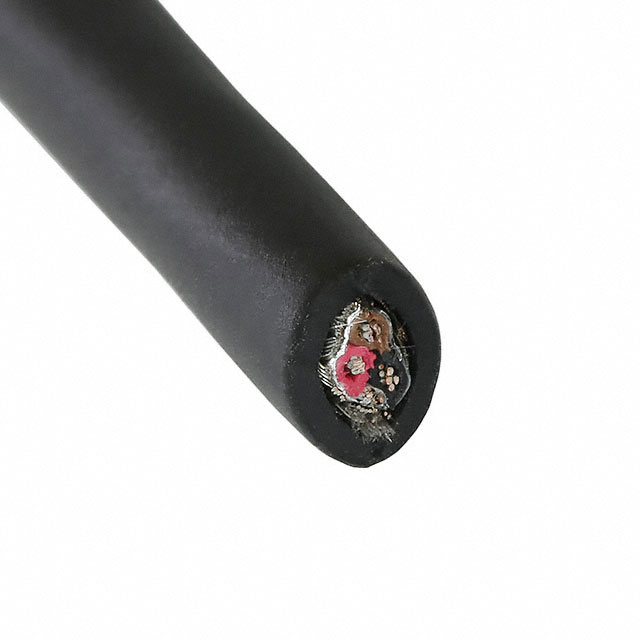

CABLE 3COND 22AWG BLK SHLD 100'
| Part | Shield Coverage | Shield Material | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Wire Gauge | Number of Conductors | Shield Type | Features | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Conductor Insulation | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Copper Tinned | 30 AWG | 7 | Black | -30 ░C | 90 °C | Multi-Conductor | 22 AWG | 3 | Braid Foil | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | Polyurethane (PU) | 300 VDC | 5.18 mm | 0.204 " |
