ATUM Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

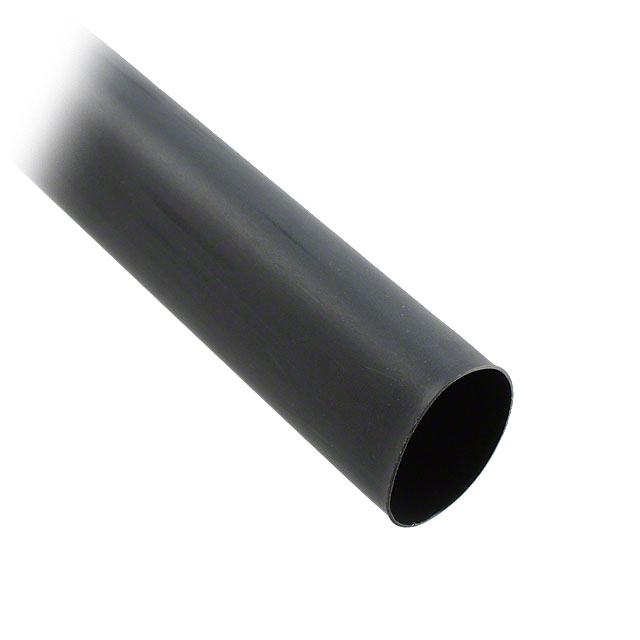

HEATSHRINK DUAL WALL 24MM
| Part | Color | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Length [x] | Length [x] | Recovered Wall Thickness | Recovered Wall Thickness | Type | Shrinkage Ratio | Shelf Life | Shrink Temperature | Features | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered [diameter] | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Material | Length | Length | Length | Inner Diameter - Supplied | Inner Diameter - Recovered | Inner Diameter - Recovered |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | 0 °C | 35 °C | 32 °F | 95 °F | 4 ft | 1.22 m | 2.25 mm | 0.088 in | Tubing Semi-Flexible | 4 to 1 | 60 Months | 80 °C | Adhesive Lined Flame Retardant Fluid Resistant | 5.99 mm | 0.236 in | 0.945 " | 24 mm | -55 C | 110 °C | Polyolefin (PO) Irradiated | ||||||
 TE Connectivity AMP Connectors | Black | 0 °C | 35 °C | 32 °F | 95 °F | 2.25 mm | 0.088 in | Tubing Semi-Flexible | 4 to 1 | 60 Months | 80 °C | Adhesive Lined Flame Retardant | 5.99 mm | 0.236 in | 0.945 " | 24 mm | -55 C | 110 °C | Polyolefin (PO) Irradiated | ||||||||
 TE Connectivity AMP Connectors | Black | 0 °C | 35 °C | 32 °F | 95 °F | 2.54 mm | 0.1 in | Tubing Semi-Flexible | 3 to 1 | 60 Months | 80 °C | Adhesive Lined Flame Retardant Fluid Resistant | 13 mm | 0.512 in | 1.575 " | -55 C | 110 °C | Polyolefin (PO) Irradiated | Enter Number of Meters in Order Quantity | 60 m | 196.8 ' | 40.01 mm | |||||
TE Connectivity AMP Connectors | Black | 0 °C | 35 °C | 32 °F | 95 °F | 4 ft | 1.22 m | 2.25 mm | 0.088 in | Tubing Semi-Flexible | 4 to 1 | 60 Months | 80 °C | Adhesive Lined Flame Retardant Fluid Resistant | 5.99 mm | 0.236 in | 0.945 " | 24 mm | -55 C | 110 °C | Polyolefin (PO) Irradiated | ||||||
 TE Connectivity AMP Connectors | Black | 0 °C | 35 °C | 32 °F | 95 °F | 4 ft | 1.22 m | 1.78 mm | 0.07 in | Tubing Semi-Flexible | 4 to 1 | 60 Months | 80 °C | Adhesive Lined Flame Retardant Fluid Resistant | 3.99 mm | 0.157 " | 0.63 in | 16 mm | -55 C | 110 °C | Polyolefin (PO) Irradiated | ||||||
 TE Connectivity AMP Connectors | Black | 0 °C | 35 °C | 32 °F | 95 °F | 4 ft | 1.22 m | 1.4 mm | 0.055 in | Tubing Semi-Flexible | 3 to 1 | 60 Months | 80 °C | Adhesive Lined Flame Retardant Fluid Resistant | 2.99 mm | 0.118 in | 0.354 in | 8.99 mm | -55 C | 110 °C | Polyolefin (PO) Irradiated | ||||||
TE Connectivity AMP Connectors | Black | 0 °C | 35 °C | 32 °F | 95 °F | 4 ft | 1.22 m | 1.09 mm | 0.043 in | Tubing Semi-Flexible | 3 to 1 | 60 Months | 80 °C | Adhesive Lined Flame Retardant Fluid Resistant | 0.177 in | 4.5 mm | -55 C | 110 °C | Polyolefin (PO) Irradiated | 1.5 mm | 0.059 " | ||||||
TE Connectivity AMP Connectors | Clear | 0 °C | 35 °C | 32 °F | 95 °F | 4 ft | 1.22 m | 2.54 mm | 0.1 in | Tubing Semi-Flexible | 3 to 1 | 60 Months | 80 °C | Adhesive Lined Fluid Resistant | 13 mm | 0.512 in | 1.575 " | -55 C | 110 °C | Polyolefin | 40.01 mm | ||||||
TE Connectivity AMP Connectors | Black | 0 °C | 35 °C | 32 °F | 95 °F | 4 ft | 1.22 m | 1.4 mm | 0.055 in | Tubing Semi-Flexible | 3 to 1 | 60 Months | 80 °C | Adhesive Lined Flame Retardant Fluid Resistant | 2.99 mm | 0.118 in | 0.354 in | 8.99 mm | -55 C | 110 °C | Polyolefin (PO) Irradiated | ||||||
TE Connectivity AMP Connectors | Black | 0 °C | 35 °C | 32 °F | 95 °F | 2.54 mm | 0.1 in | Tubing Semi-Flexible | 4 to 1 | 60 Months | 80 °C | Adhesive Lined Flame Retardant | 8 mm | 0.315 in | 1.26 in | 32 mm | -55 C | 110 °C | Polyolefin (PO) Irradiated |
