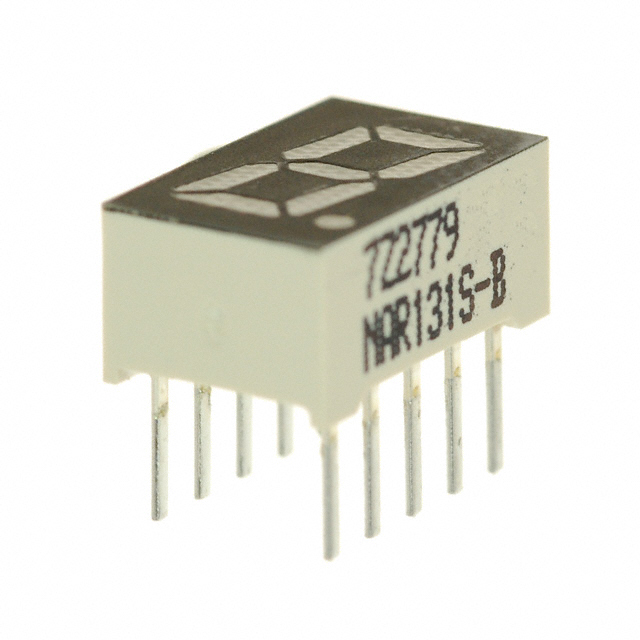

NAR131 Series
Manufacturer: Stanley Electric Co
Beta
⌘K
LED NUMERIC DISPLAY
| Part | Digit/Alpha Size | Digit/Alpha Size | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Wavelength - Peak | Common Pin | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Power Dissipation (Max) [Max] | Number of Characters | Current - Test | Package / Case | Package / Case | Package / Case | Display Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | ||||||||||||||||||||
 Stanley Electric Co | 0.31 in | 8 mm | 5 mm | 0.276 in | 11 mm | 7 mm | 0.433 in | 0.197 " | 660 nm | Common Anode | 1.7 V | 2.8 mcd | 40 mW | 1 | 10 mA | 5.3 mm | 10-DIP | 0.209 in | 7-Segment | Red |
Stanley Electric Co |
