HSCP Series

Pluggable Terminal Blocks HSCP-SP 2,5-1U-TT BU/RD 7035

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks HSCP-SP 2,5-1U-TT BU/RD 7035

Catalog

Pluggable Terminal Blocks HSCP-SP 2,5-1U-TT BU/RD 7035

Part	Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Pitch	Pitch	Contact Mating Finish	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Levels	Number of Positions	Current - UL	Type	Voltage - UL	Voltage - IEC	Current - IEC	Plug Wire Entry	Termination Style	Positions Per Level	Insulation Height [z]	Insulation Height [z]	Contact Material	Housing Material	Wire Strip Length	Material Flammability Rating	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
Phoenix Contact 2202606	Gray	Free Hanging (In-Line)	-40 C	105 ░C	Push Button Actuated	14 AWG	24 AWG	0.197 in	5 mm	Tin	1.5 mm²	0.2 mm²	2	4	8 A	Plug Female Sockets	300 V	320 V	8 A	180 °	Push-In Spring Screwless - Leg Spring	2

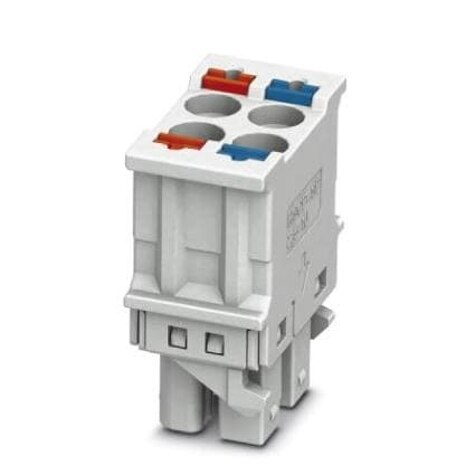

Phoenix Contact 2203194	Gray	Free Hanging (In-Line)	-40 C	105 ░C	Push Button Actuated	16 AWG	24 AWG	0.197 in	5 mm	Tin	1.5 mm²	0.2 mm²	2	8	8 A	Plug Female Sockets	300 V	300 V	8 A	180 °	Push-In Spring Screwless - Leg Spring	4	0.429 in	10.9 mm	Copper Alloy	Polyamide (PA) Nylon	10 mm	UL94 V-0

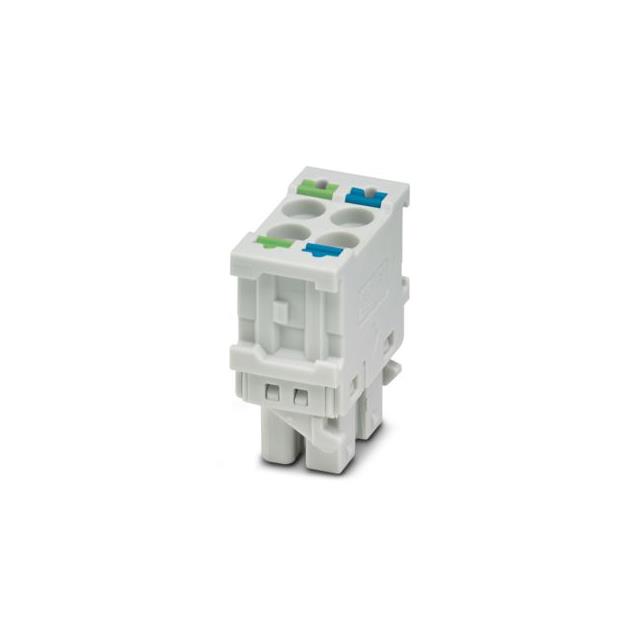

Phoenix Contact 2203195	Gray	Free Hanging (In-Line)	-40 C	105 ░C	Push Button Actuated	14 AWG	24 AWG	0.197 in	5 mm	Tin	1.5 mm²	0.2 mm²	2	8	8 A	Plug Female Sockets	300 V	320 V	8 A	180 °	Push-In Spring Screwless - Leg Spring	4	0.429 in	10.9 mm	Copper Alloy	Polyamide (PA) Nylon	10 mm	UL94 V-0	1.5 mm˛	0.2 mm˛
