CS5381 Series

Catalog

IC ADC 24BIT SIGMA-DELTA 24SOIC

Part	Features	Voltage - Supply, Analog	Number of Inputs	Number of Bits	Reference Type	Configuration	Data Interface	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Architecture	Voltage - Supply, Digital [Max] [custom]	Voltage - Supply, Digital [Min] [custom]	Package / Case	Package / Case [custom]	Package / Case [custom]	Supplier Device Package	Sampling Rate (Per Second)	Input Type	Number of A/D Converters	Package / Case [x]	Package / Case [x]	Supplied Contents	Power (Typ) @ Conditions	Contents	Utilized IC / Part	Input Range	Sampling Rate (Per Second)
Cirrus Logic Inc. CS5381-KSZR	Simultaneous Sampling	5 V	2	24	Internal	ADC	I2S	70 °C	-10 °C	Surface Mount	Sigma-Delta	5 V	3.3 V	24-SOIC	7.5 mm	0.295 in	24-SOIC	216 k samples per second	Differential	2
Cirrus Logic Inc. CS5381-KZZR	Simultaneous Sampling	5 V	2	24	Internal	ADC	I2S	70 °C	-10 °C	Surface Mount	Sigma-Delta	5 V	3.3 V	24-TSSOP			24-TSSOP	216 k samples per second	Differential	2	4.4 mm	0.173 in

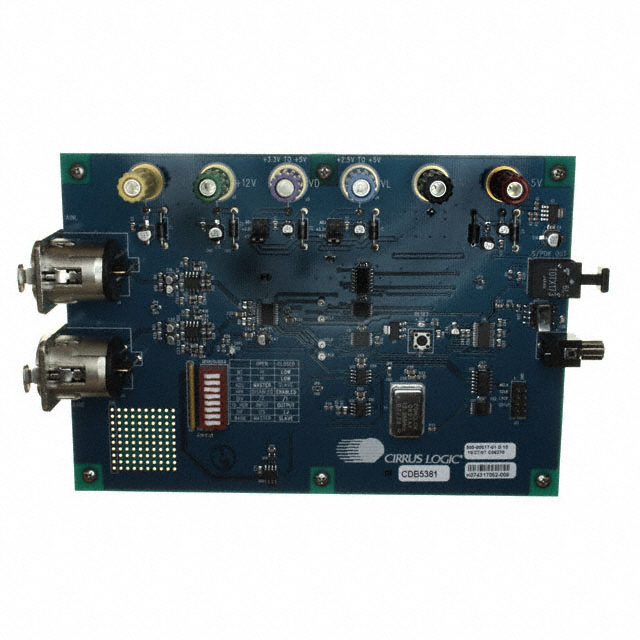

Cirrus Logic Inc. CDB5381				24			Serial													2			Board(s)	360 mW	Board(s)	CS5381	6.1 Vpp	192k
Cirrus Logic Inc. CS5381-KSZ	Simultaneous Sampling	5 V	2	24	Internal	ADC	I2S	70 °C	-10 °C	Surface Mount	Sigma-Delta	5 V	3.3 V	24-SOIC	7.5 mm	0.295 in	24-SOIC	216 k samples per second	Differential	2
Cirrus Logic Inc. CS5381-KZZ	Simultaneous Sampling	5 V	2	24	Internal	ADC	I2S	70 °C	-10 °C	Surface Mount	Sigma-Delta	5 V	3.3 V	24-TSSOP			24-TSSOP	216 k samples per second	Differential	2	4.4 mm	0.173 in
