NRPN242 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 48POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Termination	Voltage Rating	Mounting Type	Number of Rows [custom]	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Pitch - Mating	Pitch - Mating	Shrouding	Contact Shape	Features	Connector Type	Fastening Type	Number of Positions	Insulation Material	Contact Finish - Mating	Contact Finish - Post	Insulation Color	Contact Length - Post [custom]	Contact Length - Post	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]
Sullins Connector Solutions NRPN242MAMP-RC	Flash	Flash	0.059 in	1.5 mm	UL94 V-0	Solder	150 VDC	Surface Mount	2	All	2 mm	0.079 in	Male Pin	0.141 in	3.6 mm	2 A	Board to Board Cable	-40 C	105 ░C	Brass	0.079 "	2 mm	Unshrouded	Square	Board Guide	Header	Push-Pull	48	Nylon 6T Polyamide (PA6T)	Gold	Gold
Sullins Connector Solutions NRPN242PAEN-RC	Flash	Flash			UL94 V-0	Solder	150 VDC	Through Hole	2	All	2 mm	0.079 in	Male Pin	0.141 in	3.6 mm	2 A	Board to Board Cable	-40 C	105 ░C	Brass	0.079 "	2 mm	Unshrouded	Square		Header	Push-Pull	48	Nylon 6T Polyamide (PA6T)	Gold	Gold	Black	0.11 in	2.79 mm	0.33 in	8.38 mm	2 mm	0.079 in

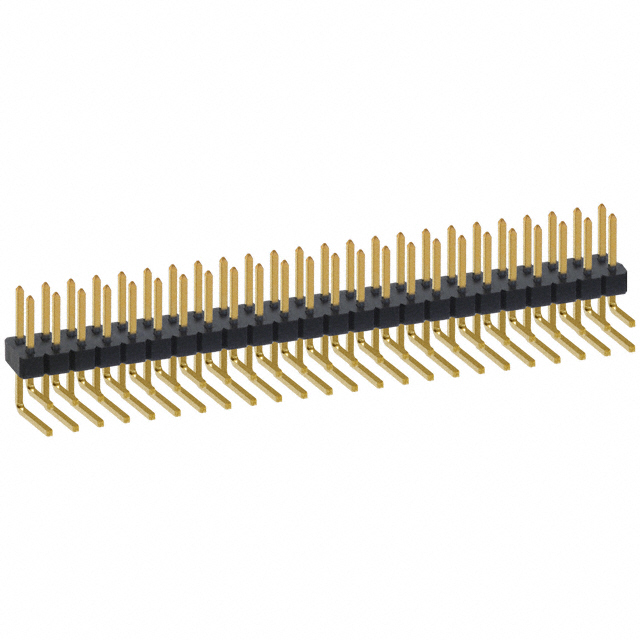

Sullins Connector Solutions NRPN242PARN-RC	Flash	Flash			UL94 V-0	Solder	150 VDC	Right Angle Through Hole	2	All	2 mm	0.079 in	Male Pin	0.141 in	3.6 mm	2 A	Board to Board Cable	-40 C	105 ░C	Brass	0.079 "	2 mm	Unshrouded	Square		Header	Push-Pull	48	Nylon 6T Polyamide (PA6T)	Gold	Gold	Black	0.11 in	2.79 mm			4 mm	0.157 in
Sullins Connector Solutions NRPN242MAMS-RC	Flash	Flash	0.059 in	1.5 mm	UL94 V-0	Solder	150 VDC	Surface Mount	2	All	2 mm	0.079 in	Male Pin	0.141 in	3.6 mm	2 A	Board to Board Cable	-40 C	105 ░C	Brass	0.079 "	2 mm	Unshrouded	Square		Header	Push-Pull	48	Nylon 6T Polyamide (PA6T)	Gold	Gold	Black
