CBS-12 Series
Manufacturer: Essentra Components
Beta
⌘K

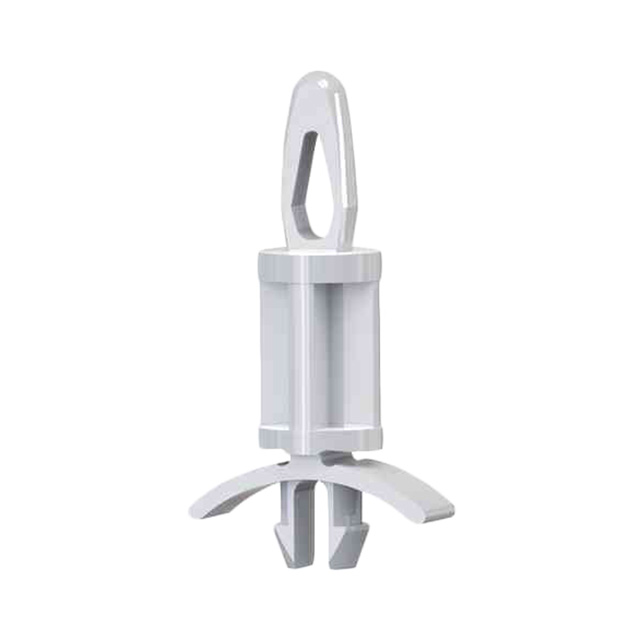

BRD SPT SNAP FIT/LOCK NYLON 3/4"
| Part | Material | Support Hole Diameter | Support Hole Diameter | Support Hole Diameter | Features | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Mounting Type | Holding Type | Between Board Height | Between Board Height | Between Board Height | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Max] | Mounting Panel Thickness [Max] | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | Nylon | 3.96 mm | 5 32" | 0.156 in | Winged | 1.57 mm | 0.062 in | 0.0625 in | Snap Lock | Snap Fit | 19.05 mm | 0.75 " | 0.75 " | 0.1875 in | 0.187 in | 4.75 mm | 0.79 mm | 0.031 in | 0.078 " | 1.98 mm | 1.35 in | 34.3 mm |
 Essentra Components | Nylon | 3.96 mm | 5 32" | 0.156 in | Winged | 1.57 mm | 0.062 in | 0.0625 in | Snap Lock | Snap Fit | 19.05 mm | 0.75 " | 0.75 " | 0.1875 in | 0.187 in | 4.75 mm | 0.79 mm | 0.031 in | 0.078 " | 1.98 mm | 1.35 in | 34.3 mm |
