IDPV-45 Series

Catalog

LED POWER SUPPLIES

Part	Mounting Type	Voltage - Output	Dimming	Features	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Topology	Voltage - Input (Min) [Min]	Approval Agency	Current - Output (Max) [Max]	Voltage - Isolation	Type	Termination Style
MEAN WELL USA Inc. IDPV-45-36

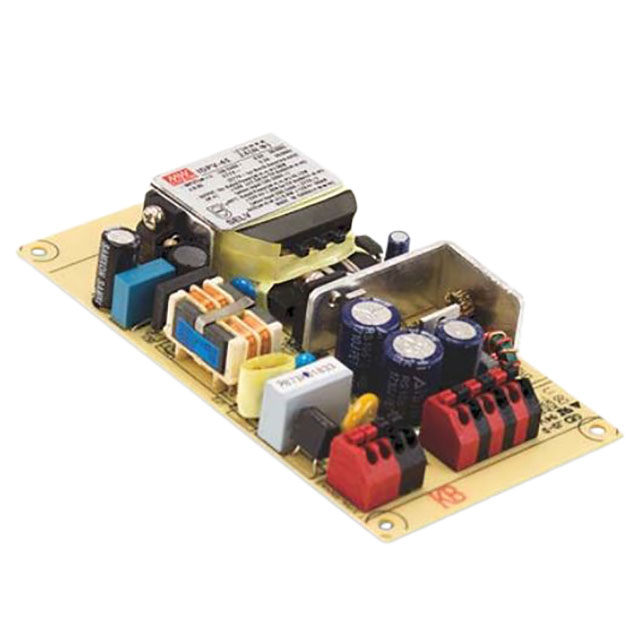

MEAN WELL USA Inc. IDPV-45-24	Chassis Mount	24 V	Analog PWM	OCP SCP	45 W	-20 ░C	40 °C	1	295 VAC	2.62 "	66.5 mm	22 mm	120 mm	0.87 in	4.72 "	86 %	AC DC Converter	90 VAC	CB CCC CE cURus ENEC	1.88 A	3750 VDC	Constant Voltage	Terminal Block
MEAN WELL USA Inc. IDPV-45A-24	Chassis Mount	24 V	Analog PWM	OCP SCP	45 W	-20 ░C	40 °C	1	295 VAC	2.62 "	66.5 mm	22 mm	120 mm	0.87 in	4.72 "	86 %	AC DC Converter	90 VAC	CB CCC CE cURus ENEC	1.88 A	3750 VDC	Constant Voltage	Terminal Block
MEAN WELL USA Inc. IDPV-45-12	Chassis Mount	12 V	Analog PWM	OCP SCP	36 W	-20 ░C	40 °C	1	295 VAC	2.62 "	66.5 mm	22 mm	120 mm	0.87 in	4.72 "	84 %	AC DC Converter	90 VAC	CB CCC CE cURus ENEC	3 A	3750 VDC	Constant Voltage	Terminal Block
MEAN WELL USA Inc. IDPV-45A-36
MEAN WELL USA Inc. IDPV-45A-12	Chassis Mount	12 V	Analog PWM	OCP SCP	36 W	-20 ░C	40 °C	1	295 VAC	2.62 "	66.5 mm	22 mm	120 mm	0.87 in	4.72 "	84 %	AC DC Converter	90 VAC	CB CCC CE cURus ENEC	3 A	3750 VDC	Constant Voltage	Terminal Block
MEAN WELL USA Inc. IDPV-45A-48
