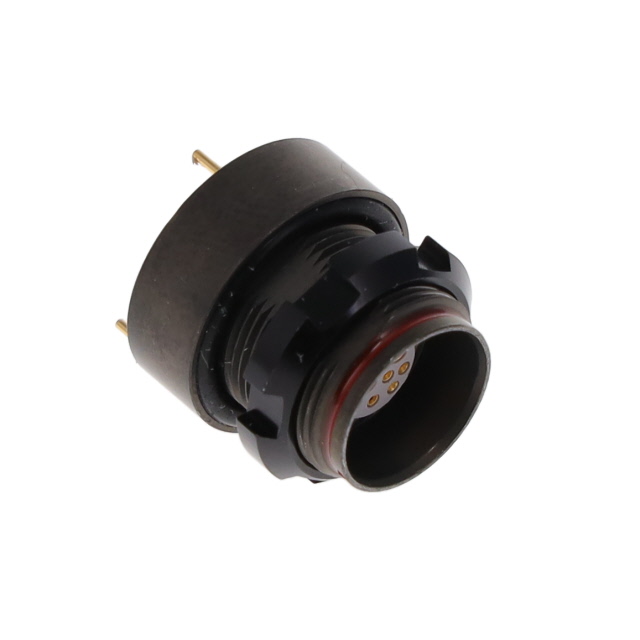

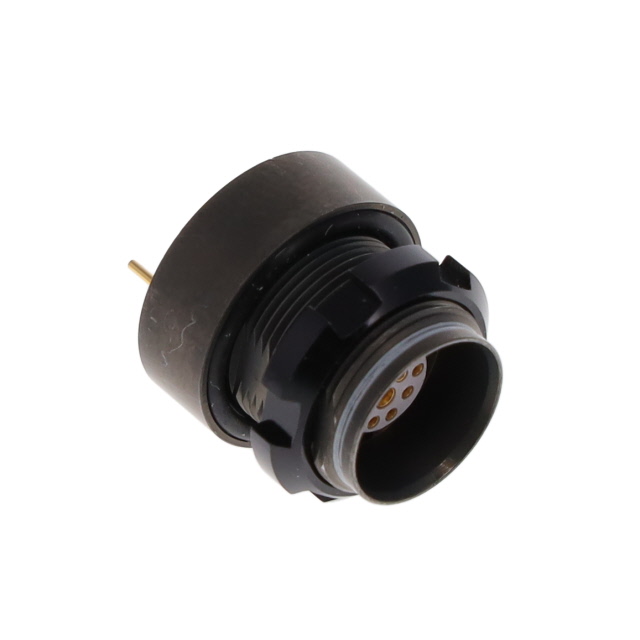

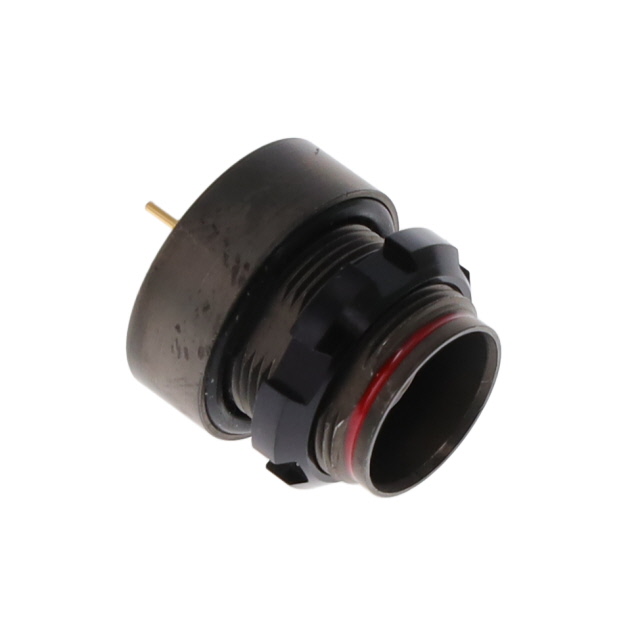

HDX-WGKM0 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
PUSH-PULL PCB RECEPTACLE
| Part | Insert Material | Contact Material | Current Rating (Amps) | Primary Material | Color | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shell Finish | Number of Positions | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Ingress Protection | Shielding | Contact Finish - Mating | Fastening Type | Connector Type | Termination | Mounting Feature | Shell Material | Voltage Rating | Number of Positions [custom] | Number of Positions [custom] | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | Polyetherimide (PEI) Glass Filled | Copper Alloy | 1 A 5 A | Metal | Silver | 12 | 0 | Ruthenium over Electroless Nickel | 12 | C | -51 °C | 125 °C | Panel Mount Through Hole | IPX8 IPX9K | Unshielded | Gold | Push-Pull | Receptacle Female Sockets | Solder | Bulkhead - Front Side Nut | Brass | 250 V | |||
ITT Cannon, LLC | Polyetherimide (PEI) Glass Filled | Copper Alloy | 1 A 5 A | Metal | Silver | Ruthenium over Electroless Nickel | C | -51 °C | 125 °C | Panel Mount | IPX8 IPX9K | Unshielded | Gold | Push-Pull | Receptacle Female Sockets | Bulkhead - Front Side Nut | Brass | 250 V | 3 | 6 | 0-09 | ||||
ITT Cannon, LLC | Polyetherimide (PEI) Glass Filled | Copper Alloy | 1 A 5 A | Metal | Silver | 16 | 0 | Ruthenium over Electroless Nickel | 16 | B | -51 °C | 125 °C | Panel Mount | IPX8 IPX9K | Unshielded | Gold | Push-Pull | Receptacle Female Sockets | Bulkhead - Front Side Nut | Brass | 250 V | ||||
 ITT Cannon, LLC | Polyetherimide (PEI) Glass Filled | Copper Alloy | 1 A 5 A | Metal | Silver | Ruthenium over Electroless Nickel | A | -51 °C | 125 °C | Panel Mount | IPX8 IPX9K | Unshielded | Gold | Push-Pull | Receptacle Female Sockets | Bulkhead - Front Side Nut | Brass | 250 V | 3 | 6 | 0-09 | ||||
ITT Cannon, LLC | Polyetherimide (PEI) Glass Filled | Copper Alloy | 1 A 5 A | Metal | Silver | 16 | 0 | Ruthenium over Electroless Nickel | 16 | A | -51 °C | 125 °C | Panel Mount | IPX8 IPX9K | Unshielded | Gold | Push-Pull | Receptacle Female Sockets | Bulkhead - Front Side Nut | Brass | 250 V | ||||
ITT Cannon, LLC | Polyetherimide (PEI) Glass Filled | Copper Alloy | 1 A 5 A | Metal | Silver | 12 | 0 | Ruthenium over Electroless Nickel | 12 | B | -51 °C | 125 °C | Panel Mount | IPX8 IPX9K | Unshielded | Gold | Push-Pull | Receptacle Female Sockets | Bulkhead - Front Side Nut | Brass | 250 V | ||||
 ITT Cannon, LLC | Polyetherimide (PEI) Glass Filled | Copper Alloy | 1 A 5 A | Metal | Silver | 12 | 0 | Ruthenium over Electroless Nickel | 12 | B | -51 °C | 125 °C | Panel Mount Through Hole | IPX8 IPX9K | Unshielded | Gold | Push-Pull | Receptacle Female Sockets | Solder | Bulkhead - Front Side Nut | Brass | 250 V | |||
ITT Cannon, LLC | Polyetherimide (PEI) Glass Filled | Copper Alloy | 1 A 5 A | Metal | Silver | Ruthenium over Electroless Nickel | B | -51 °C | 125 °C | Panel Mount | IPX8 IPX9K | Unshielded | Gold | Push-Pull | Receptacle Female Sockets | Bulkhead - Front Side Nut | Brass | 250 V | 3 | 6 | 0-09 | ||||
 ITT Cannon, LLC | Polyetherimide (PEI) Glass Filled | Copper Alloy | 1 A 5 A | Metal | Silver | Ruthenium over Electroless Nickel | B | -51 °C | 125 °C | Panel Mount Through Hole | IPX8 IPX9K | Unshielded | Gold | Push-Pull | Receptacle Female Sockets | Solder | Bulkhead - Front Side Nut | Brass | 250 V | 3 | 6 | 0-09 | |||
ITT Cannon, LLC | Polyetherimide (PEI) Glass Filled | Copper Alloy | 1 A 5 A | Metal | Silver | 12 | 0 | Ruthenium over Electroless Nickel | 12 | C | -51 °C | 125 °C | Panel Mount | IPX8 IPX9K | Unshielded | Gold | Push-Pull | Receptacle Female Sockets | Bulkhead - Front Side Nut | Brass | 250 V |
