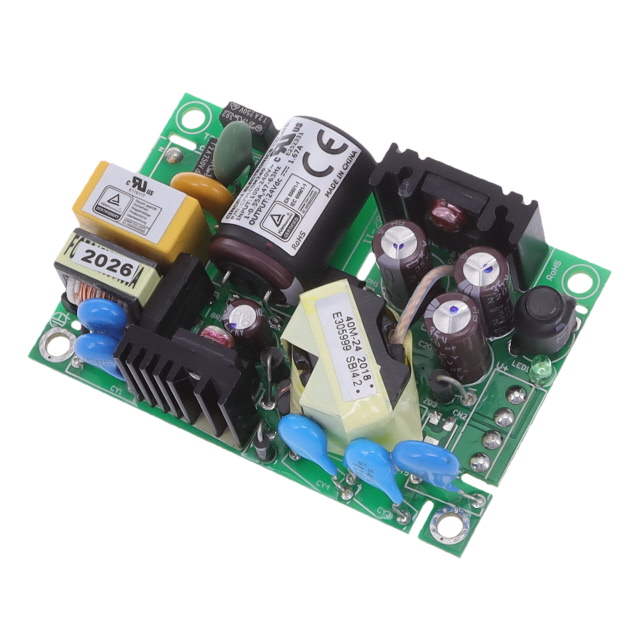

CFM40M240 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
AC/DC CONVERTER 24V 40W
| Part | Load Regulation | Line Regulation | Applications | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Features | Number of Outputs | Current - Output (Max) [Max] | Package / Case | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Standard Number | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Type | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | ±1% | 0.5 % | ITE (Commercial) Medical | 88 % | 264 VAC | 90 VAC | 24 V | Universal Input | 1 | 1.67 A | 6-DIP Module | 76.2 mm | 0.98 in | 3 " | 50.8 mm | 25 mm | 2 in | 60601-1 60950-1 | Through Hole | 70 °C | -20 °C | CE cURus FCC TUV | Open Frame | 40 W |
