1400 Series

Circuit Board Hardware - PCB MICRO JACK GOLD PLTD

Manufacturer: Keystone Electronics

Catalog

Circuit Board Hardware - PCB MICRO JACK GOLD PLTD

Catalog

Circuit Board Hardware - PCB MICRO JACK GOLD PLTD

Part	Length - Overall	Length - Overall	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Contact Material	Socket Depth	Socket Depth	Termination	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Terminal Style	Mounting Type	Terminal Type	Insulation	Board Thickness [z]	Board Thickness [z]	Length - Above Flange	Length - Above Flange	Pin Size - Above Flange [diameter]	Pin Size - Above Flange	Length - Below Flange [x]	Length - Below Flange [x]	Gender	Screw, Thread Size	Between Board Height	Between Board Height	Threaded/Unthreaded	Diameter - Outside	Diameter - Outside [custom]	Diameter - Outside	Material	Type	Plating	Length - Overall	Length - Overall	Length - Overall [x]	Length - Overall [x]	Diameter - Outside [diameter]	Height	Height	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Pitch	Pitch	Housing Material	Color	Length - Above Flange [x]	Length - Above Flange [x]	Board Thickness	Board Thickness

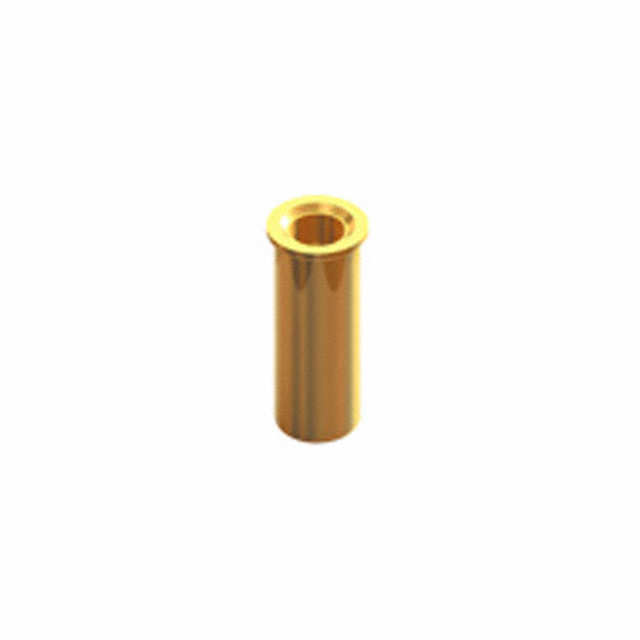

Keystone Electronics 1438	0.29 in	7.37 mm	200 Áin	5.08 Ám	No Tail	0.104 in	2.64 mm	Tin-Lead	Beryllium Copper	6.6 mm	0.26 "	Solder	0.04 in	1.27 mm	1.02 mm	0.05 in	3 mm	0.118 in

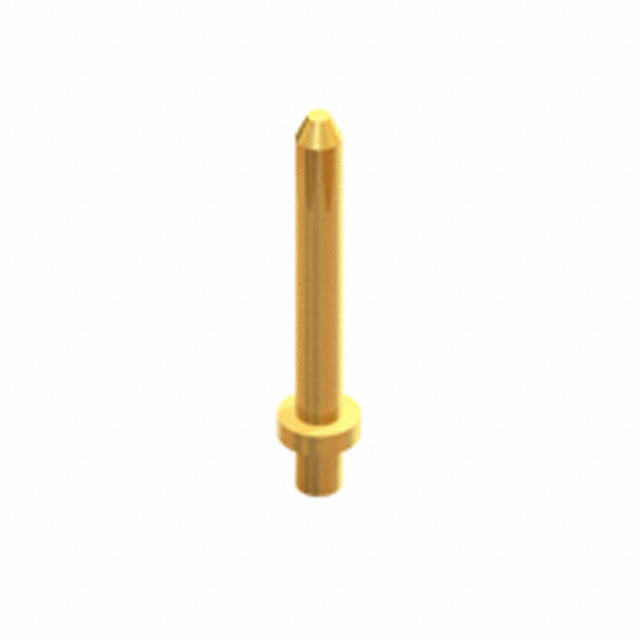

Keystone Electronics 1405-3	0.433 in	11 mm	10 Áin	0.25 Ám		0.043 in	1.09 mm	Gold	Brass			Swage					1.77 mm	0.07 in	Single End	Through Hole	PC Pin	Non-Insulated	0.093 in	2.36 mm	0.3 in	7.62 mm	0.04 in	1.02 mm	2.87 mm	0.113 "
Keystone Electronics 1452E		25.4 mm																													Female Female	#8-32	25.4 mm	1 in		9.53 mm	0.375 in	0.375 in	Brass	Hex Standoff	Zinc	1 "	1 "

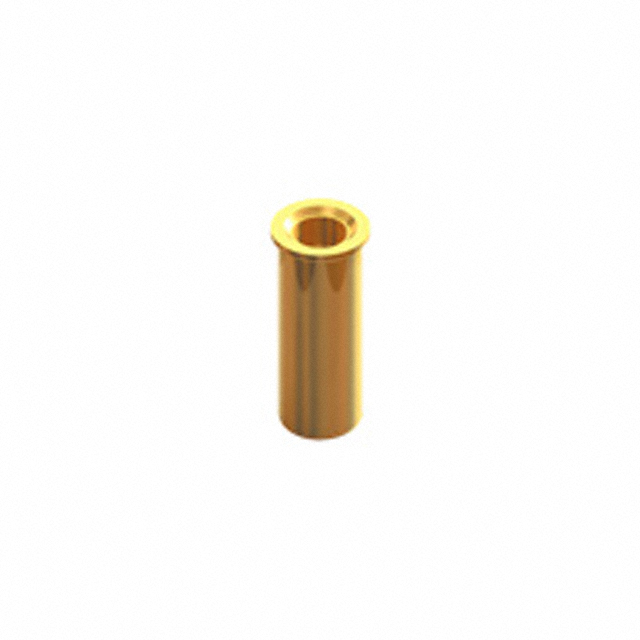

Keystone Electronics 1418	0.29 in	7.37 mm	10 Áin	0.25 Ám	No Tail	0.104 in	2.64 mm	Gold	Beryllium Copper	6.6 mm	0.26 "	Solder	0.04 in	1.27 mm	1.02 mm	0.05 in	3 mm	0.118 in

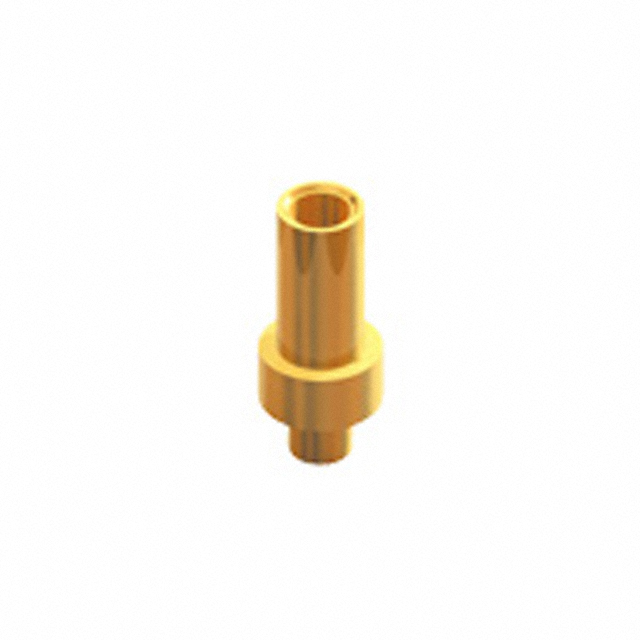

Keystone Electronics 1419-1			10 Áin	0.25 Ám	No Tail	0.069 in	1.75 mm	Gold	Beryllium Copper	5.08 mm	0.2 in	Swage	0.032 "	1.17 mm	0.81 mm	0.046 "	3.18 mm	0.125 in																										7.42 mm	0.292 in

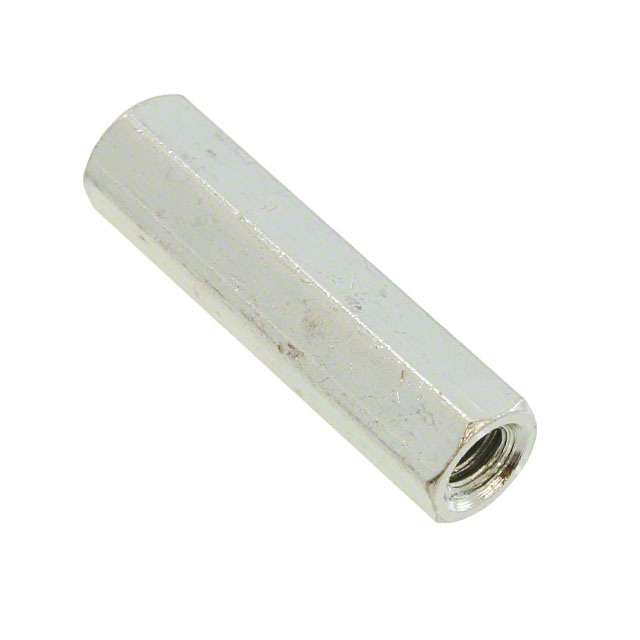

Keystone Electronics 1474E		25.4 mm																													Female Female	#8-32	25.4 mm	1 in		6.35 mm	0.25 inches		Brass	Hex Standoff	Zinc	1 "	1 "
Keystone Electronics 1475F		25.4 mm																													Female Female	#10-32	25.4 mm	1 in		7.95 mm	0.3125 in		Stainless Steel	Hex Standoff		1 "	1 "			0.313 "
Keystone Electronics 1460B								Gold																							Male Pins									Closed Top Grip							12.7 mm	0.5 in	1 x 2	2	5.08 mm	0.2 in	Polypropylene (PP)	Black

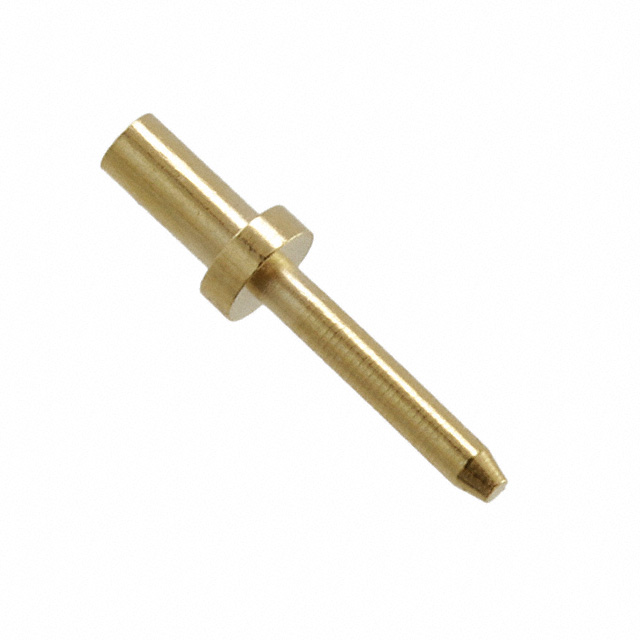

Keystone Electronics 1402-3			10 Áin	0.25 Ám		0.062 in	1.57 mm	Gold	Brass			Swage					2.36 mm	0.093 in	Single End	Through Hole	PC Pin	Non-Insulated	0.093 in	2.36 mm			0.04 in	1.02 mm	3.18 mm	0.125 "														10.03 mm	0.395 "										0.24 in	6.1 mm

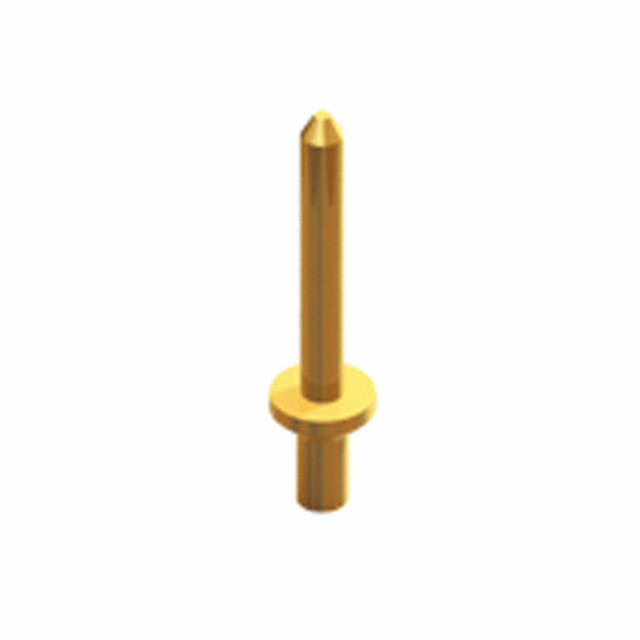

Keystone Electronics 1426-2	0.291 in	7.39 mm	200 Áin	5.08 Ám		0.035 in	0.89 mm	Tin	Brass			Swage					1.52 mm	0.06 in	Single End	Through Hole	PC Pin	Non-Insulated							1.98 mm	0.078 "																									0.188 in	4.78 mm	1.57 mm	0.062 "
