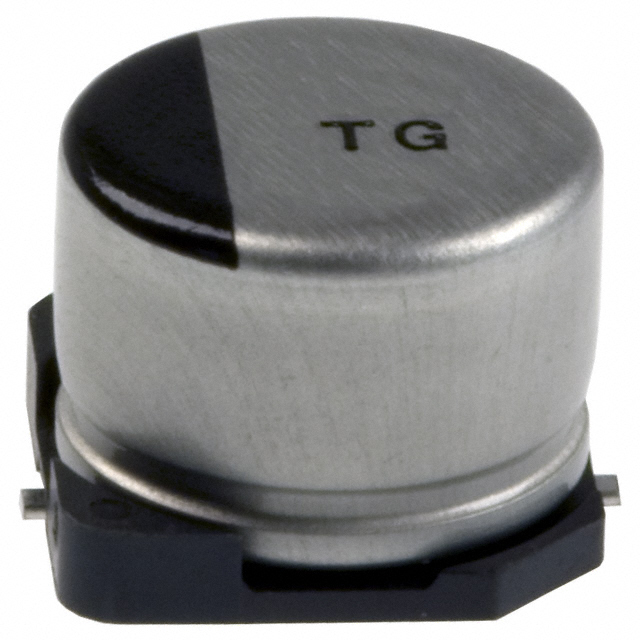

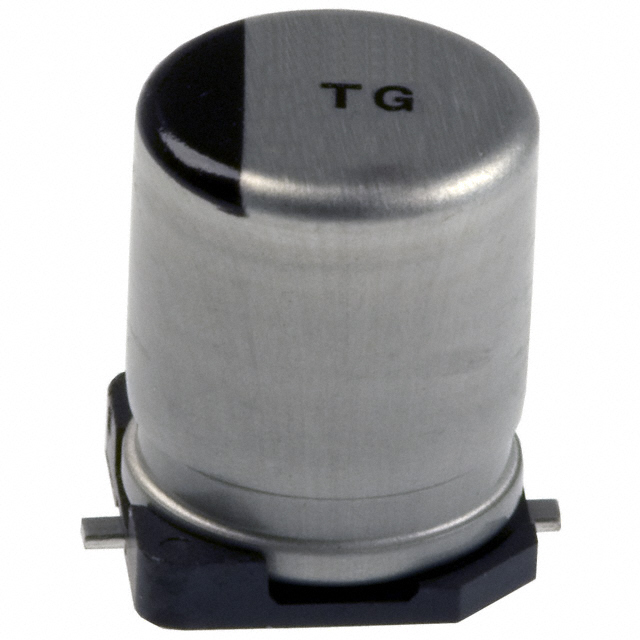

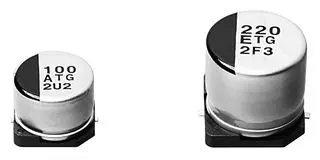

EEE-TG Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 330UF 20% 80V SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Capacitance	Voltage - Rated	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ Low Frequency	Mounting Type	Package / Case	ESR (Equivalent Series Resistance)	Applications	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Lifetime @ Temp.	Height - Seated (Max)	Ripple Current @ High Frequency
Panasonic Industrial Automation Sales EEE-TG1K331UM	125 °C	-40 °C	0.669 in	17 mm	17 mm	0.669 in	330 µF	80 V	AEC-Q200	16.5 mm	16.51 mm	227.5 mA	Surface Mount	Radial Can - SMD	300 mOhm	Automotive	Polar	0.63 in	16 mm	20 %	2000 Hrs
Panasonic Industrial Automation Sales EEE-TG1E471Q	125 °C	-40 °C	0.531 in	13.5 mm	13.5 mm	0.531 in	470 µF	25 VDC	AEC-Q200		0.531 "	520 mA	Surface Mount	Radial Can - SMD	120 mOhm	Automotive	Polar	0.492 in	12.5 mm	20 %	1000 Hrs	13.5 mm
Panasonic Industrial Automation Sales EEE-TG1C222UM	125 °C	-40 °C	0.669 in	17 mm	17 mm	0.669 in	2200 µF	16 V	AEC-Q200	16.5 mm	16.51 mm	715 mA	Surface Mount	Radial Can - SMD	80 mOhm	Automotive	Polar	0.63 in	16 mm	20 %	2000 Hrs
Panasonic Industrial Automation Sales EEE-TG1J220P	125 °C	-40 °C	0.327 "	8.3 mm	8.3 mm	0.327 in	22 µF	63 V	AEC-Q200	10.2 mm	0.402 "	65 mA	Surface Mount	Radial Can - SMD	1 Ohm	Automotive	Polar	0.315 "	8 mm	20 %	2000 Hrs		100 mA
Panasonic Industrial Automation Sales EEE-TG1H330P	125 °C	-40 °C	0.327 "	8.3 mm	8.3 mm	0.327 in	33 ÁF	50 VDC	AEC-Q200	10.2 mm	0.402 "	86.45 mA	Surface Mount	Radial Can - SMD	750 mOhm	Automotive	Polar	0.315 "	8 mm	20 %	2000 Hrs		133 mA
Panasonic Industrial Automation Sales EEE-TG1H681M	125 °C	-40 °C	0.748 in	19 mm	19 mm	0.748 in	680 µF	50 VDC	AEC-Q200	16.5 mm	16.51 mm	617.5 mA	Surface Mount	Radial Can - SMD	140 mOhm	Automotive	Polar	0.709 "	18 mm	20 %	2000 Hrs
Panasonic Industrial Automation Sales EEE-TG1A221UP	125 °C	-40 °C	0.327 "	8.3 mm	8.3 mm	0.327 in	220 µF	10 V	AEC-Q200	6.2 mm	0.244 in	65 mA	Surface Mount	Radial Can - SMD	1 Ohm	Automotive	Polar	0.315 "	8 mm	20 %	1000 Hrs		100 mA
Panasonic Industrial Automation Sales EEE-TG1E102UM	125 °C	-40 °C	0.669 in	17 mm	17 mm	0.669 in	1000 µF	25 VDC	AEC-Q200	16.5 mm	16.51 mm	715 mA	Surface Mount	Radial Can - SMD	80 mOhm	Automotive	Polar	0.63 in	16 mm	20 %	2000 Hrs
Panasonic Industrial Automation Sales EEE-TG1E331UP	125 °C	-40 °C	0.406 in	10.3 mm	10.3 mm	0.406 "	330 µF	25 VDC	AEC-Q200	10.2 mm	0.402 "	175.5 mA	Surface Mount	Radial Can - SMD	300 mOhm	Automotive	Polar	0.394 in	10 mm	20 %	2000 Hrs		270 mA
Panasonic Industrial Automation Sales EEE-TG1V471UQ	125 °C	-40 °C	0.531 in	13.5 mm	13.5 mm	0.531 in	470 µF	35 V	AEC-Q200		0.531 "	520 mA	Surface Mount	Radial Can - SMD	120 mOhm	Automotive	Polar	0.492 in	12.5 mm	20 %	1000 Hrs	13.5 mm
