STL2E4 Series

Catalog

TOGGLE SWITCH, IP68, (ON)-OFF-(ON), DPDT, NON ILLUMINATED, ST SERIES, PANEL MOUNT, 16 A

Part	Actuator Type	Voltage Rating - DC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Panel Cutout Dimensions [diameter]	Ingress Protection	Actuator Material	Current Rating (Amps)	Illumination	Termination Style	Mounting Type	Actuator Length [x]

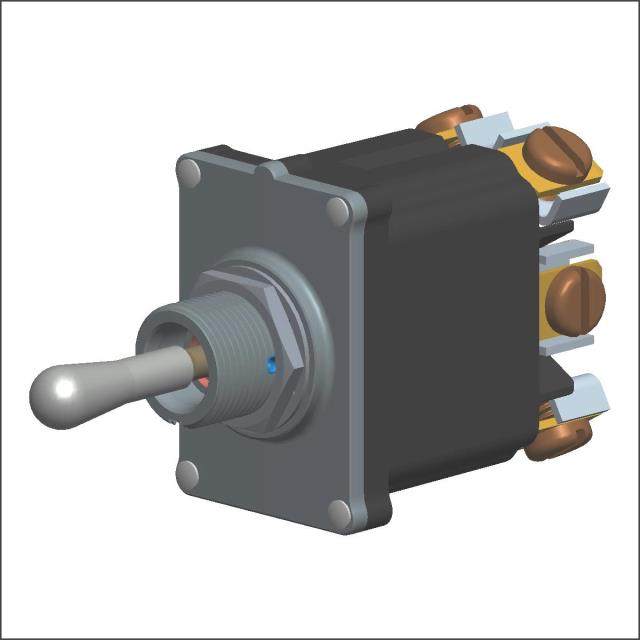

Carling Technologies STL2E4-53	Standard Round	24 V	DPDT	85 °C	-40 C	Mom-Off-Mom	12.7 mm	IP68 - Dust Tight Waterproof	Brass	16 A	Non-Illuminated	Screw Terminal	Panel Mount	14.25 mm
Carling Technologies STL2E4-53/HDW ASSM	Standard Round	24 V	DPDT	85 °C	-40 C	Mom-Off-Mom	12.7 mm	IP68 - Dust Tight Waterproof	Brass	16 A	Non-Illuminated	Screw Terminal	Panel Mount	14.25 mm
Carling Technologies STL2E4-58	Standard Round	24 V	DPDT	85 °C	-40 C	Mom-Off-Mom	12.7 mm	IP68 - Dust Tight Waterproof	Brass	16 A	Non-Illuminated	Screw Terminal	Panel Mount	14.25 mm
